MAGNETO (E4, E18, E39)
RV50 1983 (D) (E01)

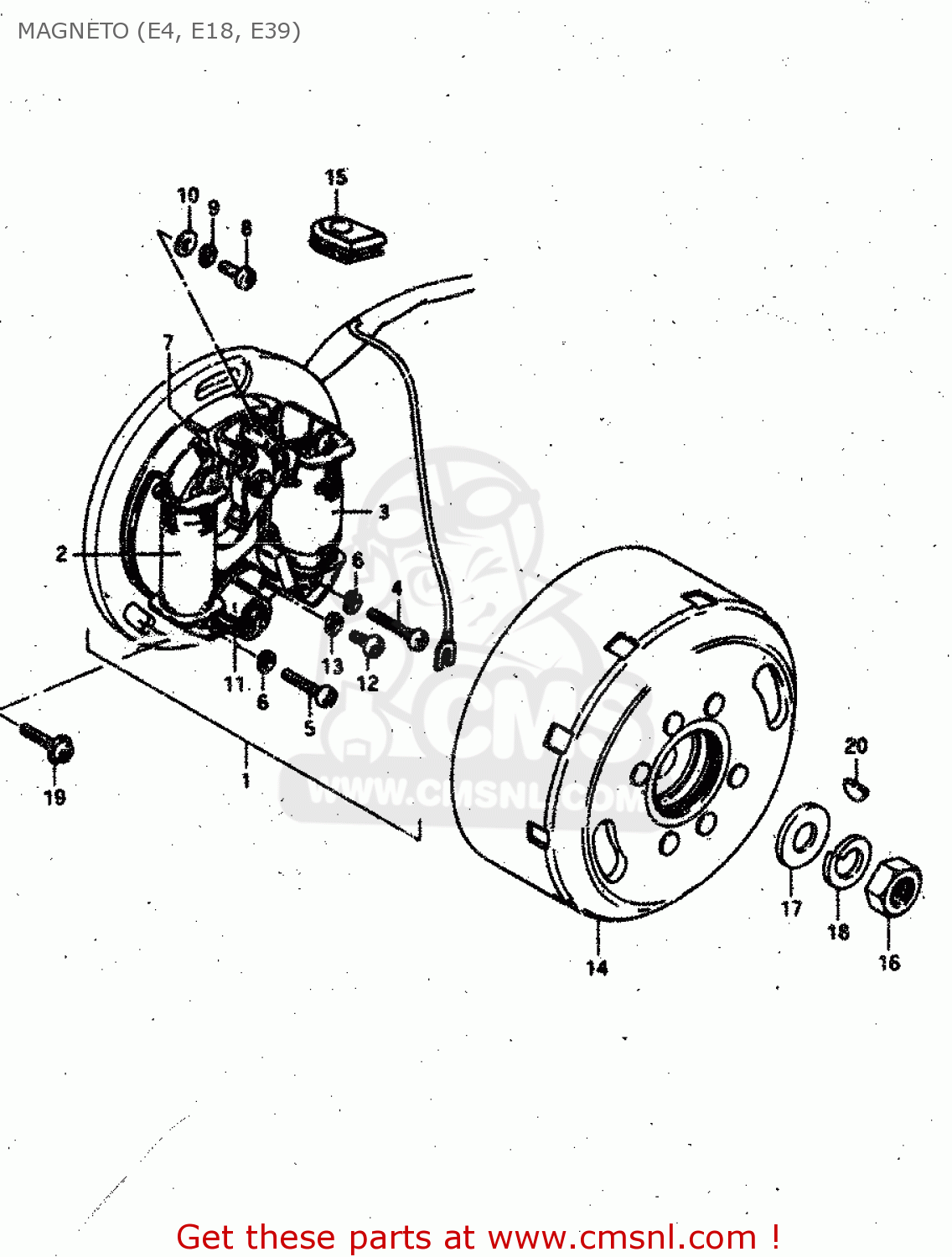

Magneto (e4, e18, e39) diagram RV50 1983 (D) (E01)
MAGNETO (E4, E18, E39) RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3210148630
ref: 1
STATOR ASSY
€ 172.50
2
3214046520
ref: 2
COIL, PRIMARY
€ 41.00
3
3212048630
ref: 3
COIL, LIGHTING
€ 41.00
4
0211204258
ref: 4
SCREW 4X25
€ 2.00
5
0211204208
ref: 5
SCREW
€ 1.00
6
0832121048
ref: 6
LOCK WASHER
€ 2.00
7
3224003120
ref: 7
POINT ASSY,CONTACT
€ 40.00
8
0912504001
ref: 8
SCREW(4X10)
€ 4.50
9
0832121048
ref: 9
LOCK WASHER
€ 2.00
10
0832221048
ref: 10
WASHER
€ 2.00
11
3234122020
ref: 11
CONDENSER
€ 24.50
12
0211205088
ref: 12
SCREW
€ 2.00
13
0832121058
ref: 13
LOCK WASHER
€ 2.00
14
3210248630
ref: 14
ROTOR
€ 174.00
15
0930909007
ref: 15
GROMMET
€ 2.50
16
0914010003
ref: 16
NUT (10MM)
€ 3.50
17
0832221108
ref: 17
WASHER
€ 2.50
18
0832121108
ref: 18
LOCK WASHER
€ 2.00
19
0913905011
ref: 19
SCREW(5X14)
€ 3.00
20
0834131039
ref: 20
KEY
€ 2.00
