REAR SWINGING ARM (E22, E39)
RV50 1983 (D) (E01)

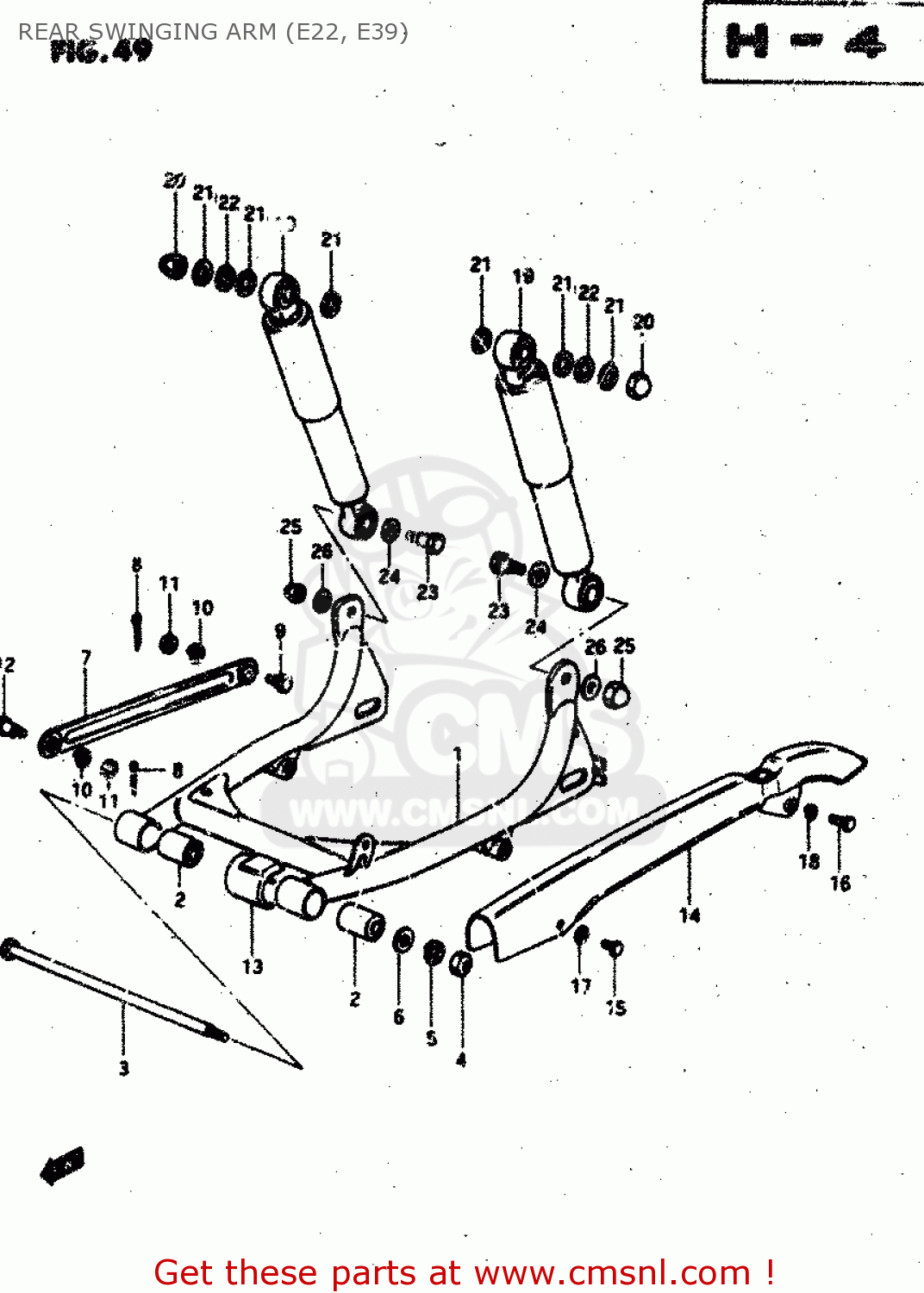

Rear swinging arm (e22, e39) diagram RV50 1983 (D) (E01)
REAR SWINGING ARM (E22, E39) RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
611002788100N
ref: 1-1
MODEL X
SWINGING ARM SET, REAR
€ 0.00
1-2
611002788105E
ref: 1-2
MODEL X E22
SWINGING ARM SET, REAR
€ 0.00
1-3
611002788104Y
ref: 1-3
MODEL X
SWINGING ARM SET, REAR
€ 0.00
1-4
6110027881163
ref: 1-4
MODEL X
SWINGING ARM SET, REAR
€ 0.00
1-5
611002788110G
ref: 1-5
MODEL X E39
SWINGING ARM SET, REAR
€ 0.00
1-6
611002788104Y
ref: 1-6
MODEL X
SWINGING ARM SET, REAR
€ 0.00
1-7
610002761205H
ref: 1-7
MODEL D
SWINGING ARM SET, REAR
€ 0.00
1-8
610002761214C
ref: 1-8
MODEL D
SWINGING ARM SET, REAR
€ 0.00
2
0931910009
ref: 2
BUSHING(10X23X35)
€ 7.50
3
6121120001
ref: 3
SHAFT,REAR SWING ARM
€ 11.00
4
0914010012
ref: 4
NUT
€ 2.50
5
0832121108
ref: 5
LOCK WASHER
€ 2.00
6
0916010028
ref: 6
WASHER
€ 2.00
7
6431021200
ref: 7
LINK,RR BRAKE TORQUE
€ 14.00
8-1
0411120158
ref: 8-1
MODEL X
PIN
€ 1.50
8-2
0411120208
ref: 8-2
MODEL D
PIN 20X20
€ 1.50
9
0911108013
ref: 9
BOLT(8X26.5)
€ 3.00
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0914008008
ref: 11
NUT
€ 1.50
12
0911108012
ref: 12
BOLT(8X22.5)
€ 3.00
13
6127327001
ref: 13
BUFFER,CHAIN TOUCH DEFENSE
€ 8.00
14
6131027620
ref: 14
CHAIN CASE
€ 38.00
15
0910006005
ref: 15
BOLT(6X6)
€ 2.00
16
0110706128
ref: 16
BOLT
€ 2.00
17
0832221068
ref: 17
WASHER
€ 2.00
18
0832121068
ref: 18
LOCK WASHER
€ 2.50
19-1
621002492100N
ref: 19-1
MODEL X
SHOCK ABSORBER ASSY
€ 145.00
19-2
621002492105E
ref: 19-2
MODEL X E22
SHOCK ABSORBER ASSY
€ 0.00
19-3
621002492104Y
ref: 19-3
MODEL X
SHOCK ABSORBER ASSY
€ 0.00
19-4
6210024921163
ref: 19-4
MODEL X
SHOCK ABSORBER ASSY
€ 0.00
19-5
621002492110G
ref: 19-5
MODEL X E39
SHOCK ABSORBER ASSY
€ 0.00
19-6
621002492104Y
ref: 19-6
MODEL X
SHOCK ABSORBER ASSY
€ 0.00
19-7
621002492105H
ref: 19-7
MODEL D
SHOCK ABSORBER ASSY
€ 112.50
19-8
621002492114C
ref: 19-8
MODEL D
SHOCK ABSORBER ASSY
€ 112.50
20
0831311108
ref: 20
NUT, LOWER LH
€ 2.50
21
0916010001
ref: 21
WASHER
€ 2.00
22
0916010033
ref: 22
WASHER(10.5X24X3.2)
€ 2.00
23
0911110008
ref: 23
BOLT
€ 5.50
24
0832211128
ref: 24
WASHER
€ 2.00
25
0831311108
ref: 25
NUT, LOWER LH
€ 2.50
26
0832221108
ref: 26
WASHER
€ 2.50
