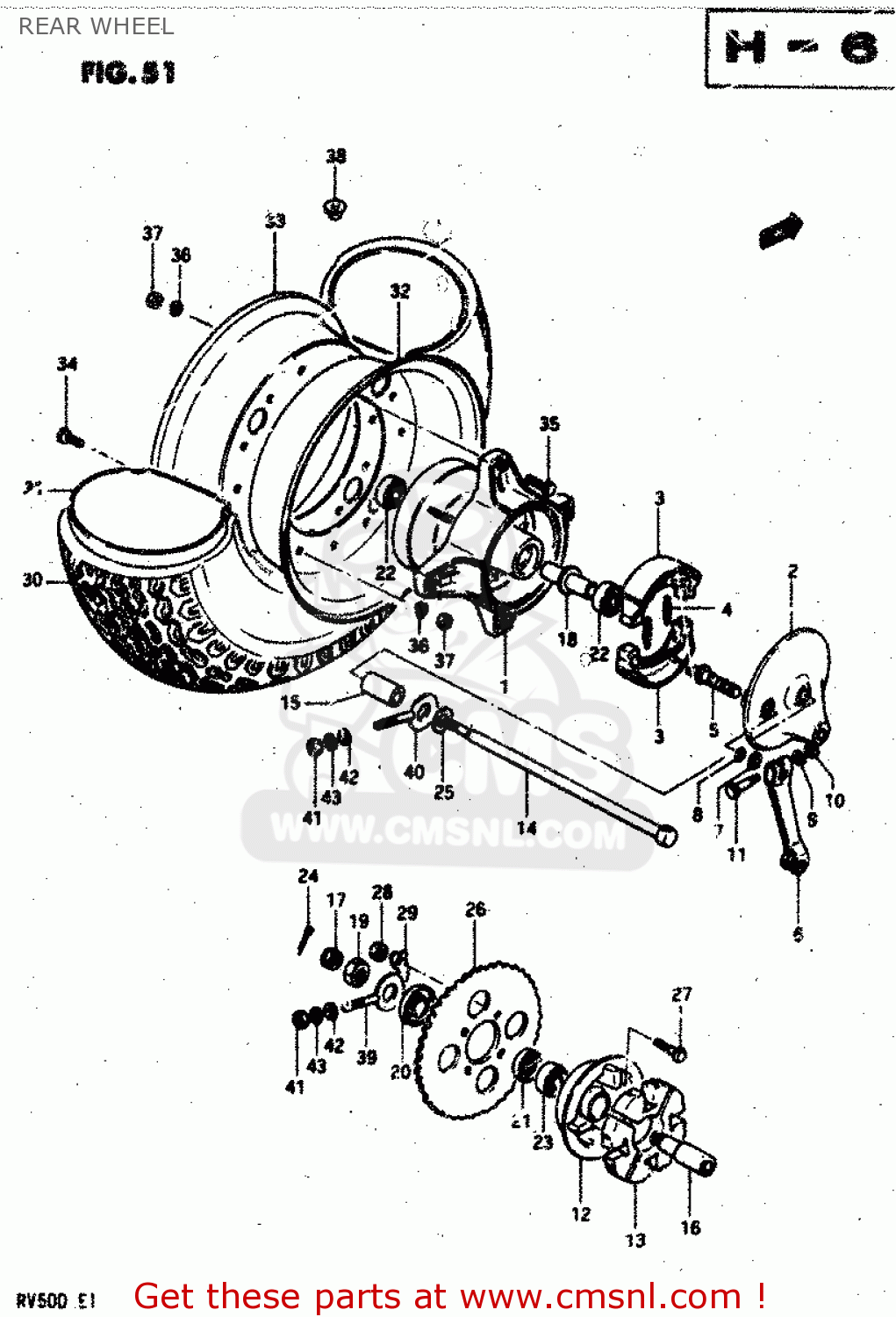

REAR WHEEL

ref

part #

description

quantity

1

6411027101
ref: 1

DRUM,REAR HUB

€ 212.00

2

6421046400
ref: 2

PANEL,REAR BRAKE ANCHOR

€ 68.50

3

5441001010
ref: 3

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444101002
ref: 5

CAM,FR BRAKE

€ 19.50

6

6445127201
ref: 6

LEVER,REAR BRAKE CAM

€ 12.50

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8

0928012001
ref: 8

O RING(D:2.5,ID:11.4)

€ 2.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006050
ref: 11

BOLT

€ 1.50

12

6461101001
ref: 12

DRUM,REAR SPROCKET MOUNT

€ 56.50

13

6465101001
ref: 13

CUSHION,REAR DRUM

€ 9.00

14

6471127100
ref: 14

AXLE,RR

€ 39.50

15

0918012046
ref: 15

SPACER (12.2X22X37.7)

€ 6.00

16

6476127100
ref: 16

SHAFT,RR SPROCKET DRUM

€ 25.00

17-1

0831431108
ref: 17-1

NUT

€ 1.50

17-2

0915910011
ref: 17-2
E22

NUT

€ 3.00

18

6473027100
ref: 18

SPACER,REAR HUB BEARING

€ 19.50

19

0914016005
ref: 19

NUT

€ 4.50

20

6462027100
ref: 20

SPACER,REAR SPROCKET DRUM

€ 9.50

21

0928525001
ref: 21

SEAL OIL(25X40X6)

€ 12.50

22

0814362017
ref: 22

BEARING

€ 11.50

23

0926217008
ref: 23

BEARING

€ 14.00

24

0411120308
ref: 24

COTTER PIN

€ 1.00

25

0832211128
ref: 25

WASHER

€ 2.00

26-1

6451127750
ref: 26-1

SPROCKET,RR(NT:32)

€ 40.00

26-2

6451127600
ref: 26-2
E19,E39

SPROCKET,RR

€ 24.50

26-3

6451101729
ref: 26-3
E22

SPROCKET,RR(NT:36)

€ 55.00

27

0910508001
ref: 27

BOLT(8X33.5)

€ 2.50

28

0831012088
ref: 28

NUT

€ 2.00

29

0916908011
ref: 29

WASHER

€ 2.50

30-1

5510027230
ref: 30-1
BS

TIRE(5.40 10)

€ 160.50

30-2

6510027610
ref: 30-2
BS E22,E39,E41

TIRE (5.40-10)

€ 212.50

31

5520027230
ref: 31

TUBE,INNER

€ 59.50

32

5531227201126
ref: 32

RIM,WHEEL,R

€ 50.00

33

5531327100126
ref: 33

RIM,WHEEL,OUTER

€ 120.50

34

0110708168
ref: 34

BOLT

€ 2.00

35

0110708258
ref: 35

BOLT

€ 2.50

36

0832131088
ref: 36

WASHER,LOCK,8.

€ 2.00

37

0831012088
ref: 37

NUT

€ 2.00

38

0930508006
ref: 38

BUSHING

€ 2.00

39

6141101002
ref: 39

ADJUSTER,CHAIN,R

€ 6.00

40

6142101002
ref: 40

PLATE,CHAIN ADJUSTER

€ 6.50

41

0831011068
ref: 41

NUT

€ 2.50

42

0832221068
ref: 42

WASHER

€ 2.00

43

0832121068
ref: 43

LOCK WASHER

€ 2.50

all assemblies
