HEADLAMP (E22)
RV50 1983 (D) (E01)

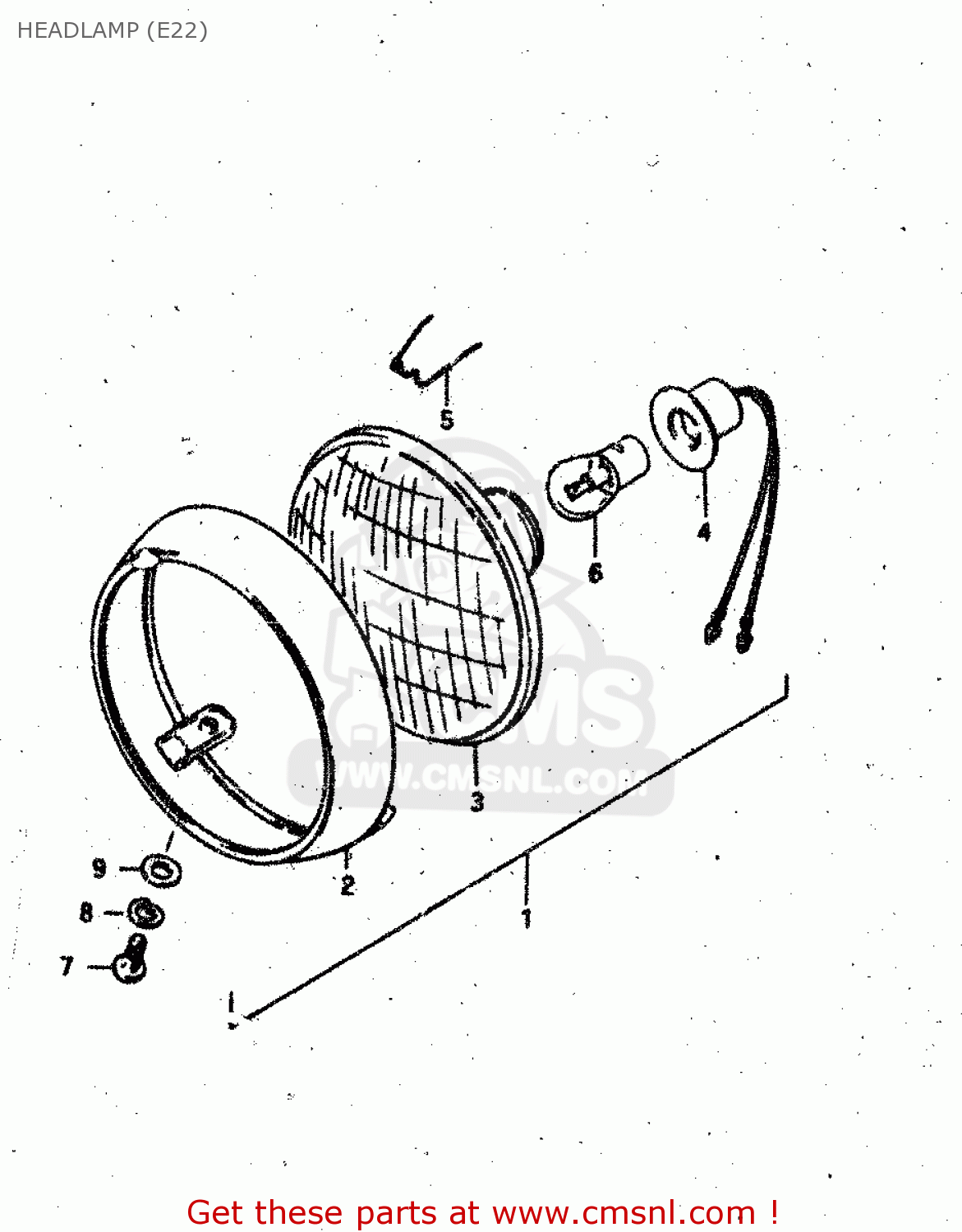

Headlamp (e22) diagram RV50 1983 (D) (E01)
HEADLAMP (E22) RV50 1983 (D) (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3510027660999
ref: 1
HEADLAMP ASSY
€ 124.00
2
3511127660
ref: 2
RIM
€ 33.50
3
3512127660
ref: 3
UNIT
€ 62.00
4
3517127660
ref: 4
SOCKET
€ 14.00
5
3512827660
ref: 5
SPRING
€ 3.00
6
0947106035
ref: 6
EXECUTED LOCALLY
BULB (6V,15W)
€ 0.00
7
0211204128
ref: 7
SCREW
€ 1.50
8
0832121048
ref: 8
LOCK WASHER
€ 2.00
9
0832221048
ref: 9
WASHER
€ 2.00
