TURN SIGNAL LAMP

RV50 1983 (D) (E01)

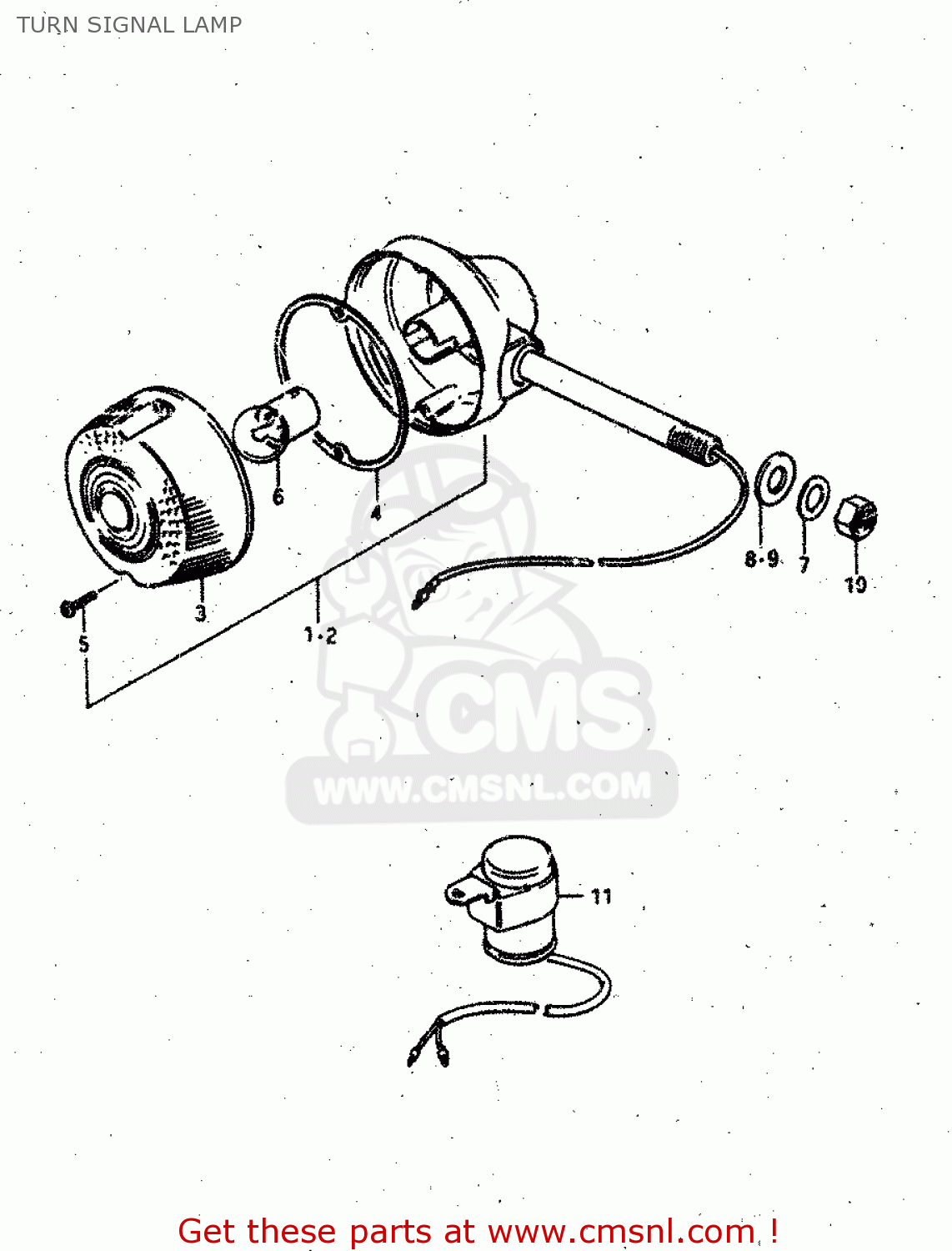

Turn signal lamp diagram RV50 1983 (D) (E01)

TURN SIGNAL LAMP RV50 1983 (D) (E01)

TURN SIGNAL LAMP RV50 1983 (D) (E01)

prices are in EUR

ref

part #

description

quantity

1-1

3560127200999
ref: 1-1

LAMP, FRONT TURN SIGNAL

€ 47.50

1-2

3560127260
ref: 1-2
E19

LAMP, FRONT TURN SIGNAL

€ 0.00

2

3560327200999
ref: 2

LAMP ASSY,RR TURNSIGNAL

€ 37.00

3

3561246210
ref: 3

LENS

€ 6.00

4

3561306111
ref: 4

GASKET (NAS)

€ 5.00

5

0321103168
ref: 5
FROM 35623-35600

SCREW

€ 1.50

6

0947106021
ref: 6

BULB(6V8W,STANLEY,A4115)

€ 3.50

7

0832221108
ref: 7

WASHER

€ 2.50

8

0916010033
ref: 8

WASHER(10.5X24X3.2)

€ 2.00

9

0916010037
ref: 9

WASHER (10.5X22X2.3)

€ 2.50

10

0831022108
ref: 10

NUT

€ 2.50

11

3861026021
ref: 11

RELAY, TURN SIGNAL

€ 63.50
