AIR CLEANER

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

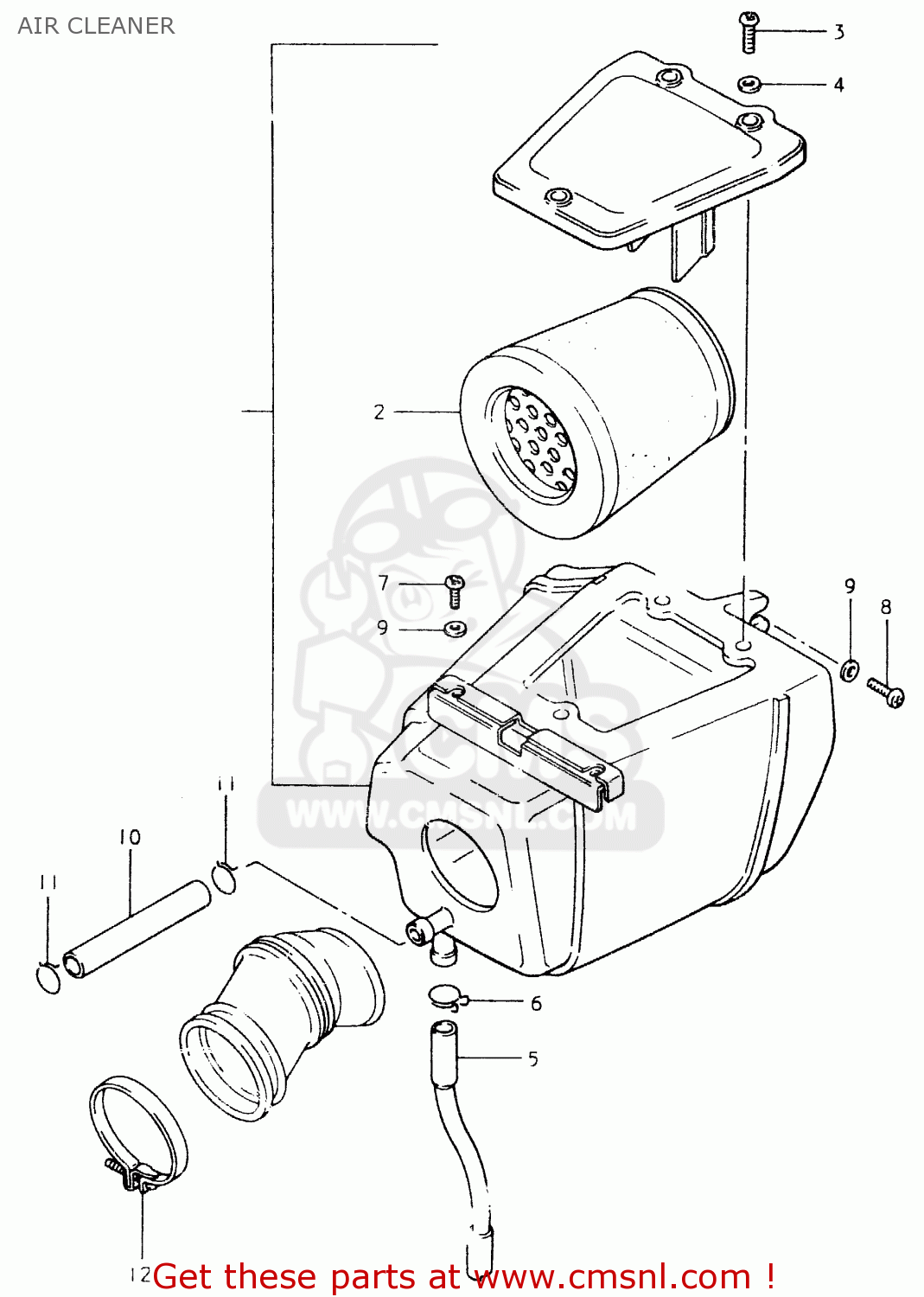

Air cleaner diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

1370032430
ref: 1

CLEANER ASSEMBLY,AIR

€ 0.00

1378032420
ref: 2

FILTER,AIR CLEANER

€ 13.00

0211205128
ref: 3

SCREW

€ 2.50

0832221058
ref: 4

WASHER

€ 2.50

1387000040
ref: 5

DRAIN TUBE

€ 0.00

1387932420
ref: 6

CLAMP

€ 0.00

0211206128
ref: 7

SCREW 6X12

€ 2.00

0211206168
ref: 8

SCREW

€ 2.50

0832221068
ref: 9

WASHER

€ 2.00

0934311010
ref: 10

HOSE

€ 6.50

0940114301
ref: 11

CLIP

€ 2.00

0940264306
ref: 12

CLAMP

€ 6.00
