HEADLAMP (E2)

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

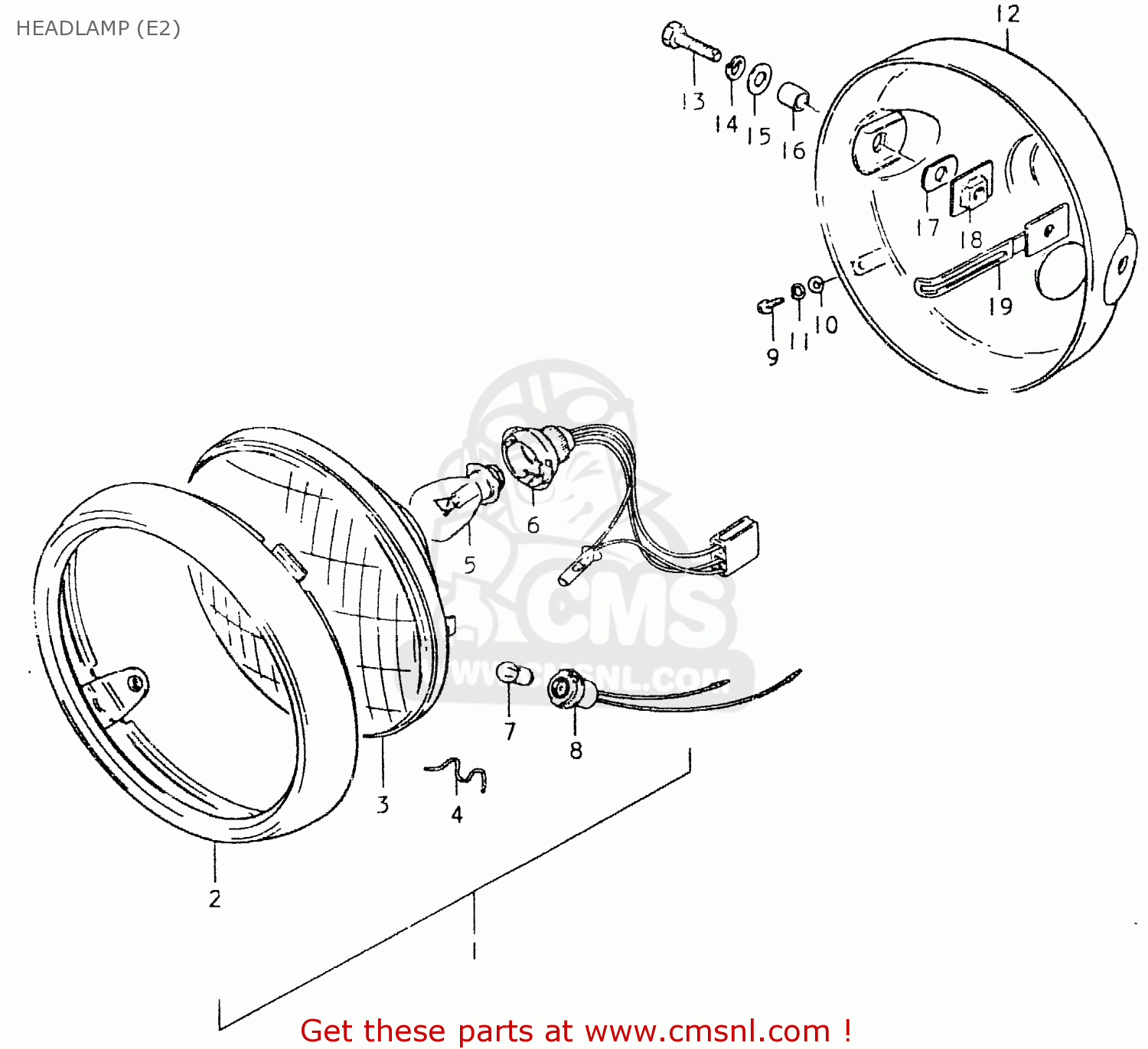

Headlamp (e2) diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

3510037120
ref: 1

HEADLAMP ASSY

€ 71.50

3511126440
ref: 2

RIM

€ 46.50

3512132440
ref: 3

UNIT

€ 55.00

3517233630
ref: 4

SPRING

€ 4.00

0947106043
ref: 5

BULB(6V,35/35W)

€ 7.00

3517132440
ref: 6

SOCKET

€ 34.50

0947106002
ref: 7

BULB(6V/3W)

€ 2.50

3611830500
ref: 8

SOCKET

€ 10.00

0211204128
ref: 9

SCREW

€ 1.50

0832221048
ref: 10

WASHER

€ 2.00

0832121048
ref: 11

LOCK WASHER

€ 2.00

5181129303291
ref: 12

HOUSING,HEADLAMP

€ 43.00

0120408257
ref: 13

BOLT

€ 2.00

0832121088
ref: 14

LOCK WASHER

€ 2.00

0832211088
ref: 15

WASHER

€ 2.00

0918008030
ref: 16

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 17

CUSHION

€ 3.00

5186045000
ref: 18

PLATE,HEADLAMP HOUSING

€ 2.00

5182045000
ref: 19

PLATE,HEADLAMP HOUSING

€ 4.00
