FRAME

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

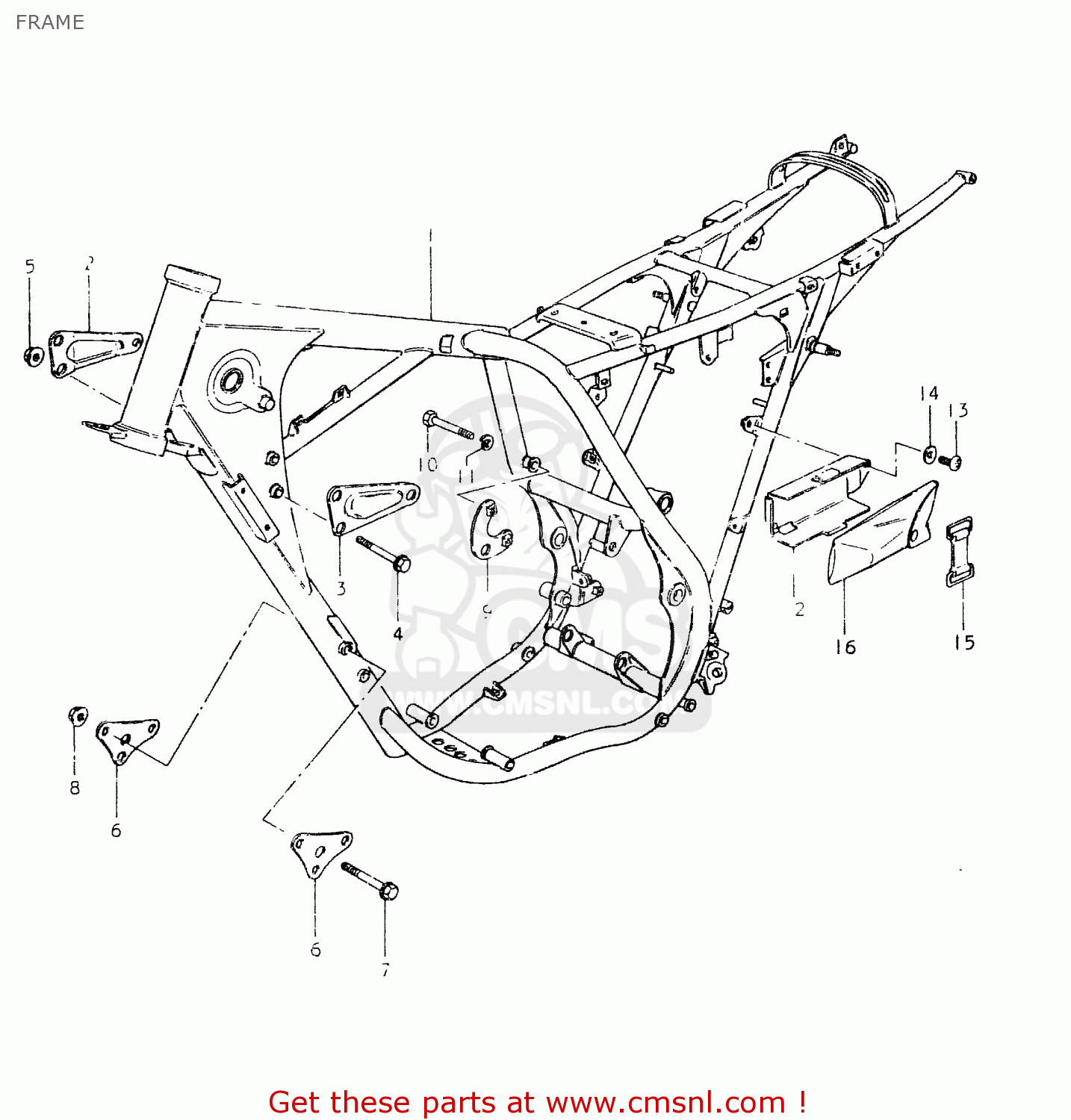

Frame diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

4110032402019
ref: 1

FRAME

€ 0.00

4110037110019
ref: 1
E15,E17

FRAME (BLACK)

€ 0.00

4110037130019
ref: 1
E16

FRAME (BLACK)

€ 0.00

4110037140019
ref: 1
E34

FRAME (BLACK)

€ 0.00

4191037100
ref: 2

PLATE COMP,ENGINE MOUNTING

€ 0.00

4199232401
ref: 3

PLATE,ENGINE MOUNTING

€ 0.00

0151706708
ref: 4

BOLT (6X70)

€ 3.00

0831931068
ref: 5

NUT

€ 2.50

4199332400
ref: 6

PLATE,ENGINE MOUNTING

€ 6.50

0151708708
ref: 7

BOLT (8X70)

€ 2.00

0831931088
ref: 8

NUT

€ 2.50

4199032400
ref: 9

PLATE,ENGINE MOUNTING

€ 0.00

0110708608
ref: 10

BOLT

€ 2.50

0832121088
ref: 11

LOCK WASHER

€ 2.00

4155032400
ref: 12

HOLDER,TOOL

€ 0.00

0211206108
ref: 13

SCREW

€ 1.50

0832211068
ref: 14

WASHER 6MM

€ 2.00

0946200017
ref: 15

BAND

€ 13.50

0980000185
ref: 16
*

TOOL SET

€ 43.50
