HEADLAMP (E4)

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

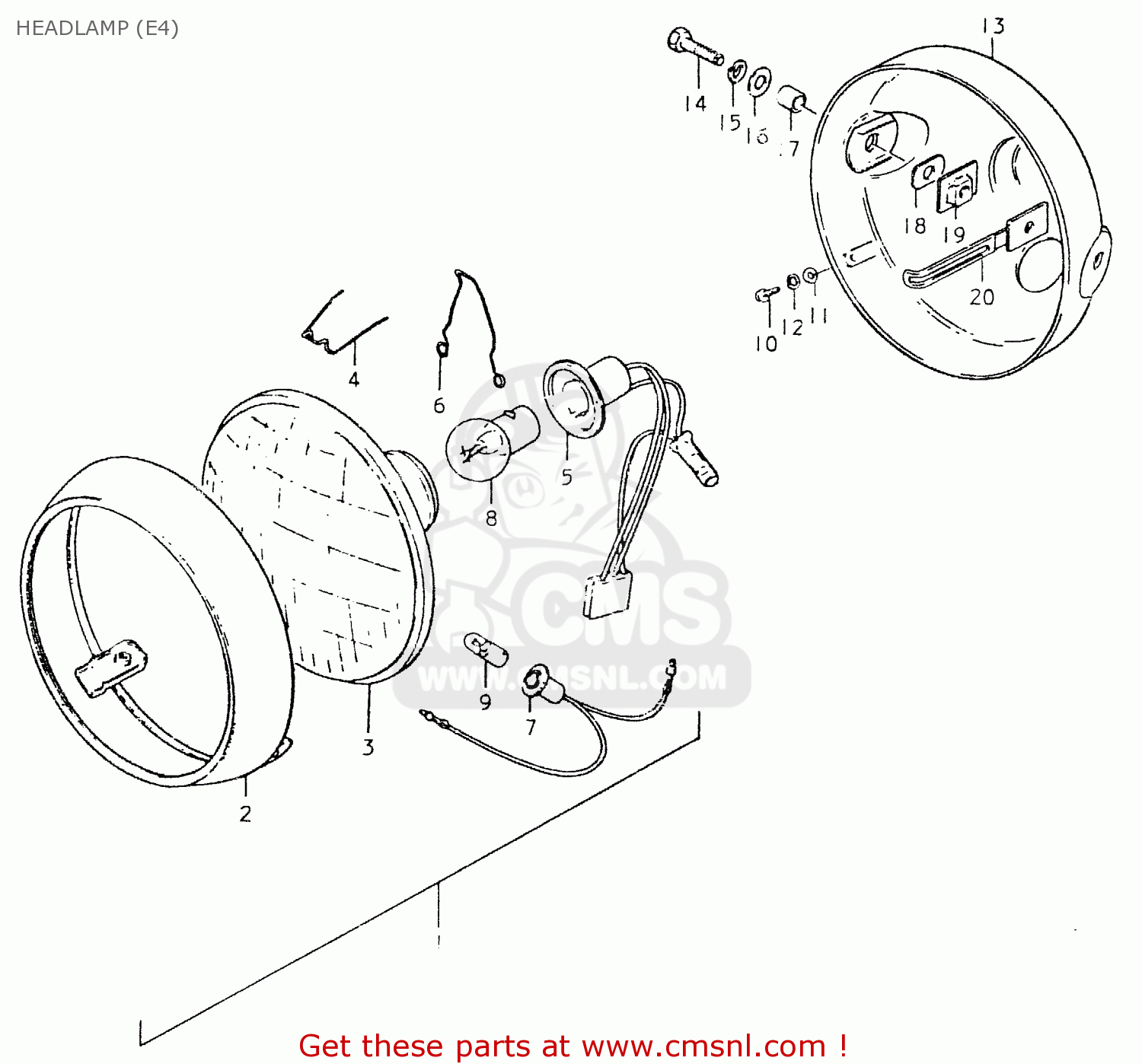

Headlamp (e4) diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

3510037140999
ref: 1

HEADLAMP ASSY

€ 0.00

3511126440
ref: 2

RIM

€ 46.50

3512132430
ref: 3

UNIT

€ 0.00

3517233630
ref: 4

SPRING

€ 4.00

3517136640
ref: 5

SOCKET

€ 0.00

3517228660
ref: 6

CLAMP,HEADLAMP

€ 7.00

3611828660
ref: 7

SOCKET

€ 11.50

0947106045
ref: 8
EXECUTED LOCALLY

BULB (6V,36/36W)

€ 0.00

0947106047
ref: 9
EXECUTED LOCALLY

BULB (6V,4W)

€ 0.00

0211204128
ref: 10

SCREW

€ 1.50

0832221048
ref: 11

WASHER

€ 2.00

0832121048
ref: 12

LOCK WASHER

€ 2.00

5181129303291
ref: 13

HOUSING,HEADLAMP

€ 43.00

0120408257
ref: 14

BOLT

€ 2.00

0832121088
ref: 15

LOCK WASHER

€ 2.00

0832211088
ref: 16

WASHER

€ 2.00

0918008030
ref: 17

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 18

CUSHION

€ 3.00

5186045000
ref: 19

PLATE,HEADLAMP HOUSING

€ 2.00

5182045000
ref: 20

PLATE,HEADLAMP HOUSING

€ 4.00
