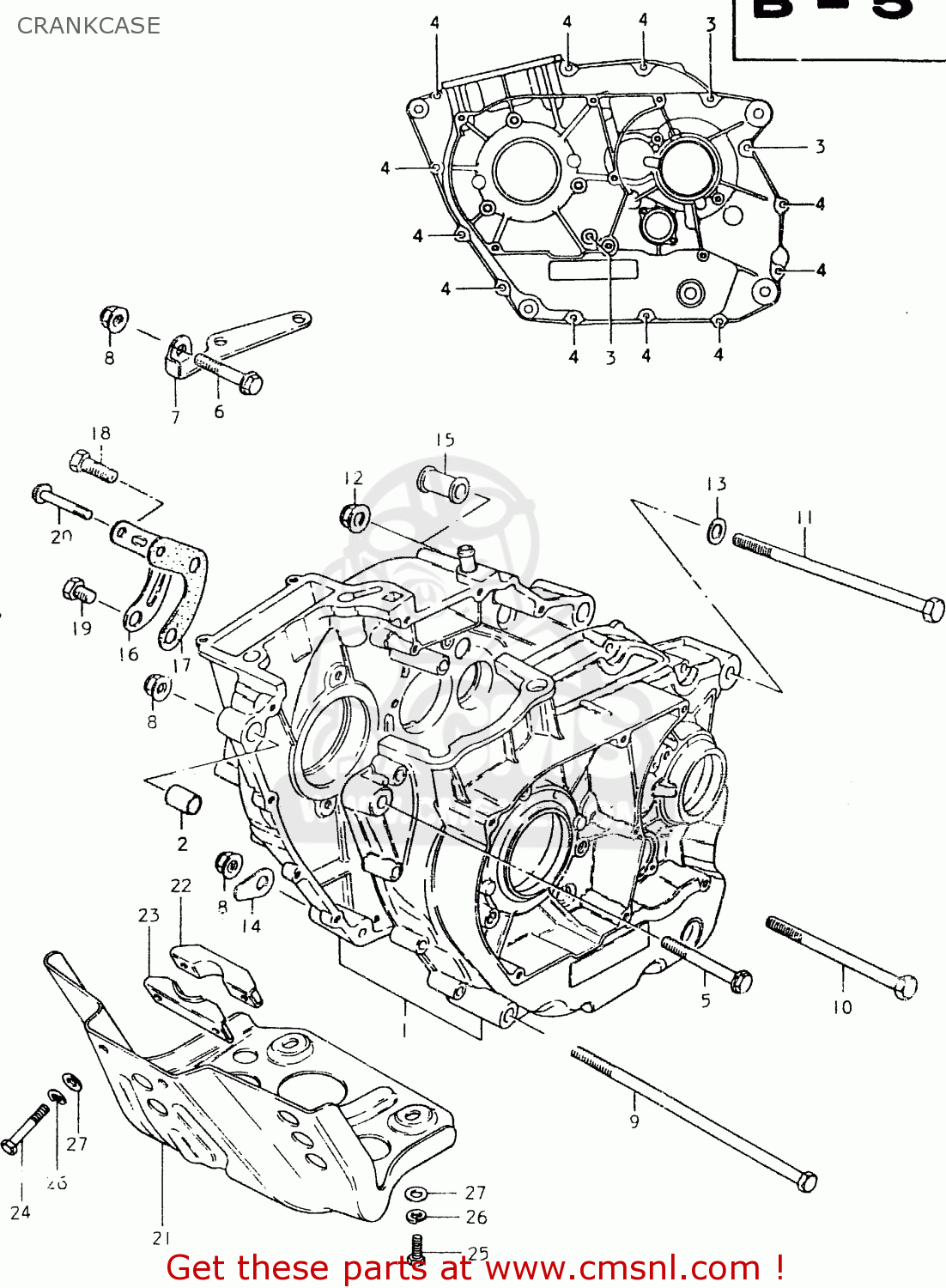

CRANKCASE

ref

part #

description

quantity

1

1130032840
ref: 1

CRANKCASE SET

€ 285.00

2

0920613001
ref: 2

PIN

€ 2.50

3

0211206508
ref: 3

SCREW

€ 2.50

4

0211206358
ref: 4

SCREW (6X35)

€ 2.50

5

0151708708
ref: 5

BOLT (8X70)

€ 2.00

6

0151708508
ref: 6
~E.NO.102981

BOLT

€ 3.50

6

0151708558
ref: 6
E.NO.102982~

BOLT 8X55

€ 3.00

7

1113137990
ref: 7
~E.NO.102981

PIPE,CYLINDER HEAD OIL

€ 0.00

8

0831931088
ref: 8

NUT

€ 2.50

9

0910010121
ref: 9

BOLT(10X190)

€ 8.50

10

0910010116
ref: 10

BOLT 10X115

€ 3.50

11

0910010120
ref: 11

BOLT 10X155

€ 4.50

12

0831931108
ref: 12

NUT

€ 3.00

13

0832211108
ref: 13

WASHER

€ 2.50

14

0916910011
ref: 14

WASHER

€ 1.00

14

0916910012
ref: 14

WASHER

€ 1.00

15

1161032400
ref: 15

SPACER

€ 12.00

16

1139432400
ref: 16

CAP,OIL GALLERY

€ 0.00

17

1149732400
ref: 17

GASKET,OIL GALLERY (MCA)

€ 2.50

18

0936010007
ref: 18

BOLT,UNION

€ 6.50

19

0924710001
ref: 19

PLUG

€ 3.00

20

0151706558
ref: 20

BOLT

€ 2.50

21

1191132500
ref: 21
OPT (E6:STD)

PROTECTOR,ENGINE

€ 101.00

22

1192032400
ref: 22
OPT (E6:STD)

BRACKET,ENGINE PROTECT

€ 11.50

23

1192132400
ref: 23
OPT (E6:STD)

BRACKET,ENGINE PROTECT

€ 9.50

24

0110706558
ref: 24
OPT (E6:STD)

BOLT

€ 2.00

25

0110706168
ref: 25
OPT (E6:STD)

BOLT, UPPER

€ 3.00

26

0832121068
ref: 26
OPT (E6:STD)

LOCK WASHER

€ 2.50

27

0832221068
ref: 27
OPT (E6:STD)

WASHER

€ 2.00
