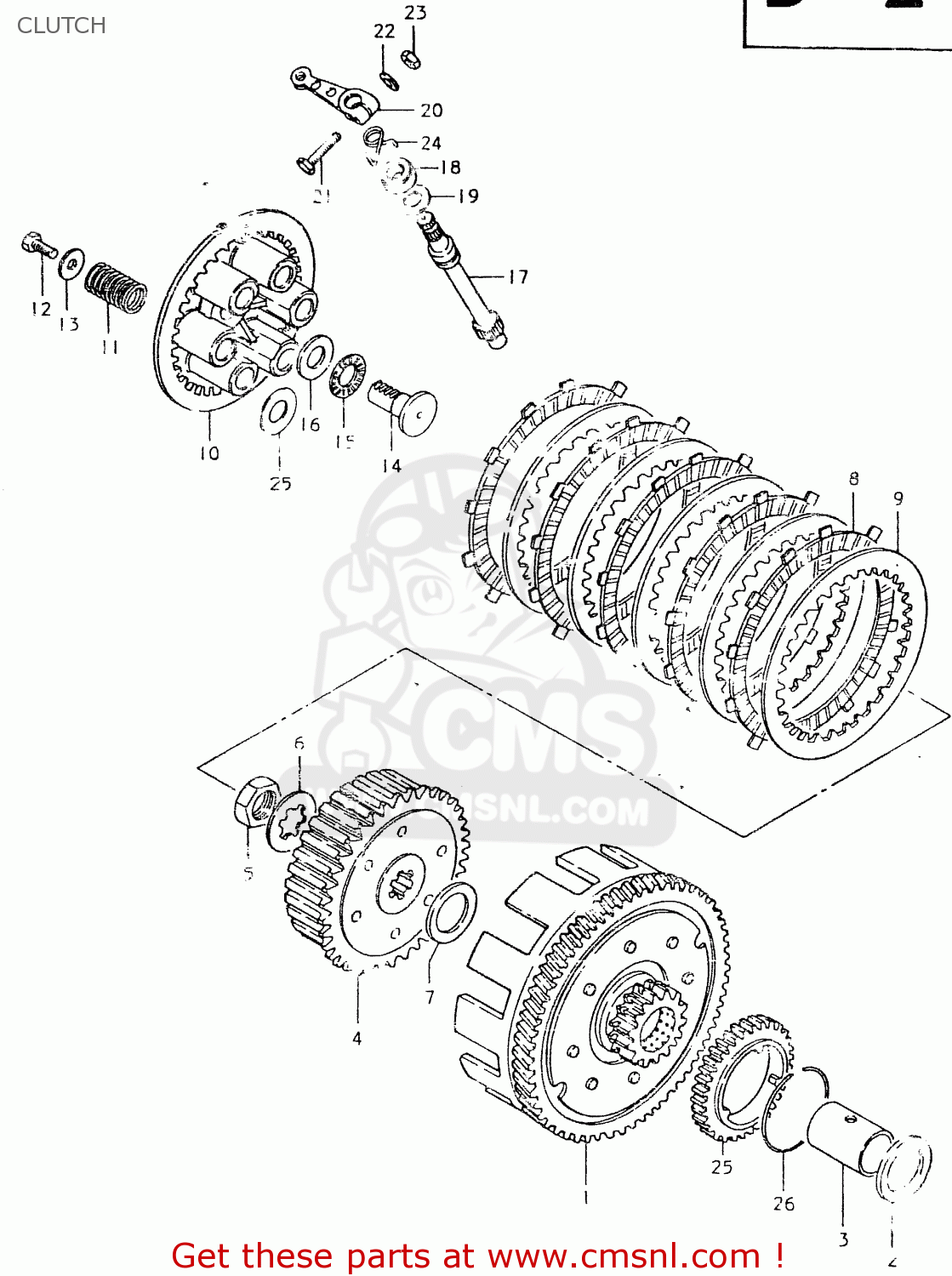

CLUTCH

ref

part #

description

quantity

1

2120037100
ref: 1
NT:71/19

GEAR ASSEMBLY,PRIMARY DRIVE

€ 236.50

2

0821122383
ref: 2

WASHER

€ 3.00

3

0918022014
ref: 3

SPACER

€ 9.50

4

2141138100
ref: 4

HUB,CLUTCH SLEEVE

€ 65.50

5

0914020002
ref: 5

NUT (20MM)

€ 3.50

6

0916720006
ref: 6

WASHER,LOCK

€ 3.00

7

0916020028
ref: 7

WASHER(20X38X2)

€ 6.50

8

2144140402
ref: 8

PLATE,CLUTCH DRIVE (MCA)

€ 20.50

9

2145145000
ref: 9

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

10

2146216500
ref: 10

DISC,CLUTCH PRESSURE

€ 51.00

11

0944019003
ref: 11

SPRING

€ 5.50

12

0110706168
ref: 12

BOLT, UPPER

€ 3.00

13

0916006020
ref: 13

WASHER

€ 2.00

14

2316516501
ref: 14

RACK,CLUTCH RELEASE

€ 23.00

15

0926315003
ref: 15

BEARING(15X28X2)

€ 7.00

16

0916015015
ref: 16

WASHER

€ 4.00

17

2326116500
ref: 17

PINION,CLUTCH RELEASE

€ 40.50

18

0928512002
ref: 18

OIL SEAL

€ 7.00

19

0916014003
ref: 19

WASHER (14.2X22X1)

€ 1.00

20

2327130500
ref: 20

ARM,CLUTCH RELEASE

€ 31.50

21

0151706208
ref: 21

BOLT,REAR

€ 2.50

22

0944815005
ref: 22
~E.NO.103253

SPRING

€ 3.00

23

1632132401
ref: 23

GEAR,OIL PUMP DRIVE

€ 31.00

24

0938050001
ref: 24

CIRCLIP

€ 2.50

25

0916416003
ref: 25
E.NO.103254~

WASHER

€ 2.50

all assemblies
