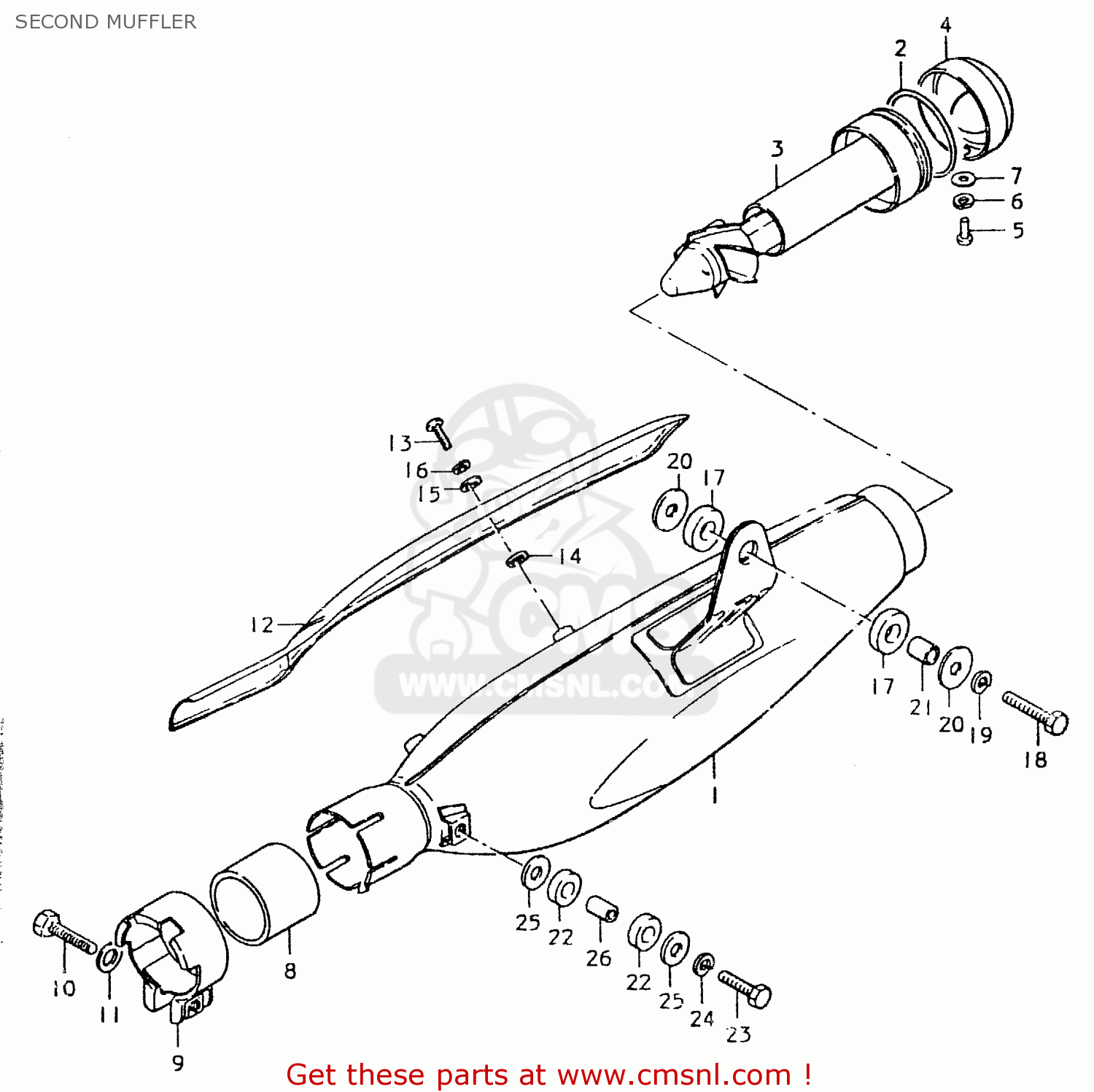

SECOND MUFFLER

ref

part #

description

quantity

1

1430332400
ref: 1

MUFFLER ASSEMBLY

€ 224.50

2

0928055001
ref: 2

O-RING (D:3.5 ID:54.4)

€ 5.50

3

1485030510
ref: 3

TUBE,MUFFLER CLEAN OUT

€ 22.50

4

1464930520
ref: 4

COVER,SECOND MUFFLER TAIL

€ 10.00

5

0912806013
ref: 5

SCREW(6X8)

€ 1.50

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0832221068
ref: 7

WASHER

€ 2.00

8

1477132400
ref: 8

CONNECTOR,MUFFLER

€ 56.50

9

1445932400
ref: 9

CLAMP

€ 14.00

10

0910008148
ref: 10

BOLT 8X35

€ 3.50

11

0832211088
ref: 11

WASHER

€ 2.00

12

1478232400
ref: 12

COVER,SECOND MUFFLER

€ 54.00

13

0211206128
ref: 13

SCREW 6X12

€ 2.00

14

0916806005
ref: 14

GASKET 6.2X12X1.5 (MCA)

€ 2.00

15

0832221068
ref: 15

WASHER

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0932014009
ref: 17

CUSHION

€ 2.50

18

0110708308
ref: 18

BOLT (8X30)

€ 2.50

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0916008002
ref: 20

WASHER (8.5X29X1.6)

€ 2.00

21

0918008076
ref: 21

SPACER (8.6X13.8X13)

€ 2.50

22

0932014006
ref: 22

CUSHION

€ 3.50

23

0910008072
ref: 23

BOLT

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0916008005
ref: 25

WASHER

€ 2.50

26

0918008077
ref: 26

SPACER (8.6X13.8X8)

€ 4.50

all assemblies
