CARBURETOR

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

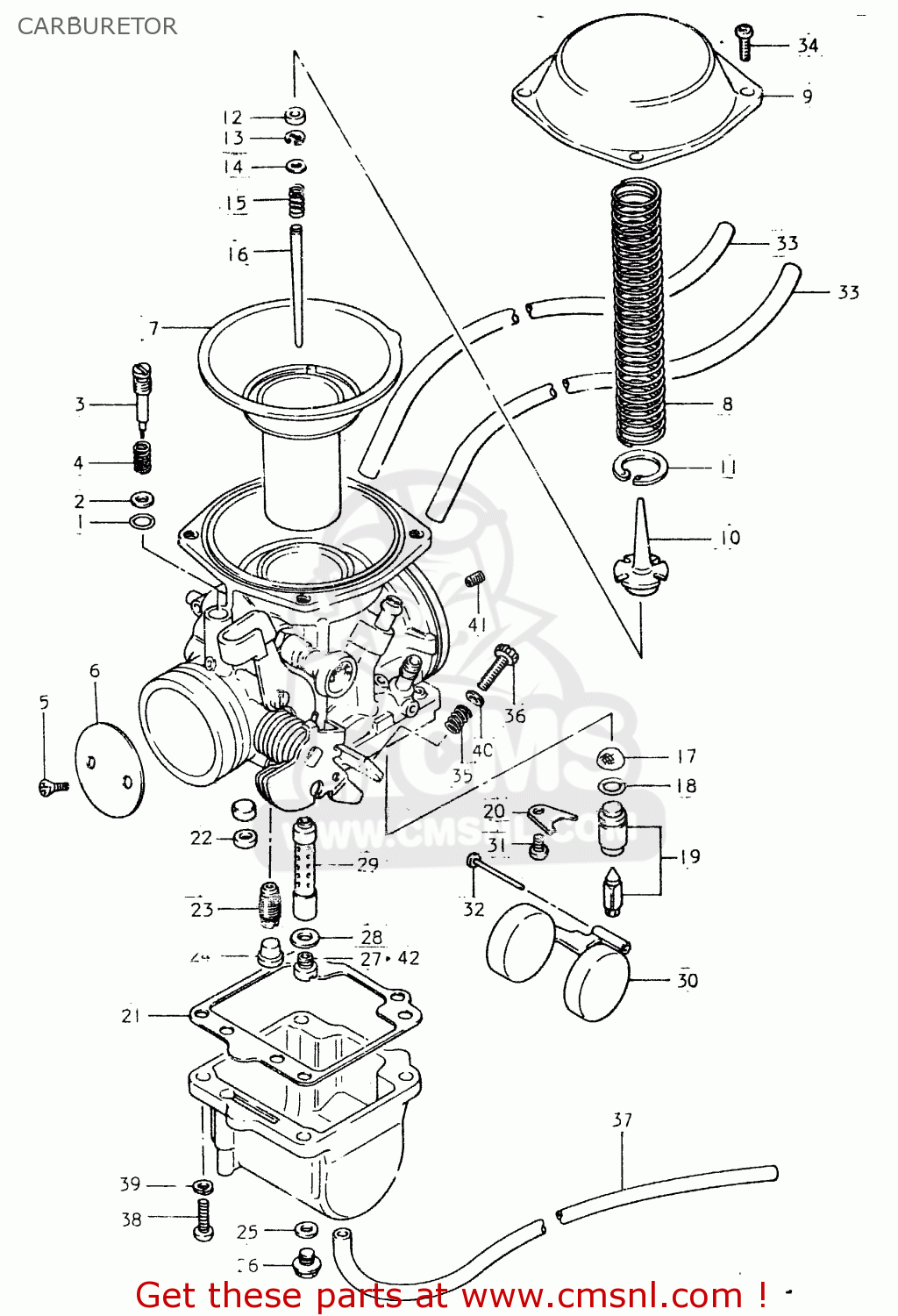

Carburetor diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

CARBURETOR SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
CARBURETOR SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
CARBURETOR SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
0
1320037110
ref: 0
~E.NO.101309, TO 132
CARBURETOR ASSY
€ 0.00
0
1320037111
ref: 0
E.NO.101310~
CARBURETOR ASSY
€ 0.00
1
1327844080
ref: 1
O-RING
€ 4.00
2
1327744080
ref: 2
GASKET
€ 2.00
3
1326937100
ref: 3
SCREW, PILOT
€ 0.00
4
1326847070
ref: 4
SPRING
1326847070
€ 5.00
5
1360444080
ref: 5
SCREW
1360444080
€ 3.50
6
1355137100
ref: 6
VALVE,THROTTLE (BUTTERFLY)
€ 0.00
7
1350037100
ref: 7
DIAPHRAGM
1350037100
€ 188.00
8
1350337100
ref: 8
SPRING
1350337100
€ 9.00
9
1350237100
ref: 9
COVER,DIAPHRAGM
€ 0.00
10
1338944030
ref: 10
HOLDER,GUIDE
1338944030
€ 10.50
11
1358144030
ref: 11
E RING
1358144030
€ 6.50
12
1338744030
ref: 12
RING
1338744030
€ 5.00
13
1339431210
ref: 13
CLIP,NEEDLE
1339431210
€ 3.50
14
1338244030
ref: 14
WASHER
1338244030
€ 3.50
15
1338844030
ref: 15
SPRING
1338844030
€ 6.00
16
1338337110
ref: 16
NEEDLE, JET (5C35-3)
€ 14.50
17
1337644080
ref: 17
FILTER
1337644080
€ 6.50
18
6626399050
ref: 18
O RING
6626399050
€ 6.00
19
1337037100
ref: 19
VALVE ASSEMBLY,NEEDLE
1337037100
€ 63.00
20
1337339110
ref: 20
PLATE
1337339110
€ 6.50
21
1325137100
ref: 21
GASKET,FLOAT CHAMBER (NAS)
1325137100
€ 8.50
22
1325844080
ref: 22
GASKET (NAS)
1325844080
€ 4.00
23
0949242005
ref: 23
JET, PILOT (42.5)
€ 8.50
25
1335744080
ref: 25
PLUG,NEEDLE JET
1335744080
€ 4.50
25
1324644080
ref: 25
GASKET (NAS)
1324644080
€ 3.50
26
1324744080
ref: 26
PLUG,DRAIN
1324744080
€ 9.50
27
0949128005
ref: 27
~E.NO.101309
JET
€ 8.50
27
0949127002
ref: 27
E.NO.101310~
JET
€ 10.50
28
1338203110
ref: 28
WASHER
1338203110
€ 2.50
29
0949400280
ref: 29
JET, NEEDLE (Y-6)
€ 13.00
30
1325037100
ref: 30
FLOAT
1325037100
€ 33.50
31
0211204068
ref: 31
SCREW 4X6
0211204068
€ 2.00
32
1325492311
ref: 32
PIN,FLOAT
1325492311
€ 2.00
33
1368437100
ref: 33
HOSE
€ 13.00
34
0211205128
ref: 34
SCREW
€ 2.50
35
1357337100
ref: 35
SPRING,THROTTLE SHAFT
€ 0.00
36
1326737100
ref: 36
SCREW,THROTTLE STOP
€ 9.00
37
1368347020
ref: 37
HOSE
€ 10.00
38
0211205168
ref: 38
SCREW
0211205168
€ 2.50
39
0832121058
ref: 39
LOCK WASHER
0832121058
€ 2.00
40
1343247090
ref: 40
WASHER
1343247090
€ 2.50
41
0949326005
ref: 41
~E.NO.101309
JET
0949326005
€ 11.50
41
0949324005
ref: 41
E.NO.101310~
JET,AIR
0949324005
€ 13.00
42
0949126005
ref: 42
OPT
JET
€ 11.50
42
0949127004
ref: 42
OPT
JET
0949127004
€ 10.50
42
0949128006
ref: 42
OPT
JET,MAIN (142.5)
€ 0.00
42
0949129001
ref: 42
OPT
JET,MAIN (145)
0949129001
€ 10.50
42
0949128004
ref: 42
OPT
JET
€ 0.00
42
0949130004
ref: 42
OPT
JET
€ 14.00
