OIL PUMP

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

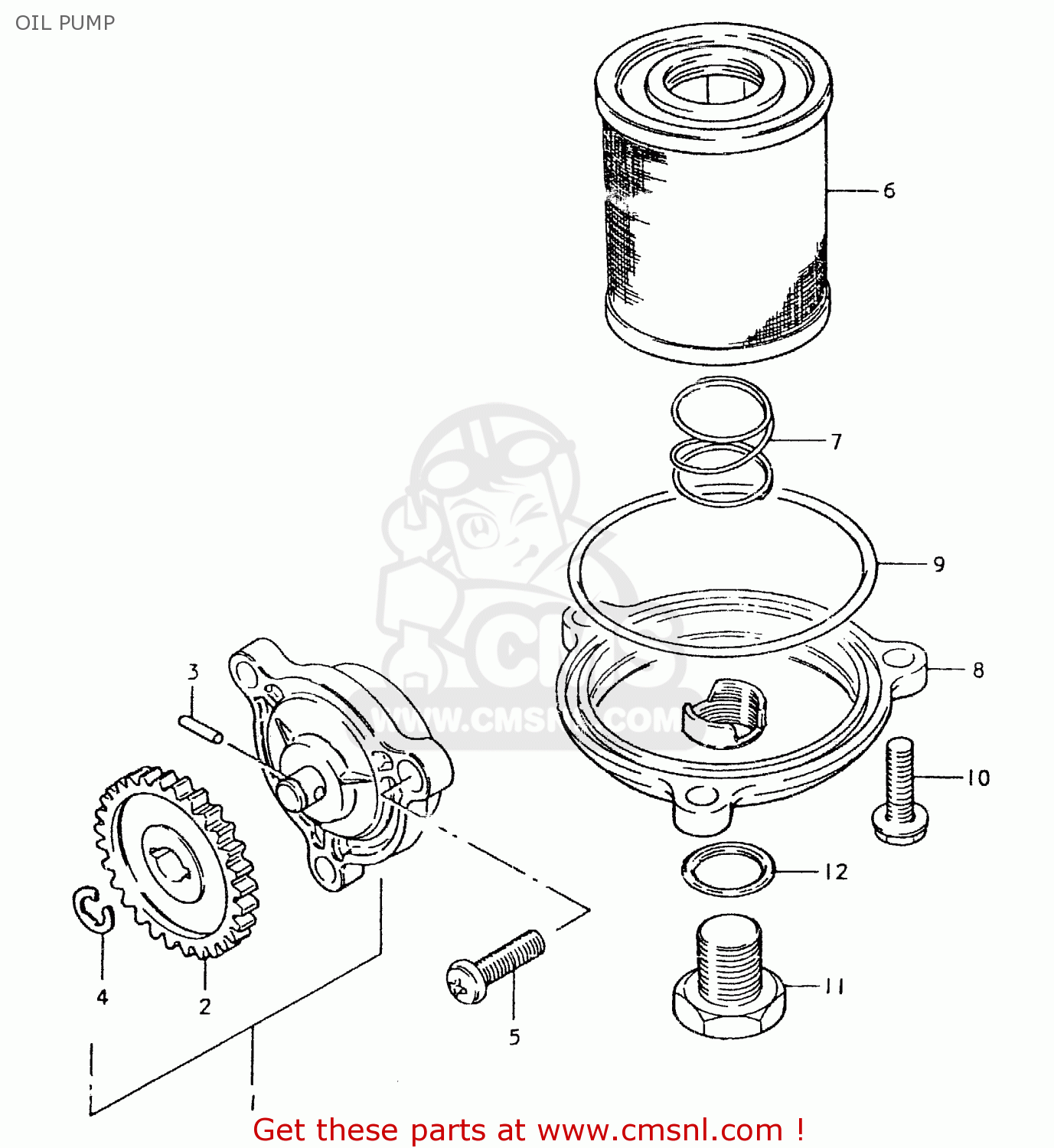

Oil pump diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

OIL PUMP SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

OIL PUMP SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

1

1640032400
ref: 1

PUMP ASSEMBLY,ENGINE OIL

€ 109.50

2

1633132400
ref: 2

GEAR,OIL PUMP DRIVEN

€ 19.00

3

0926102008
ref: 3

PIN(2.5X11.8)

€ 1.50

4

0833211068
ref: 4

E RING 6MM

€ 2.00

5

0211206208
ref: 5

SCREW

€ 2.00

6

1652032430
ref: 6

STRAINER,OIL

€ 49.00

7

0944021004
ref: 7

SPRING

€ 13.00

8

1652332400
ref: 8

CAP,ENGINE OIL STRAINER

€ 22.50

9

0928063004
ref: 9

O RING(D:2.4,ID:62.6)

€ 9.50

10

0151706208
ref: 10

BOLT,REAR

€ 2.50

11

0924714001
ref: 11

PLUG

€ 5.00

12

0916814004
ref: 12

GASKET(14X19.2X2) (NAS)

€ 2.50
