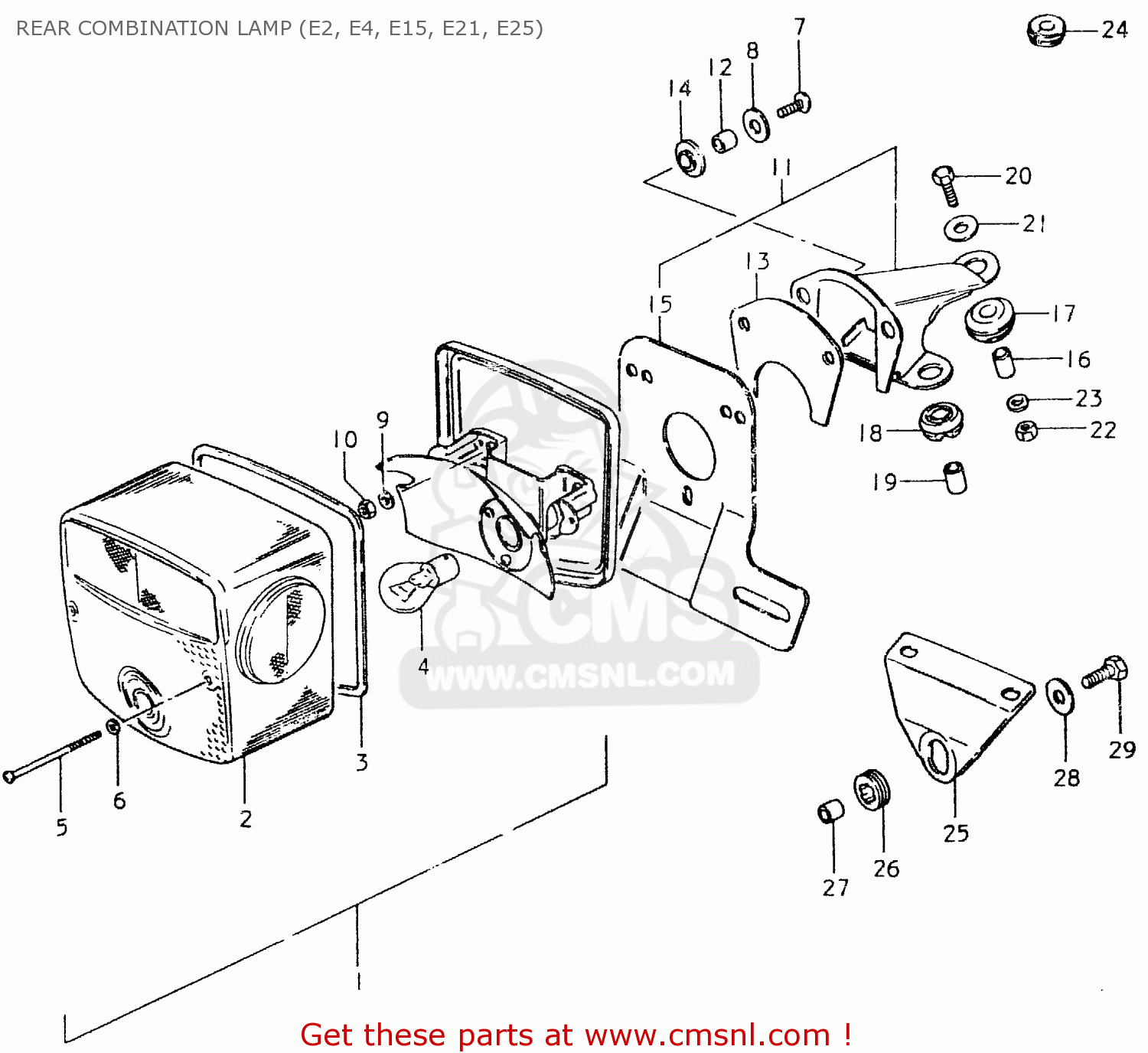

REAR COMBINATION LAMP (E2, E4, E15, E21, E25)

ref

part #

description

quantity

1

3572032421
ref: 1

LAMP UNIT, TAIL

€ 0.00

2

3571248622
ref: 2

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3572532410
ref: 7

TAPPING SCREW

€ 0.00

8

3572732410
ref: 8

WASHER,REAR COMBINATION LAMP

€ 0.00

9

0831011068
ref: 9

NUT

€ 2.50

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

3573037111
ref: 11

BRACKET SET

€ 0.00

12

3576637110
ref: 12

SPACER

€ 11.50

13

3576332410
ref: 13

CUSHION

€ 4.50

14

3576432410
ref: 14

CUSHION,REAR COMBINATION LAMP

€ 0.00

15

3592737181
ref: 15

PLATE, LICENCE

€ 25.00

16

3576637120
ref: 16

SPACER

€ 2.50

17

3576532410
ref: 17

CUSHION,REAR COMBINATION LAMP

€ 3.00

18

3576544130
ref: 18

CUSHION,REAR COMBINATION LAMP

€ 6.50

19

3576637190
ref: 19

SPACER

€ 2.00

20

0110706308
ref: 20

BOLT

€ 2.50

21

0916006027
ref: 21

WASHER (6.5X20X1.2)

€ 2.00

22

0831011068
ref: 22

NUT

€ 2.50

23

0832211068
ref: 23

WASHER 6MM

€ 2.00

24

0930809001
ref: 24

GROMMET

€ 0.00

25

3592937110
ref: 25

REINFORCEMENT

€ 0.00

26

0932009009
ref: 26

CUSHION

€ 5.00

27

0918006011
ref: 27

SPACER (6.1X9X9)

€ 2.00

28

0916006027
ref: 28

WASHER (6.5X20X1.2)

€ 2.00

29

0110706168
ref: 29

BOLT, UPPER

€ 3.00

all assemblies
