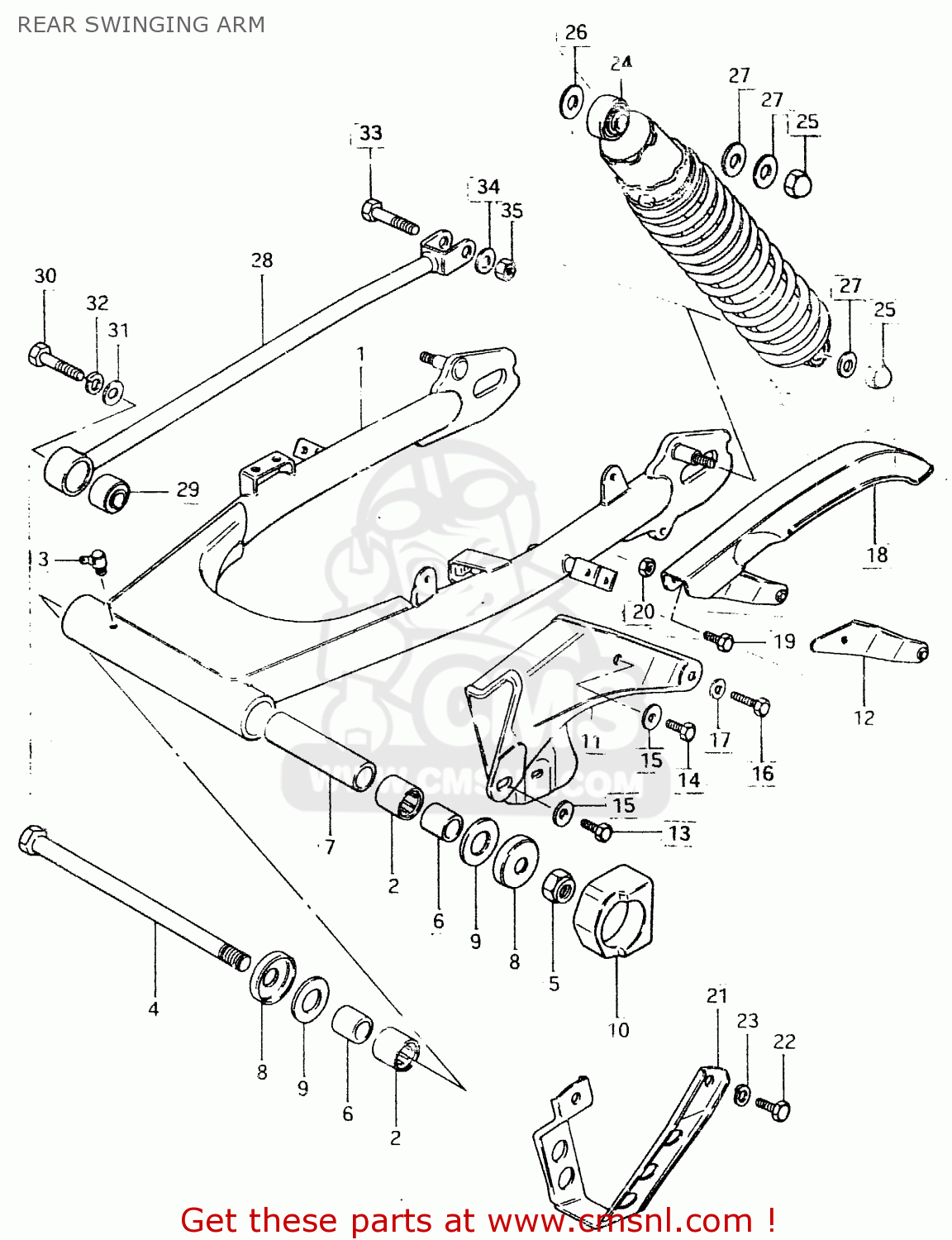

REAR SWINGING ARM

ref

part #

description

quantity

1

6110032852019
ref: 1

REAR SWINGING ARM SET

€ 250.00

2

0926322022
ref: 2

BEARING(22X29X20)

€ 27.00

3

0835131008
ref: 3

NIPPLE,GREASE

€ 10.50

4

6121132410
ref: 4

SHAFT,REAR SWING ARM

€ 31.50

5

0831921168
ref: 5

NUT 16MM

€ 5.00

6

6125132410
ref: 6

SPACER,RR SWGARM PIVOT

€ 8.50

7

0918016018
ref: 7
16.2X21.7X142

SPACER (16.2X21.7X142)

€ 12.50

8

6126232410
ref: 8

COVER,RR SWGARM DUST SEAL

€ 10.00

9

0821116341
ref: 9

WASHER

€ 2.00

10

6127341110
ref: 10

BUFFER,CHAIN TOUCH DEFENSE

€ 19.00

11

6131132400
ref: 11

CASE,CHAIN

€ 43.50

12

6138030500
ref: 12

REINFORCEMENT,CHAIN CASE

€ 6.00

13

0110706108
ref: 13

BOLT

€ 2.00

14

0910006011
ref: 14

BOLT(6X8)

€ 2.50

15

0916906010
ref: 15

WASHER

€ 3.00

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832221068
ref: 17

WASHER

€ 2.00

18

6133032400
ref: 18
E17,E39

CHAIN CASE, END

€ 45.00

19

0110706128
ref: 19
E17,E39

BOLT

€ 2.00

20

0831011068
ref: 20
E17,E39

NUT

€ 2.50

21

6134130500
ref: 21

GUIDE,CHAIN

€ 13.00

22

0110708128
ref: 22

BOLT 8X12

€ 2.50

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

6210032410
ref: 24

ABSORBER ASSEMBLY,REAR SHOCK

€ 240.50

25

0831311108
ref: 25

NUT, LOWER LH

€ 2.50

26

0832211128
ref: 26

WASHER

€ 2.00

27

0916010001
ref: 27

WASHER

€ 2.00

28

6431032400
ref: 28

TORQUE LINK,REAR

€ 11.50

29

0931910008
ref: 29

BUSH

€ 8.00

30

0110710408
ref: 30

BOLT 10X40

€ 3.00

31

0832211108
ref: 31

WASHER

€ 2.50

32

0832121108
ref: 32

LOCK WASHER

€ 2.00

33

0110710408
ref: 33

BOLT 10X40

€ 3.00

34

0832211108
ref: 34

WASHER

€ 2.50

35

0831921108
ref: 35

NUT

€ 3.00

all assemblies
