REAR WHEEL

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

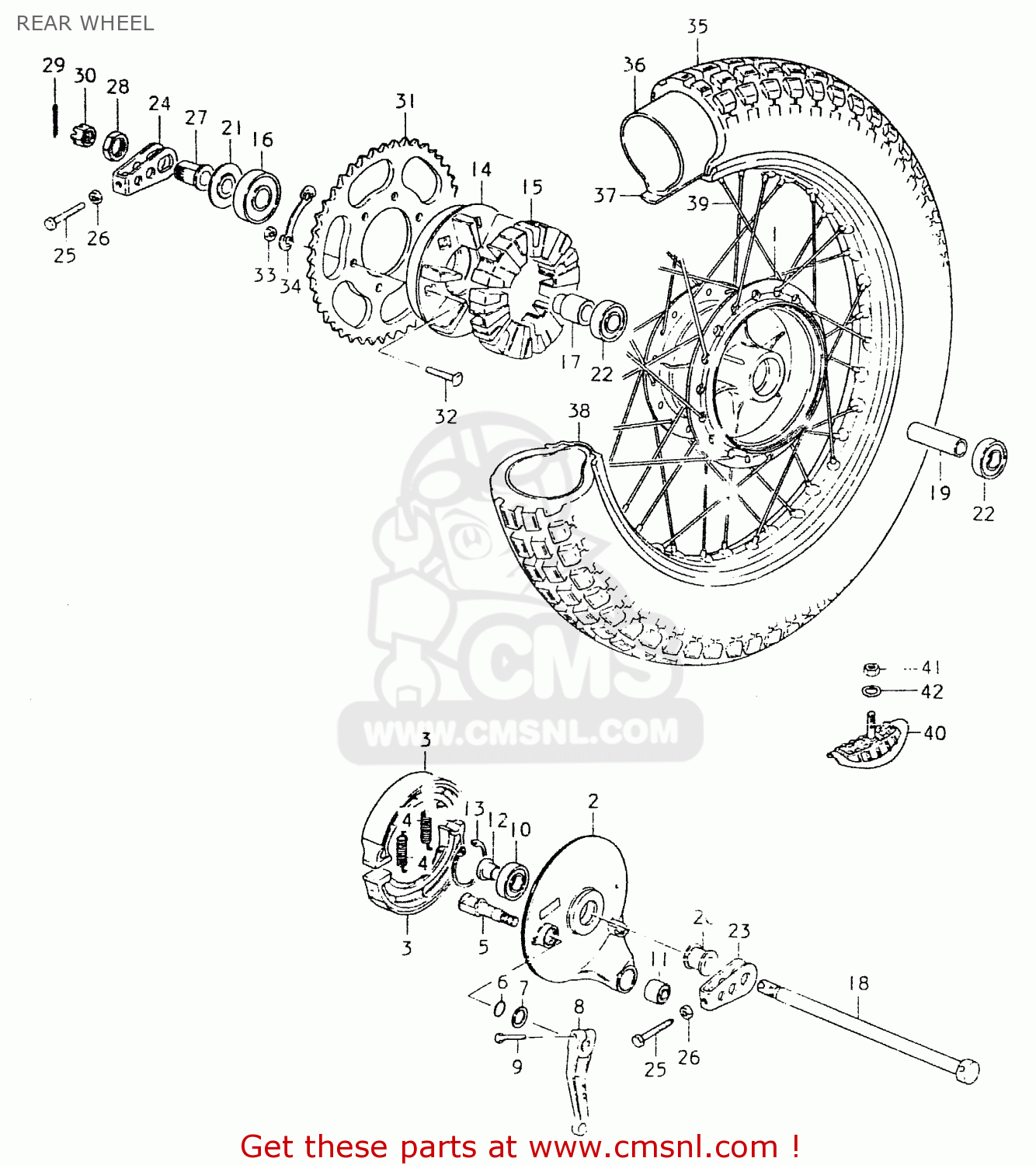

Rear wheel diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

REAR WHEEL SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
REAR WHEEL SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
REAR WHEEL SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1
6411032420
ref: 1
DRUM,REAR HUB
€ 0.00
2
6421032421
ref: 2
PANEL,REAR HUB
€ 134.50
3
5441032400
ref: 3
SHOE,BRAKE (MCA)
5441032400
€ 35.00
4
5542041100
ref: 4
SPRING
5542041100
€ 5.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
5444008003
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
6445132400
ref: 8
LEVER,REAR BRAKE CAM
€ 15.00
9
0110706258
ref: 9
BOLT
€ 2.00
10
0812360047
ref: 10
BALL BEARING
0812360047
€ 21.00
11
0931910008
ref: 11
BUSH
0931910008
€ 8.00
12
6421332400
ref: 12
SPACER,REAR HUB PANEL
€ 17.50
13
0833141428
ref: 13
CIRCLIP,42MM
€ 1.50
14
6461132420
ref: 14
DRUM,REAR SPROCKET MOUNT
€ 0.00
15
6465032400
ref: 15
CUSHION,REAR DRUM
6465032400
€ 7.50
16
0812363047
ref: 16
BEARING
0812363047
€ 14.00
17
6473332400
ref: 17
SPACER,REAR HUB BEARING
€ 11.50
18
6471116500
ref: 18
AXLE,REAR
6471116500
€ 41.00
19
0918015043
ref: 19
SPACER (15.3X21.7X82)
€ 6.00
20
6474132400
ref: 20
SPACER,AXLE,RIGHT
€ 9.00
21
6475032400
ref: 21
SPACER,REAR AXLE,RIGHT
6475032400
€ 9.00
22
0814363027
ref: 22
BEARING, RH
0814363027
€ 12.00
23
6141032400
ref: 23
ADJUSTER,CHAIN
6141032400
€ 22.00
24
6141041100
ref: 24
ADJUSTER,CHAIN
6141041100
€ 10.00
25
0910408006
ref: 25
BOLT
0910408006
€ 3.00
26
0831012088
ref: 26
NUT
0831012088
€ 2.00
27
6479141100
ref: 27
SPACER,CHAIN ADJUSTER
6479141100
€ 14.50
28
0914022003
ref: 28
NUT
0914022003
€ 10.00
29
0411130408
ref: 29
PIN 30X40
€ 1.50
30
0914114001
ref: 30
NUT
0914114001
€ 4.50
31
6451132400
ref: 31
NT:42
SPROCKET,REAR
€ 101.50
31
6451132410
ref: 31
NT:41,OPT
SPROCKET,REAR (NT:41)(AL)
6451132410
€ 51.50
31
6451132420
ref: 31
NT:43,OPT
SPROCKET,REAR
6451132420
€ 45.00
32
0910508001
ref: 32
BOLT(8X33.5)
0910508001
€ 2.50
33
0831012088
ref: 33
NUT
0831012088
€ 2.00
34
0916908011
ref: 34
WASHER
0916908011
€ 2.50
35
6510032410
ref: 35
IRC,TO 65100-32411
TIRE
€ 60.00
36
6520049015
ref: 36
TUBE,INNER
€ 39.00
37
6526115010
ref: 37
PROTECTOR,WHEEL,INNER
€ 3.50
38
6531130600
ref: 38
RIM,REAR WHEEL
6531130600
€ 75.00
39
6532016520
ref: 39
SPOKE SET,RR
6532016520
€ 54.00
40
6527030001
ref: 40
STOPPER,BEAD
€ 30.50
41
0831012088
ref: 41
NUT
0831012088
€ 2.00
42
0832211088
ref: 42
WASHER
0832211088
€ 2.00
