CRANKSHAFT

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

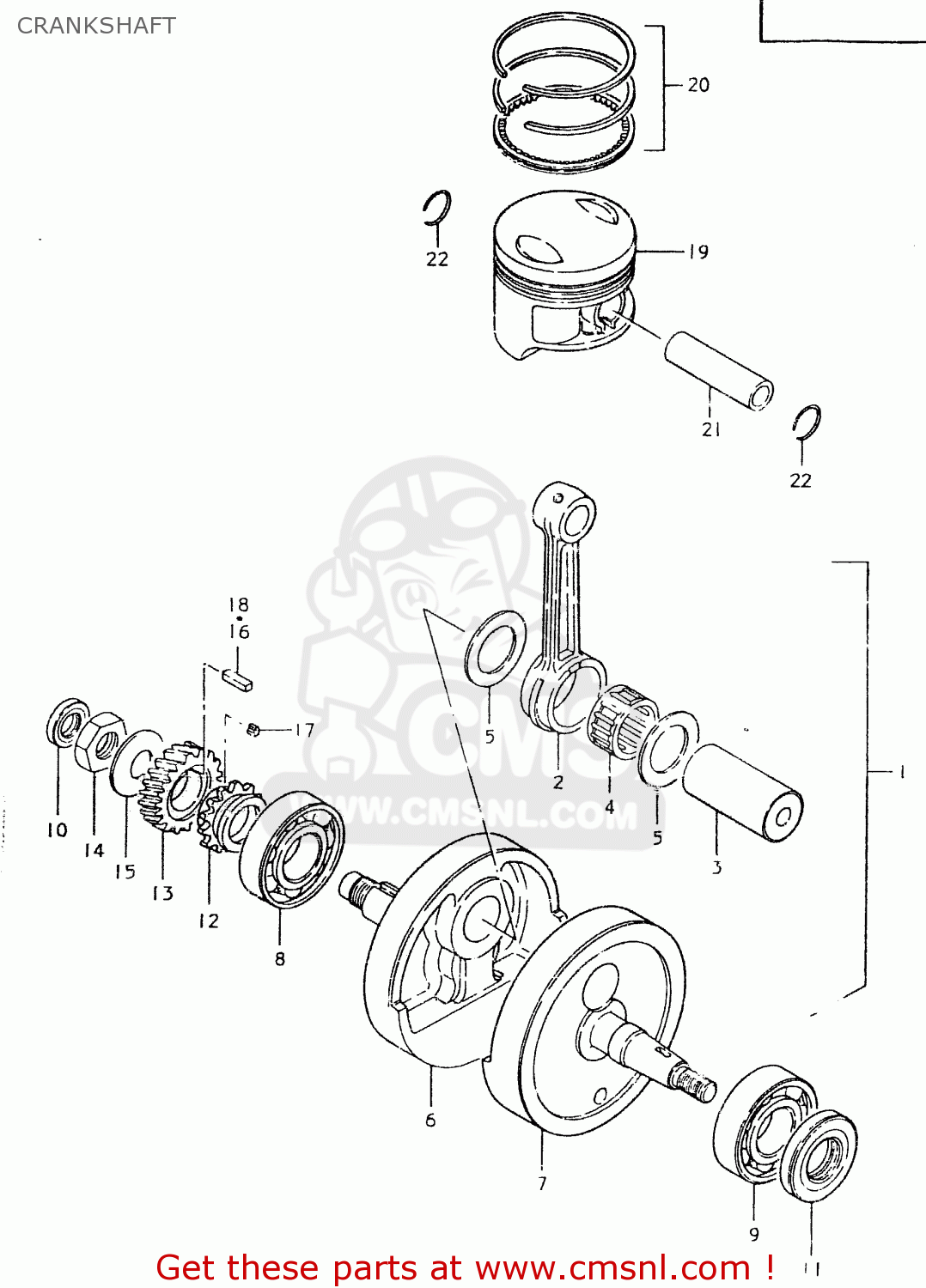

Crankshaft diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

CRANKSHAFT SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
CRANKSHAFT SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
CRANKSHAFT SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1
1220037100
ref: 1
TO 12200-37101, (W:2
CRANKSHAFT ASSEMBLY
€ 698.50
2
1216137100
ref: 2
ROD,CONNECTING
€ 97.00
3
1221137100
ref: 3
FOR 12200-37100
PIN,CRANK
€ 33.00
3
1221037100
ref: 3
FOR 12200-37101
PIN,CRANK
€ 33.00
4
0926334002
ref: 4
BEARING
0926334002
€ 45.50
5
0916034003
ref: 5
FOR 12200-37100
WASHER(34X52X1)
0916034003
€ 6.50
5
0916034003
ref: 5
FOR 12200-37101
WASHER(34X52X1)
0916034003
€ 6.50
6
1222137101
ref: 6
FOR 12200-37100
CRANKSHAFT
€ 182.00
6
1222137102
ref: 6
FOR 12200-37101
CRANKSHAFT
€ 182.00
7
1226137100
ref: 7
CRANKSHAFT,LEFT
€ 83.00
8
0926230043
ref: 8
BALL BEARING 30X72X19
€ 36.50
9
0926230043
ref: 9
BALL BEARING 30X72X19
€ 36.50
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
0928216002
€ 8.50
11
0928330024
ref: 11
SEAL,OIL(30X58X7)
0928330024
€ 28.00
12
1273132400
ref: 12
SPROCKET,CAM CHAIN DRIVE
€ 25.00
13
2111132401
ref: 13
GEAR,PRIMARY DRIVE
2111132401
€ 37.00
14
0914020008
ref: 14
NUT (20MM)
0914020008
€ 4.00
15
0916420003
ref: 15
WASHER
0916420003
€ 2.50
16
0942107001
ref: 16
~E.NO.101398
KEY
0942107001
€ 2.50
17
1274932400
ref: 17
E.NO.101399~
KEY,SPROCKET
1274932400
€ 13.50
18
0942107002
ref: 18
E.NO.101399~
KEY
0942107002
€ 4.00
19
1211137100
ref: 19
PISTON (88.00MM)
1211137100
€ 98.50
19
1211137100050
ref: 19
PISTON
1211137100050
€ 133.50
19
1211137100100
ref: 19
PISTON (89.00MM)
1211137100100
€ 133.50
20
1214037100
ref: 20
RING SET,PISTON
1214037100
€ 70.50
20
1214037100050
ref: 20
RING SET,PISTON
1214037100050
€ 41.00
20
1214037100100
ref: 20
RING SET,PISTON
1214037100100
€ 34.00
21
1215132400
ref: 21
PIN,PISTON
1215132400
€ 41.50
22
0938120001
ref: 22
CIRCLIP
0938120001
€ 2.00
