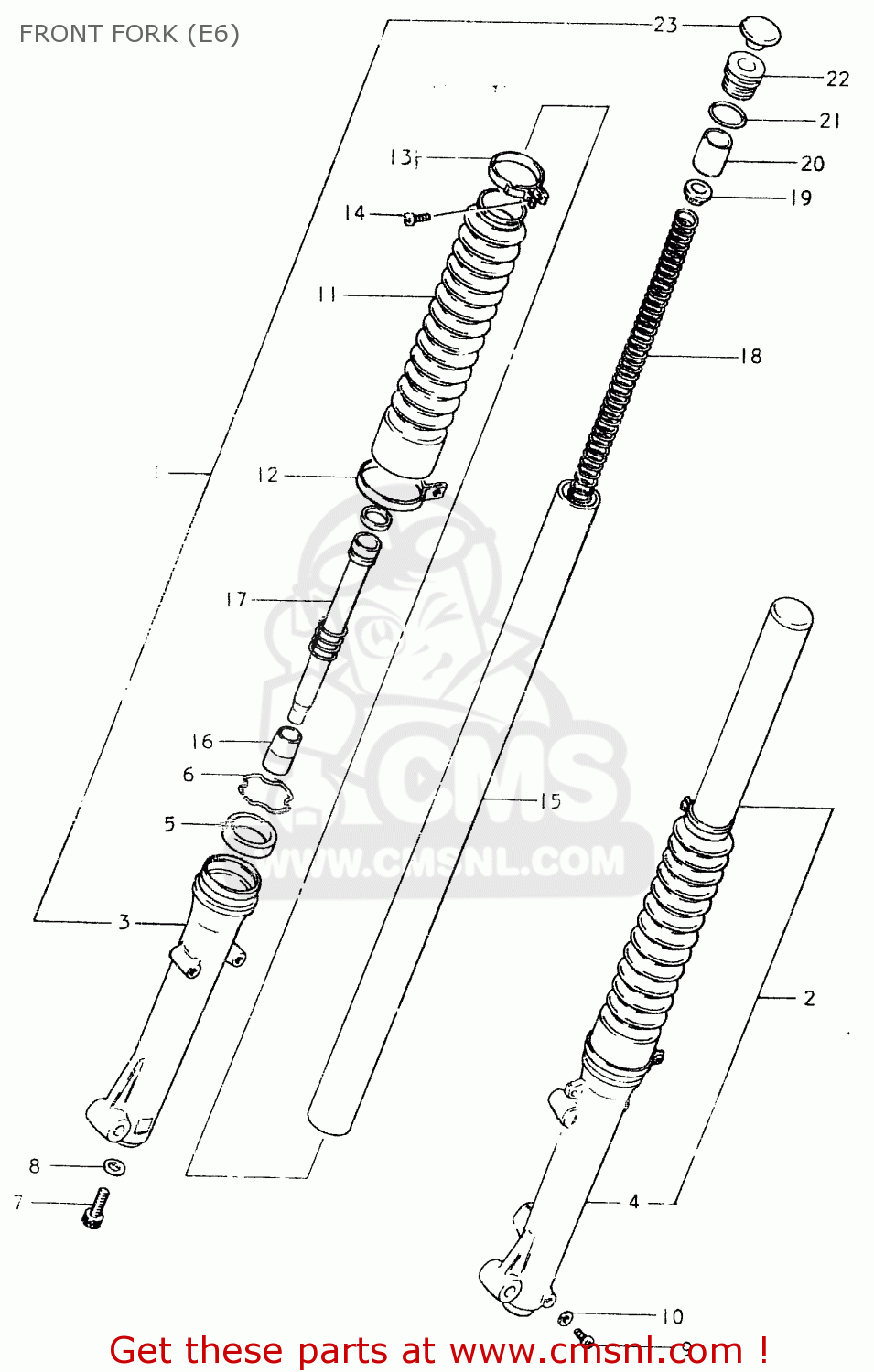

FRONT FORK (E6)

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

Front fork (e6) diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

5110332450
ref: 1

DAMPER ASSY, RH

€ 0.00

5110432450
ref: 2

DAMPER ASSY, LH

€ 0.00

5113030901
ref: 3

TUBE,OUTER,RIGHT

€ 0.00

5114030901
ref: 4

TUBE,OUTER,LEFT

€ 0.00

5115341211
ref: 5

OIL SEAL,FRONT FORK

€ 28.50

5115630400
ref: 6

5115630400

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

5114841310
ref: 8

GASKET (NAS)

€ 2.50

0211204088
ref: 9

SCREW

€ 1.50

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

5157132500
ref: 11

BOOT

€ 33.50

5157341410
ref: 12

BAND,FRONT FORK COVER

€ 10.00

5157541410
ref: 13

BAND,BOOT

€ 8.00

0211204168
ref: 14

SCREW

€ 1.00

5111032400
ref: 15

TUBE,FORK,INNER

€ 120.50

5119541210
ref: 16

PIECE,OIL LOCK

€ 12.00

5114632440
ref: 17

CYLINDER,FRONT FORK

€ 0.00

5117132440
ref: 18

SPRING

€ 0.00

5117238010
ref: 19

GUIDE,FRONT FORK SPRING C

€ 9.50

5117641010
ref: 20

SPACER,SPRING

€ 0.00

5111716310
ref: 21

O RING

€ 4.50

5135130520
ref: 22

CAP,FORK INNER TUBE

€ 9.00

5118932400
ref: 23

CAP,FRONT FORK

€ 11.50

FRONT FORK (E6)

all assemblies
