TRANSMISSION

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

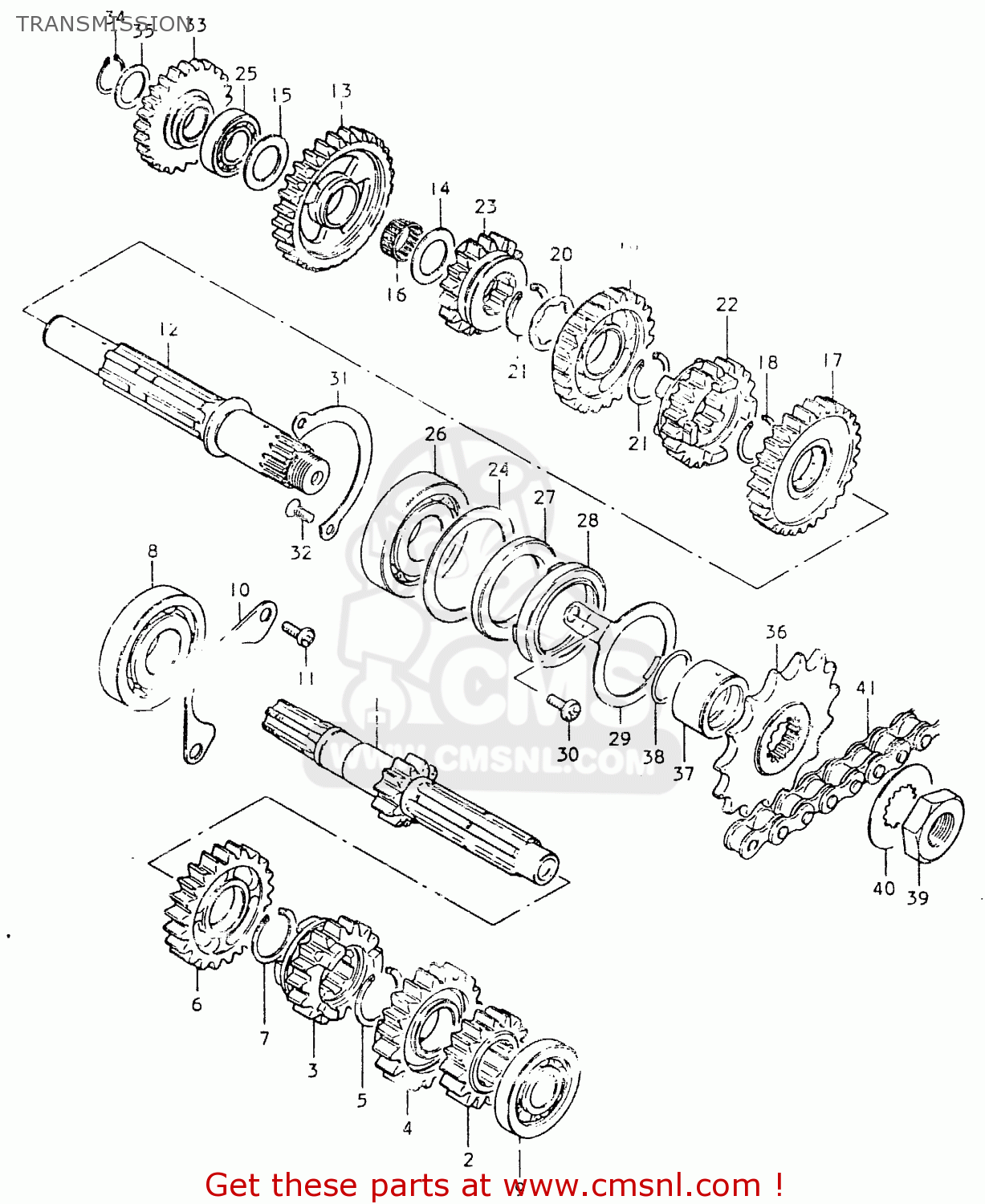

Transmission diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

TRANSMISSION SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
TRANSMISSION SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
TRANSMISSION SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1
2412032400
ref: 1
SHAFT,COUNTER
€ 72.00
1
2412032410
ref: 1
SHAFT,COUNTER
2412032410
€ 138.50
2
2422141101
ref: 2
FOR 24320-32400
GEAR,SECOND DRIVE
€ 74.50
2
2422132410
ref: 2
FOR 24320-32410
GEAR,SECOND DRIVE
€ 89.50
3
2423132401
ref: 3
GEAR,THIRD DRIVE
€ 64.00
4
2424137100
ref: 4
GEAR,FOURTH DRIVE
2424137100
€ 56.50
5
0938022006
ref: 5
CIRCLIP
0938022006
€ 3.00
6
2425132401
ref: 6
GEAR,FIFTH DRIVE
€ 82.50
7
0938022006
ref: 7
CIRCLIP
0938022006
€ 3.00
8
0926222014
ref: 8
BEARING
0926222014
€ 59.50
9
0926217018
ref: 9
BEARING
0926217018
€ 25.00
10
2474132400
ref: 10
PLATE,COUNTERSHAFT BEARING
2474132400
€ 9.50
11
0211206128
ref: 11
SCREW 6X12
0211206128
€ 2.00
12
2413032403
ref: 12
SHAFT,DRIVE
2413032403
€ 100.50
13
2431132401
ref: 13
GEAR,1ST DRIVEN(NT:29)
2431132401
€ 89.50
13
2431132410
ref: 13
TO 24311-32411
GEAR,FIRST DRIVEN
€ 64.50
14
0821117281
ref: 14
WASHER
0821117281
€ 3.00
15
0821117363
ref: 15
WASHER
0821117363
€ 2.00
16
0926317004
ref: 16
BEARING(17X21X9.8)
0926317004
€ 7.00
17
2432032400
ref: 17
GEAR,SECOND DRIVEN
€ 44.00
17
2432032410
ref: 17
GEAR,SECOND DRIVEN
€ 87.50
18
0938022006
ref: 18
CIRCLIP
0938022006
€ 3.00
19
2433032400
ref: 19
GEAR,THIRD DRIVEN
2433032400
€ 60.00
20
0916722011
ref: 20
WASHER,LOCK
0916722011
€ 3.00
21
0938022006
ref: 21
CIRCLIP
0938022006
€ 3.00
22
2434137100
ref: 22
GEAR,FOURTH DRIVEN
2434137100
€ 22.00
23
2435132400
ref: 23
GEAR,FIFTH DRIVEN
2435132400
€ 60.00
24
0916040003
ref: 24
WASHER
0916040003
€ 1.50
25
0926417001
ref: 25
BEARING(17X36X12)
0926417001
€ 27.00
26
0926222013
ref: 26
BEARING(22X56X16)
0926222013
€ 58.00
27
0928230002
ref: 27
OIL SEAL (30X47X5)
0928230002
€ 17.00
28
0928330025
ref: 28
SEAL,OIL(30X47X7)
0928330025
€ 14.00
29
2475132400
ref: 29
PLATE,DRIVESHAFT OIL
€ 3.00
30
0211206128
ref: 30
SCREW 6X12
0211206128
€ 2.00
31
2475232400
ref: 31
RETAINER,DRIVE SHAFT BEARING
2475232400
€ 3.50
32
0212206128
ref: 32
SCREW
0212206128
€ 3.00
33
2626032404
ref: 33
GEAR,KICK STARTER IDLER(NT:25)
2626032404
€ 58.50
34
0938017001
ref: 34
CIRCLIP
0938017001
€ 2.00
35
0821117241
ref: 35
WASHER
0821117241
€ 2.00
36
2751132401
ref: 36
SPROCKET,ENGINE(NT:15)
2751132401
€ 19.00
37
2753132400
ref: 37
SPACER,ENGINE SPROCKET
2753132400
€ 14.50
38
0928021008
ref: 38
O RING(D:2.5,ID:21)
0928021008
€ 2.00
39
0914018006
ref: 39
NUT
0914018006
€ 4.50
40
0916722012
ref: 40
WASHER,LOCK
0916722012
€ 1.50
41
2760037330
ref: 41
CHAIN ASSEMBLY,DRIVE
€ 80.00
