ELECTRICAL

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

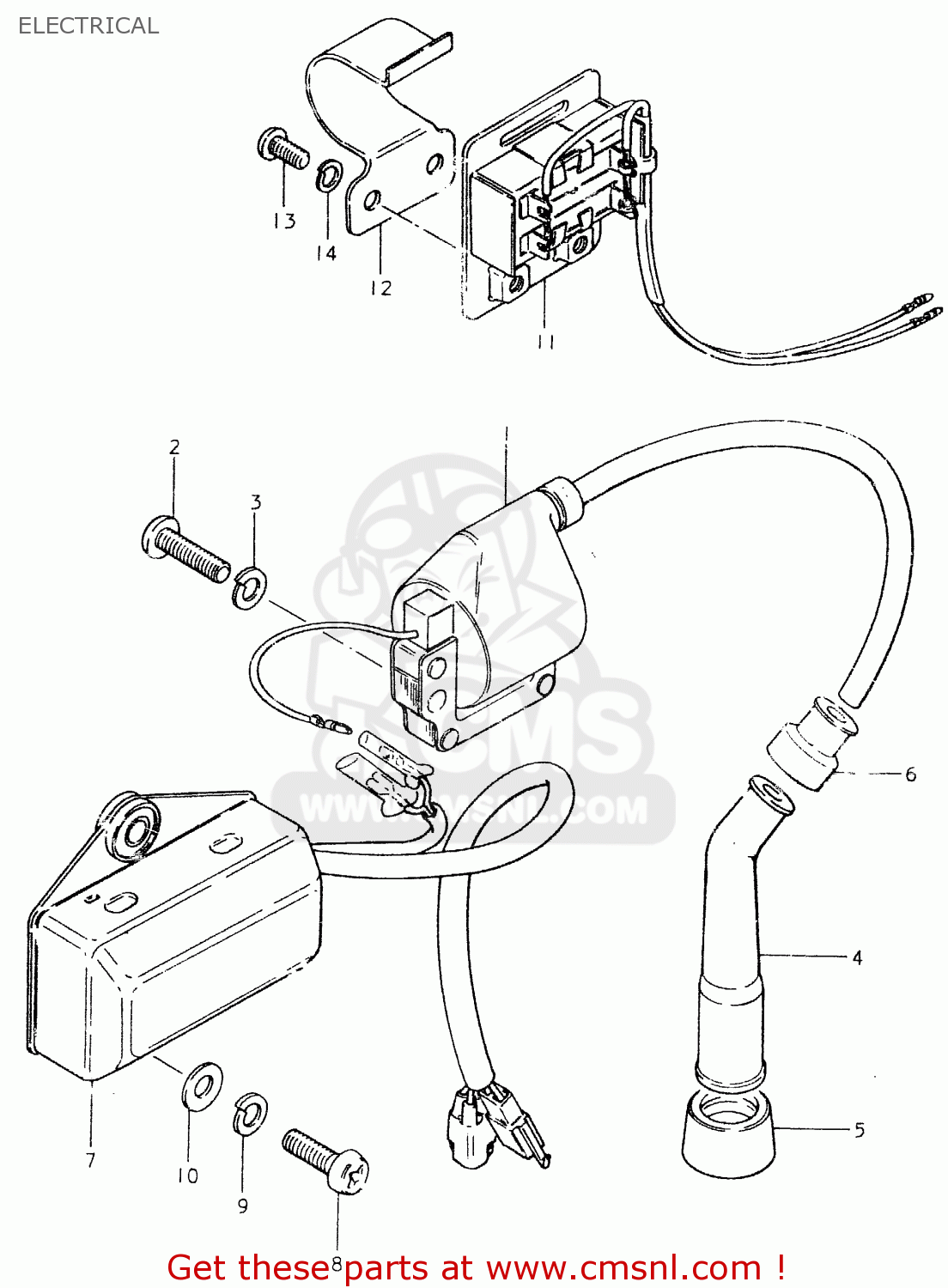

Electrical diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

3341043010
ref: 1

COIL ASSEMBLY,IGNITION

€ 89.50

0211206208
ref: 2

SCREW

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

3351045010
ref: 4

CAP ASSY,SPARK PLUG

€ 23.00

3354132410
ref: 5

SEAL,SPARK PLUG

€ 7.00

3354298000
ref: 6

SEAL,SPARK PLU

€ 4.50

3290032450
ref: 7

CDI UNIT

€ 364.00

0211206208
ref: 8

SCREW

€ 2.00

0832121068
ref: 9

LOCK WASHER

€ 2.50

0832221068
ref: 10

WASHER

€ 2.00

3651032400
ref: 11
E4,E25,E34

RESISTOR ASSY, CITY LAMP

€ 31.00

3651132410
ref: 12
E4,E25,E34

CLAMP

€ 0.00

0211206128
ref: 13
E4,E25,E34

SCREW 6X12

€ 2.00

0832121068
ref: 14
E4,E25,E34

LOCK WASHER

€ 2.50
