FRONT FENDER

SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

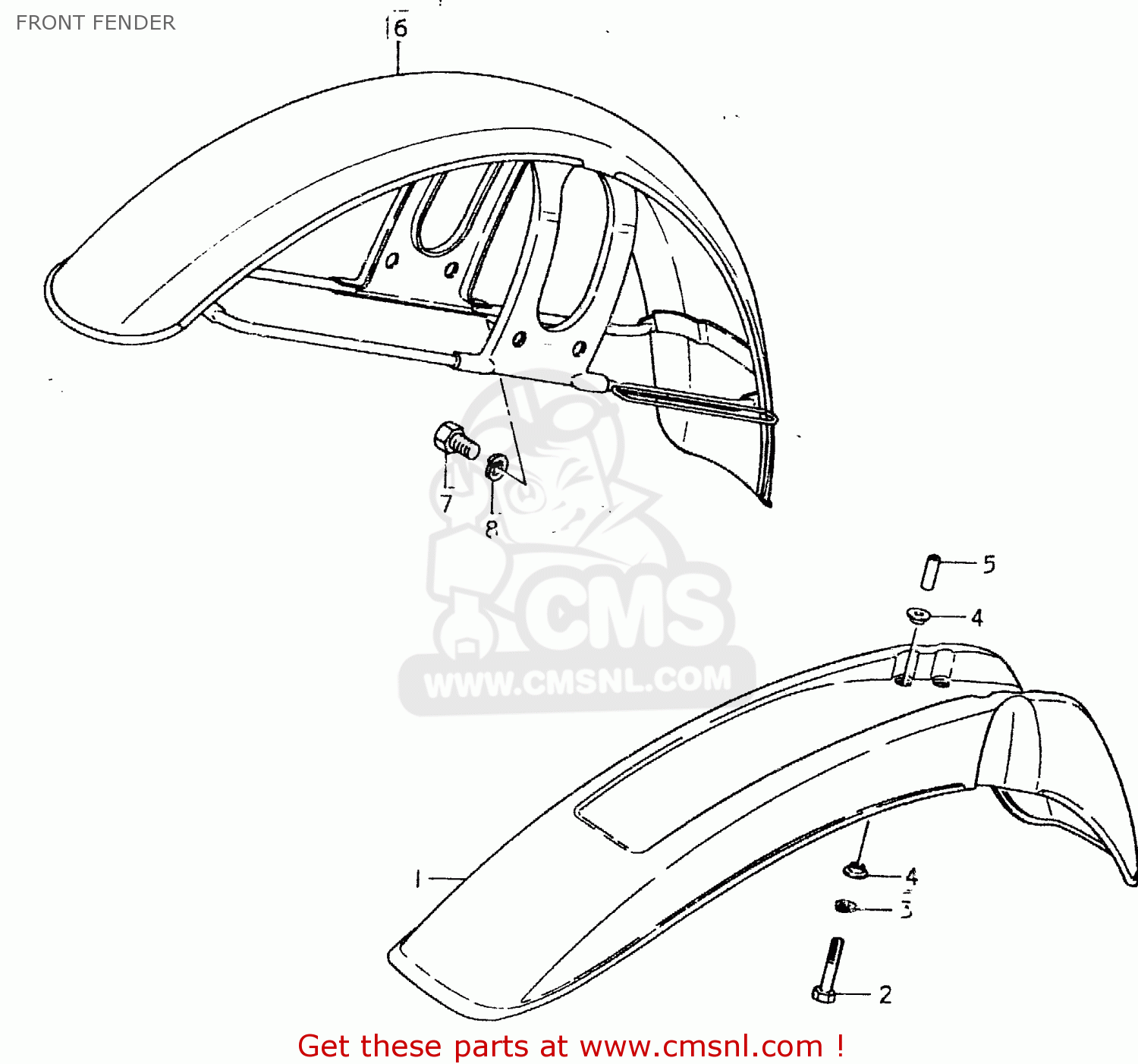

Front fender diagram SP400 1980 (T) (01 02 04 E06 E15 E16 E17 E21 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

531113240005K
ref: 1

FENDER, FRONT

€ 0.00

5311132400185
ref: 1

FENDER,FRONT

€ 0.00

5311132400737
ref: 1

FENDER,FRONT

€ 104.50

531113240008U
ref: 1
E6

FENDER, FRONT

€ 0.00

0110706458
ref: 2

BOLT

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

0918006048
ref: 4

SPACER

€ 2.00

0918006024
ref: 5

SPACER (6.8X10X27.4)

€ 3.00

5311032401
ref: 6

FENDER,FR

€ 190.00

0110708168
ref: 7

BOLT

€ 2.00

0832121088
ref: 8

LOCK WASHER

€ 2.00
