CAM SHAFT - VALVE (MODEL R/S)
DR650SE 1994 (R) USA (E03)

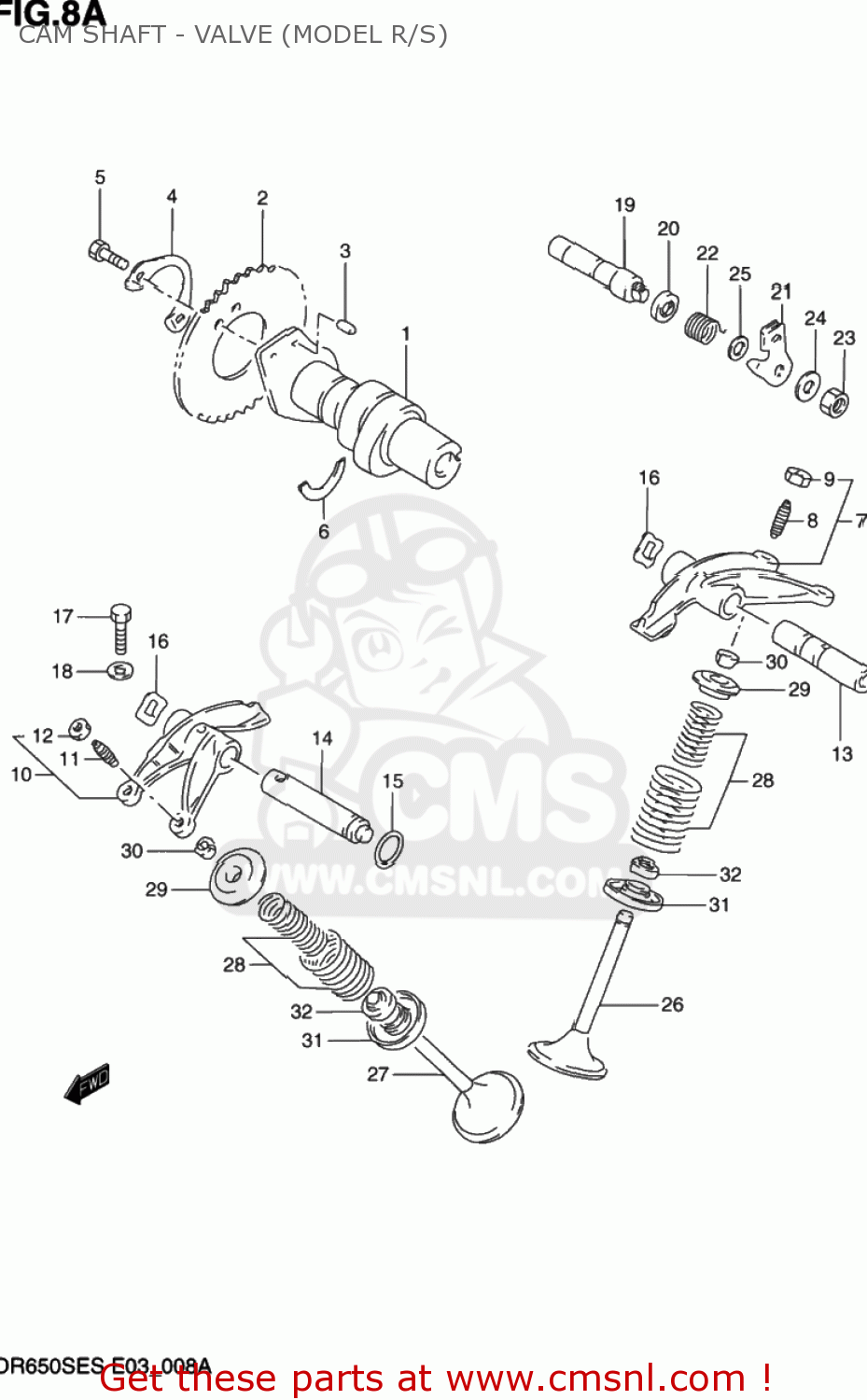

Cam shaft - valve (model r/s) diagram DR650SE 1994 (R) USA (E03)
CAM SHAFT - VALVE (MODEL R/S) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271112D00
ref: 1
CAMSHAFT
€ 428.50
2
1274137400
ref: 2
SPROCKET,CAMSHAFT(NT:42)
€ 34.50
3
0422105109
ref: 3
PIN
€ 1.50
4
1274744000
ref: 4
12747-44001
WASHER,CAM CHAIN SPROCKET
€ 2.00
5
0911106027
ref: 5
BOLT(6X12.5)
€ 1.50
6
0939025003
ref: 6
C RING
€ 2.50
7
1284012D00
ref: 7
ARM,VALVE ROCKER INTAKE
€ 112.00
8
1284232411
ref: 8
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10
1285037401
ref: 10
ARM,VALVE ROCKER EXHAUST
€ 123.00
11
1284232411
ref: 11
SCREW,TAPPET ADJUSTING
€ 5.00
12
1284332400
ref: 12
NUT,ADJUSTING SCREW
€ 2.50
13
1286112D00
ref: 13
SHAFT,VALVE ROCKER ARM INTAKE
€ 19.50
14
1287114A00
ref: 14
SHAFT,EXHAUST VALVE ROCKER ARM
€ 20.00
15
0928009005
ref: 15
O RING(D:1.9,ID:8.6)
€ 4.00
16
0916412018
ref: 16
WASHER
€ 1.50
17
0155006303
ref: 17
01550-0630A
BOLT
€ 2.50
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19
1294112D10
ref: 19
SHAFT,DECOMP
€ 24.50
20
0928210014
ref: 20
SEAL,OIL(10X17X6)
€ 6.50
21
1294212D11
ref: 21
LEVER,DECOMPRESSION SHAFT
€ 5.50
22
0944817029
ref: 22
09448-17029-XC0
SPRING
€ 6.50
23-1
0831000083
ref: 23-1
08310-0008A
NUT
€ 1.50
23-2
0831610083
ref: 23-2
08316-1008B
NUT
€ 3.00
24
0832201083
ref: 24
08322-0108A
WASHER
€ 1.50
25
0916008074
ref: 25
WASHER(8.5X13X1.6)
€ 2.50
26
1291112D00
ref: 26
VALVE,INTAKE
€ 28.50
27
1291237400
ref: 27
VALVE,EXHAUST
€ 61.00
28
1292037402
ref: 28
SPRING SET,VALVE
€ 12.50
29
1293145000
ref: 29
12931-45001
RETAINER,VALVE SPRING
€ 6.00
30
1293245010
ref: 30
COTTER VALVE
€ 2.50
31
1293337400
ref: 31
SEAT,VALVE SPRING
€ 3.50
32
0928907002
ref: 32
SEAL,OIL(7X14.4X9)
€ 3.00
