Buy Suzuki DR Parts Online
home
REAR CUSHION LEVER (MODEL N/P)
DR650SE 1994 (R) USA (E03)

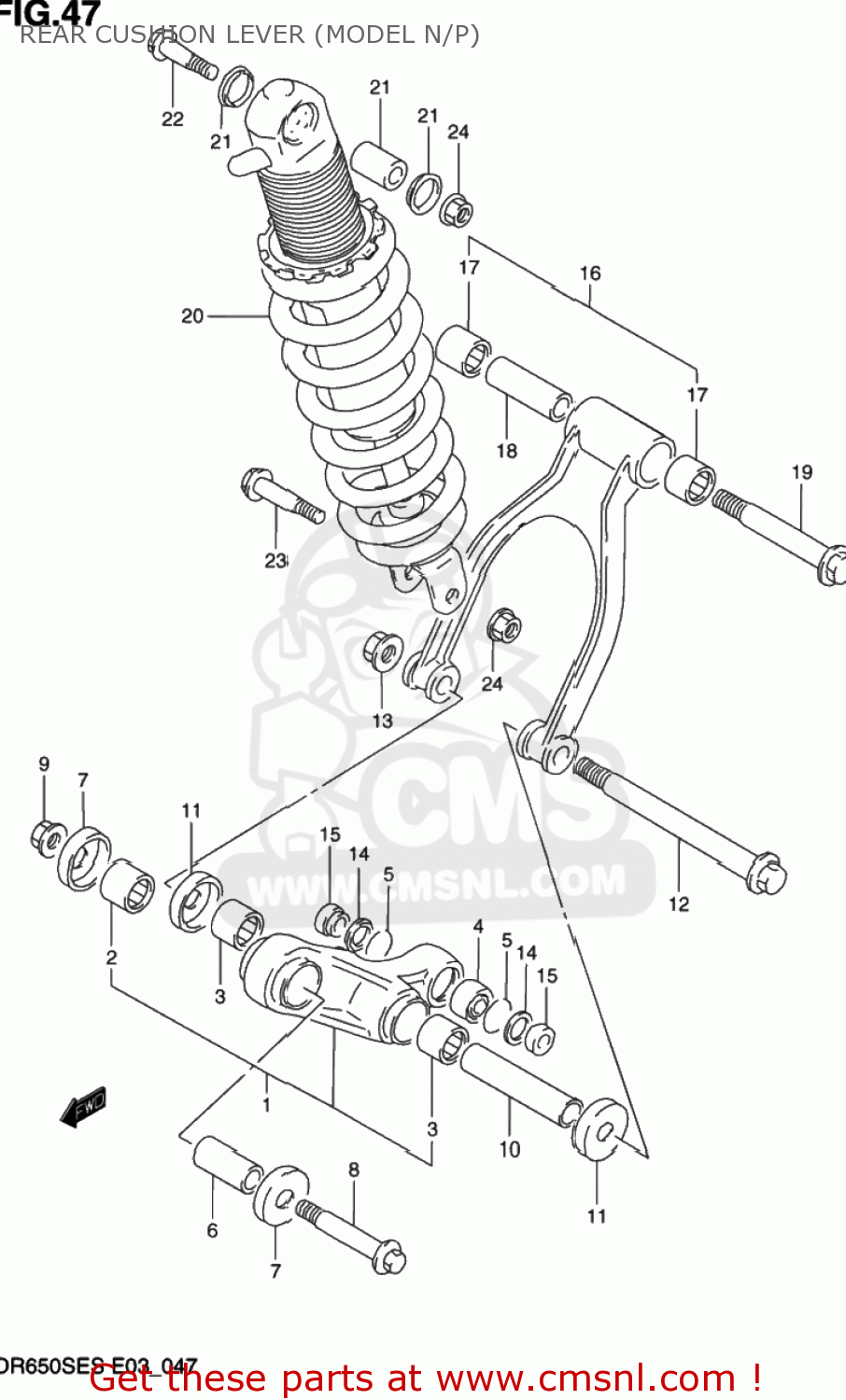

Rear cushion lever (model n/p) diagram DR650SE 1994 (R) USA (E03)
REAR CUSHION LEVER (MODEL N/P) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260012870
ref: 1
62600-12871
LEVER SET,REAR CUSHION
€ 219.00
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
6217527C00
ref: 4
62175-00B00
BEARING,REAR SHOCK ABSORBER
€ 66.00
5
6227714200
ref: 5
62657-34A01
RING
€ 1.50
6
6231744B00
ref: 6
SPACER,RR CUSHION LEVER FR
€ 14.00
7
6262408D00
ref: 7
SEAL,RR CUSHION LEVER FR DUST
€ 13.50
8
6265800B20
ref: 8
BOLT,RR CUSHION LEVER FR
€ 8.50
9
0831931128
ref: 9
08319-3112A
NUT 12MM
€ 4.00
10
0918014013
ref: 10
SPACER (14X20X78)
€ 20.00
11
6262408D10
ref: 11
SEAL,RR CUSHION LEVER CTR DUST
€ 19.50
12
6262244B00
ref: 12
BOLT,RR CUSHION ROD LWR
€ 17.00
13
0831931148
ref: 13
08319-3114A
NUT
€ 9.00
14
6222614520
ref: 14
SEAL,DUST RR SHOCK ABSORBER
€ 12.50
15
6268414520
ref: 15
COLLAR
€ 7.00
16
6260044821
ref: 16
ROD SET,REAR CUSHION,LEFT
€ 211.50
17
0926320071
ref: 17
BEARING(20X27X23.5)
€ 21.50
18
0918014015
ref: 18
SPACER (14X20X63)
€ 14.50
19
6262144B00
ref: 19
BOLT,RR CUSHION ROD UPR
€ 14.00
20
6210012E00
ref: 20
ABSORBER ASSEMBLY,REAR SHOCK
€ 826.00
21
6217727A00
ref: 21
COLLAR
€ 14.50
22
0910310064
ref: 22
BOLT(10X50)
€ 4.50
23
0910310213
ref: 23
BOLT(10X52)
€ 4.00
24
0915910058
ref: 24
09159-10115
NUT
€ 4.00
