CARBURETOR (MODEL R/S)
DR650SE 1994 (R) USA (E03)

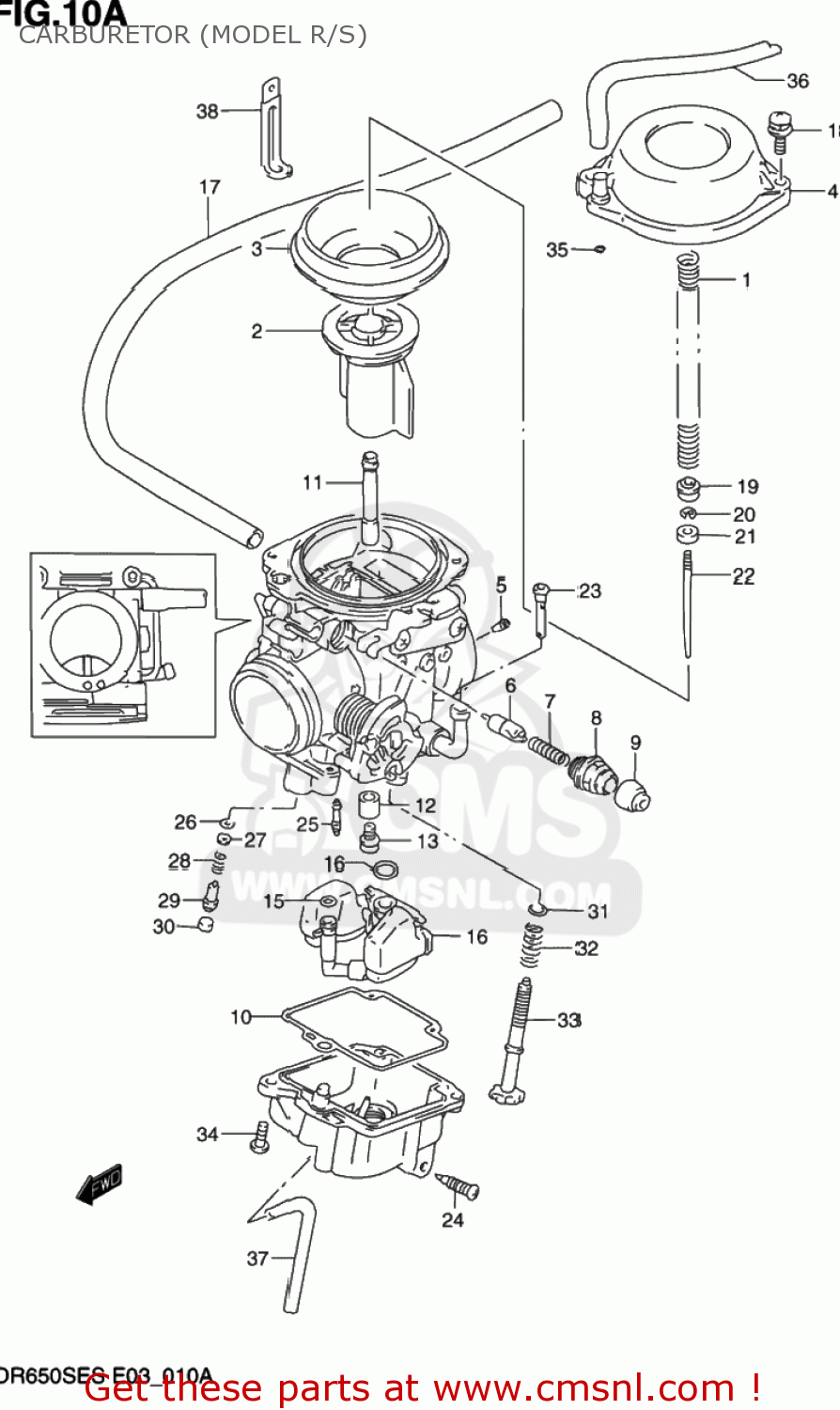

Carburetor (model r/s) diagram DR650SE 1994 (R) USA (E03)
CARBURETOR (MODEL R/S) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320012EF0
ref:
CARBURETOR ASSEMBLY
€ 0.00
1320012EG0
ref:
CARBURETOR ASSEMBLY
€ 337.00
1
1341717D00
ref: 1
SPRING
€ 5.50
2
1350112D00
ref: 2
VALVE,PISTON
€ 71.50
3-1
1350707D00
ref: 3-1
13507-07D01
DIAPHRAGM
€ 24.50
3-2
1350707D01
ref: 3-2
DIAPHRAGM
€ 24.50
4
1350212D00
ref: 4
COVER,DIAPHRAGM
€ 38.50
5
0949328007
ref: 5
09493-28006
JET,AIR
€ 15.50
6
1341112D00
ref: 6
PLUNGER
€ 18.00
7
1341722010
ref: 7
SPRING
€ 3.00
8
1341843410
ref: 8
HOLDER,GUIDE
€ 6.50
9
1368104010
ref: 9
CAP
€ 3.00
10
1325844B00
ref: 10
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
11
0949400754
ref: 11
JET,NEEDLE(Y-2)
€ 21.00
12
1333107D00
ref: 12
RING
€ 4.50
13
0949127010
ref: 13
JET,MAIN(137.5)
€ 10.50
14
1325012E00
ref: 14
13250-12EH0
FLOAT/NEEDLE VALVE ASSEMBLY
€ 79.50
15
1327847090
ref: 15
O RING
€ 2.00
16
1337444080
ref: 16
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
17
0935465113600
ref: 17
HOSE(6.5X11.5X600)
€ 26.00
18
0211275163
ref: 18
02112-7516A
SCREW
€ 2.50
19
1333112D00
ref: 19
RING
€ 4.50
20
1339431210
ref: 20
CLIP,NEEDLE
€ 3.50
21
1338712E00
ref: 21
13387-07D00
RING
€ 4.50
22
1338312E20
ref: 22
NEEDLE,JET
€ 0.00
23
1323612C00
ref: 23
FILTER
€ 5.00
24
1324713A00
ref: 24
13247-02340
SCREW,DRAIN
€ 5.50
25
0949252010
ref: 25
JET,PILOT(52.5)
€ 12.50
26
1329529900
ref: 26
O RING,PILOT AIR SCREW
€ 4.00
27
1329129900
ref: 27
WASHER
€ 2.00
28
1326847070
ref: 28
SPRING
€ 5.00
29
1327947070
ref: 29
SCREW,PILOT
€ 11.50
30
1328105A00
ref: 30
PLUG
€ 3.50
31
1342738300
ref: 31
WASHER
€ 1.50
32
1327124D00
ref: 32
SPRING
€ 5.00
33
1326713D01
ref: 33
ADJUSTER
€ 15.00
34
1360105148
ref: 34
13601-05148-XC0
SCREW(5X14)
€ 3.00
35
1327802340
ref: 35
O RING
€ 1.50
36
0935445853600
ref: 36
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
37
1368418900
ref: 37
09355-30705-600
HOSE
€ 13.50
38-1
0940406402
ref: 38-1
09404-06432
CLAMP
€ 2.50
38-2
0940406429
ref: 38-2
CLAMP(L:45)
€ 2.50
