SPEEDOMETER (MODEL N/P)
DR650SE 1994 (R) USA (E03)

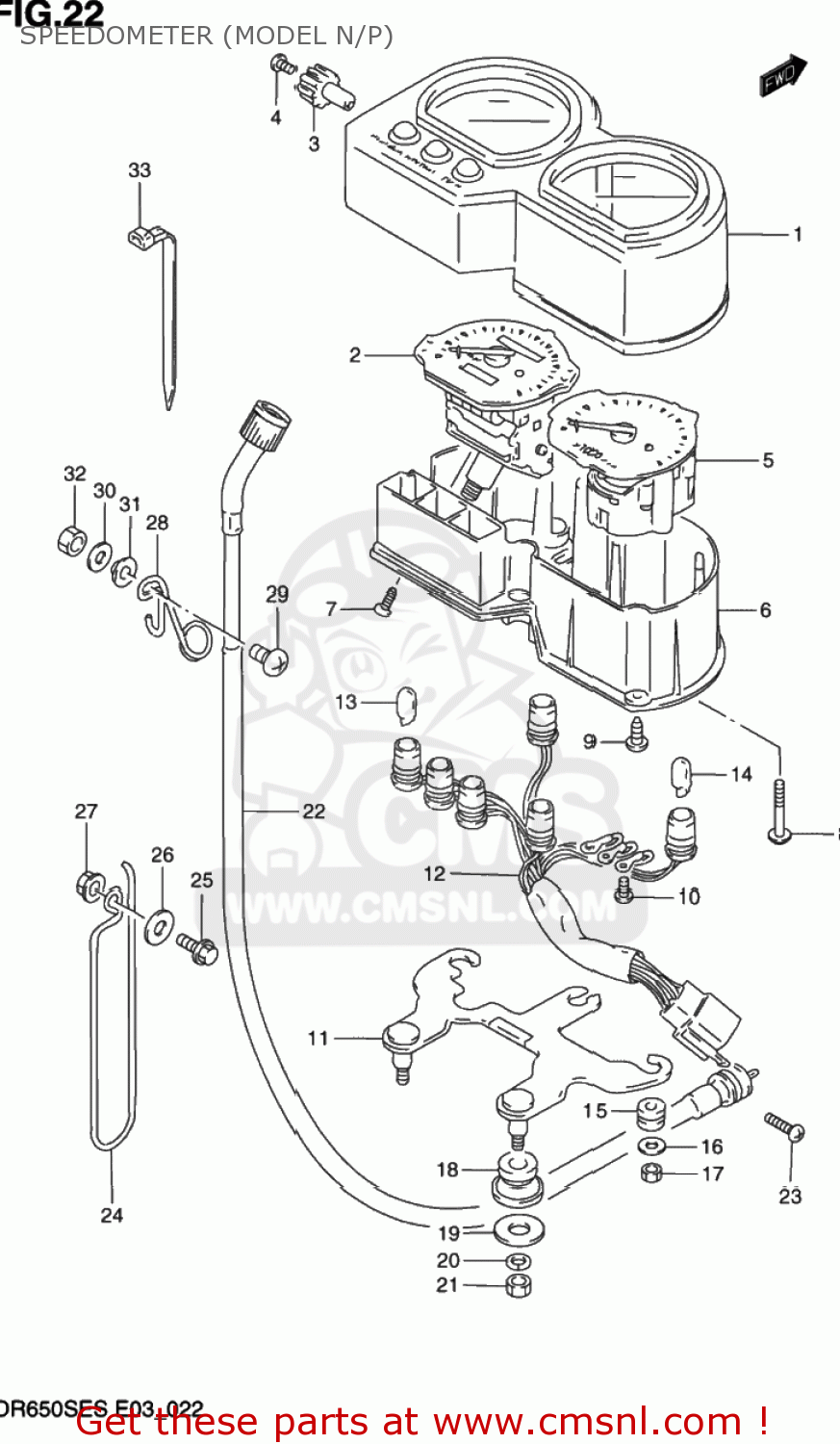

Speedometer (model n/p) diagram DR650SE 1994 (R) USA (E03)
SPEEDOMETER (MODEL N/P) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3415012E00
ref: 1
34150-12E10
VISOR
€ 76.00
2
3412012E00
ref: 2
SPEEDOMETER (MILE/KILO)
€ 0.00
3
3498029B50
ref: 3
34124-34A00
KNOB
€ 4.00
4
3498113A00
ref: 4
09139-02003
ROTOR,SPEED
€ 2.00
5
3422012E00
ref: 5
TACHOMETER
€ 444.50
6
3411112E00
ref: 6
CASE,METER
€ 52.50
7
0211274106
ref: 7
02112-7410B
SCREW
€ 2.00
8
3414912E00
ref: 8
34283-32B00
SCREW
€ 2.00
9
0351104145
ref: 9
03512-04149
SCREW
€ 1.50
10
0211233106
ref: 10
02112-33103
SCREW
€ 1.50
11
3495012E00
ref: 11
BRACKET
€ 55.50
12
3417012E00
ref: 12
SOCKET,METER
€ 62.00
13
0947112028
ref: 13
BULB(12V3.4W,T10)
€ 3.50
14
0947112077
ref: 14
BULB(12V1.7W,T10,WB121)
€ 1.00
15
3418932B00
ref: 15
CUSHION
€ 5.00
16
0916005017
ref: 16
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
17
0831011057
ref: 17
08310-00057
NUT 5MM
€ 2.50
18
3495631001
ref: 18
CUSHION,METER BRACKET
€ 4.50
19
0916008057
ref: 19
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
20
0832121084
ref: 20
08321-0108A
WASHER,LOCK,8.
€ 2.50
21
0831012085
ref: 21
08310-0008A
NUT ,8MM
€ 1.50
22
3491012E00
ref: 22
CABLE ASSY,SPEEDOMETER
€ 40.50
23
0211205168
ref: 23
02112-05167
SCREW
€ 2.50
24
3493814D30
ref: 24
GUIDE,METER CABLE NO.2
€ 8.00
25
0151706207
ref: 25
01550-06207
BOLT 6X20
€ 2.50
26
0916006020
ref: 26
09160-06066
WASHER
€ 2.00
27
0915906017
ref: 27
08319-31067
NUT
€ 2.50
28
3493814D20
ref: 28
34938-14D21
GUIDE,METER CABLE NO.3
€ 6.50
29
0214206167
ref: 29
SCREW
€ 2.00
30
0916006057
ref: 30
09160-06109
WASHER
€ 2.00
31
0916906053
ref: 31
WASHER
€ 2.00
32
0831011068
ref: 32
08310-00067
NUT
€ 2.50
33
0940714403
ref: 33
CLAMP(L:125)
€ 2.50
