STARTER CLUTCH (MODEL R/S)
DR650SE 1994 (R) USA (E03)

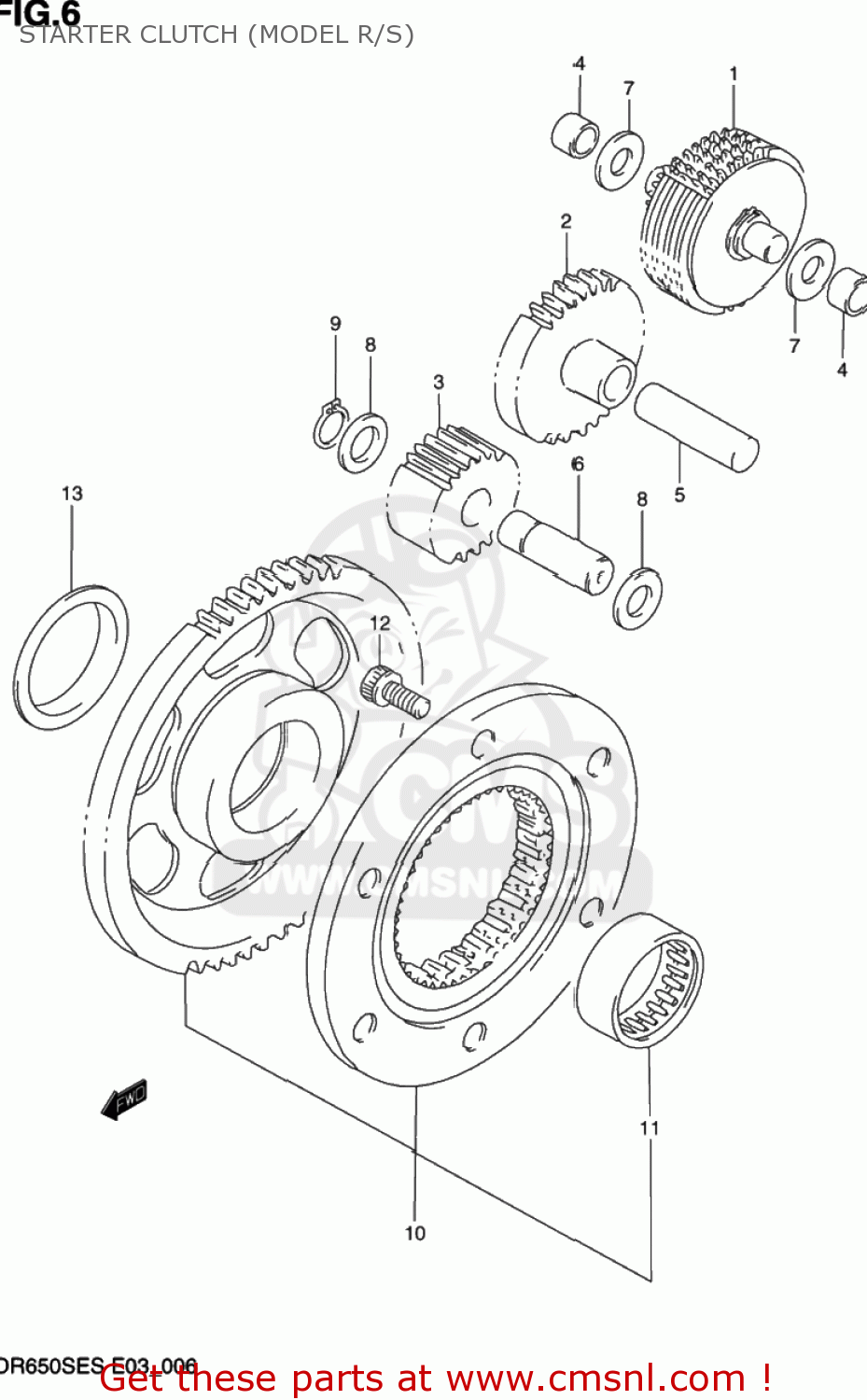

Starter clutch (model r/s) diagram DR650SE 1994 (R) USA (E03)
STARTER CLUTCH (MODEL R/S) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1260012D00
ref: 1
12600-12D01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 122.50
1
1260012D00
ref: 1
12600-12D01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 122.50
2
1261212D01
ref: 2
GEAR,STARTER IDLE NO.2(NT:27)
€ 40.50
3
1261312D00
ref: 3
GEAR,STARTER IDLE NO.3
€ 49.00
4
1261831D01
ref: 4
BUSH,LIMITER GEAR SHAFT
€ 17.50
5
0920212002
ref: 5
09206-12006
PIN
€ 7.50
6
1261512D00
ref: 6
SHAFT,STARTER IDLE GEAR
€ 7.00
7
0821110221
ref: 7
WASHER
€ 2.50
8
0822112205
ref: 8
SHIM
€ 1.50
9
0833131126
ref: 9
08331-3112A
CIRCLIP,12 MM
€ 2.00
10
1260012810
ref: 10
12600-09860
CLUTCH SET,STARTER
€ 210.00
11
0926331009
ref: 11
BEARING(31X39X17.8)
€ 25.50
12
0713008203
ref: 12
07130-0820B
BOLT
€ 3.00
13
0821140521
ref: 13
09181-40195
SHIM
€ 5.50
