STEERING STEM
DR650SE 1994 (R) USA (E03)

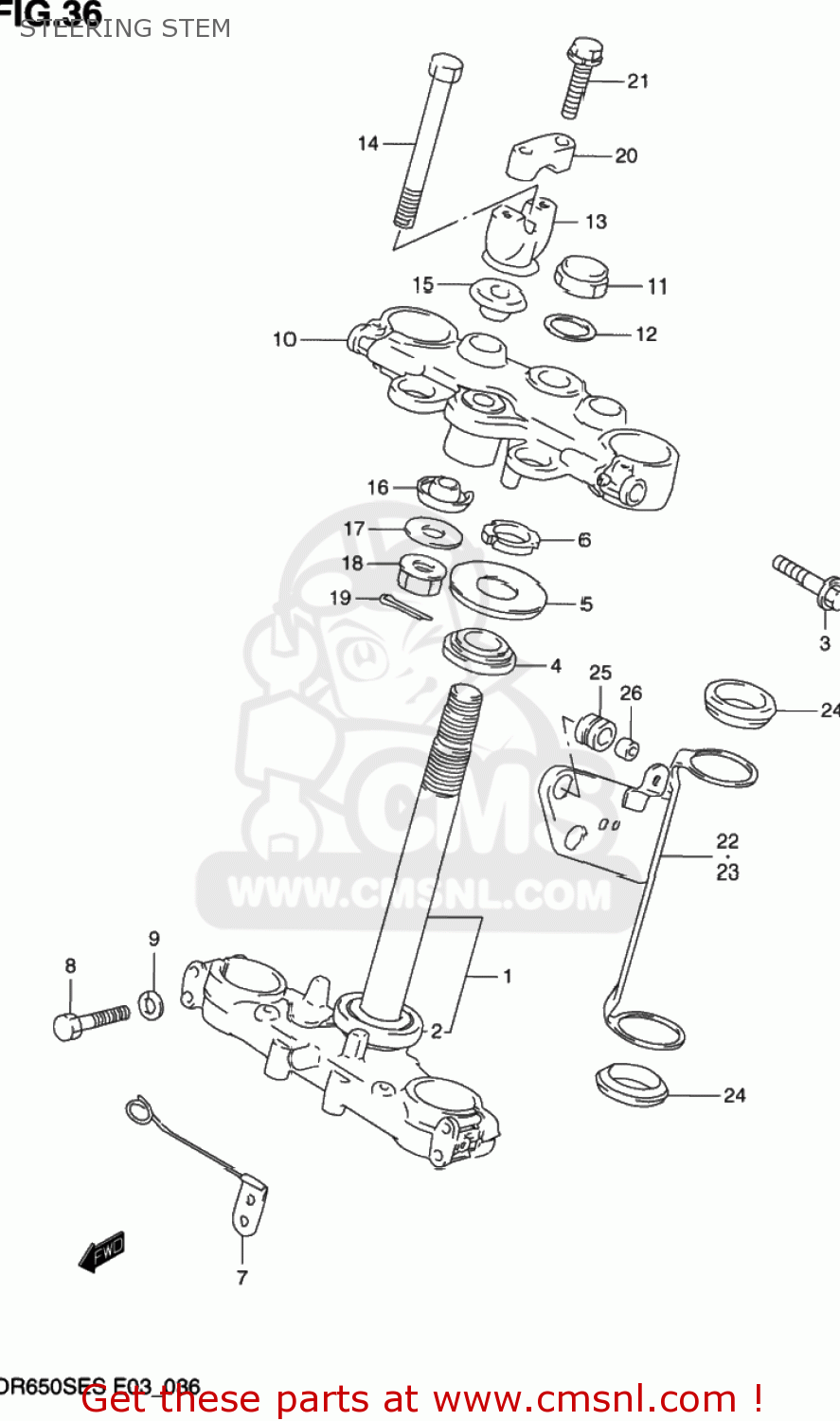

Steering stem diagram DR650SE 1994 (R) USA (E03)
STEERING STEM DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141012E00
ref: 1
STEM,STEERING
€ 725.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3-1
0151710458
ref: 3-1
01550-1045B
BOLT 10X45
€ 3.00
3-2
0155010457
ref: 3-2
09103-10284
BOLT
€ 5.00
3-3
0910310284
ref: 3-3
BOLT(10X45)
€ 5.00
4
0926525008
ref: 4
09265-25019
TAPER,ROLLER BEARING
€ 48.50
5
5164340200
ref: 5
SEAL,STEERING UPR DUST
€ 7.50
6
5163140200
ref: 6
NUT,STEERING STEM
€ 12.00
7
3493844B10
ref: 7
GUIDE, SPEEDOMETER CABLE
€ 7.50
8-1
0110708458
ref: 8-1
01500-08453
BOLT 8X45
€ 2.50
8-2
0157008457
ref: 8-2
BOLT
€ 0.00
9-1
0832131087
ref: 9-1
08321-01087
WASHER,LOCK
€ 2.00
9-2
0832101087
ref: 9-2
WASHER,LOCK
€ 2.00
10
5131112E00
ref: 10
HEAD,STEERING STEM
€ 290.50
11
5135324B00
ref: 11
NUT,CAP
€ 21.50
12
5135624B01
ref: 12
WASHER(22.5X32X1.6)
€ 3.00
13
5622112E00
ref: 13
HOLDER,HANDLE LWR
€ 33.50
14-1
5132114200
ref: 14-1
56321-28C00
BOLT,HANDLE HOLDER
€ 6.50
14-2
5632128C00
ref: 14-2
BOLT
€ 6.50
15
5624114200
ref: 15
DAMPER,UPR
€ 32.00
16
5624214200
ref: 16
DAMPER,LWR
€ 21.50
17
5135640400
ref: 17
09160-10035
WASHER,HANDLEBAR HOLDER
€ 2.00
18
0831931107
ref: 18
NUT
€ 3.00
19
0411120308
ref: 19
04111-2030A
COTTER PIN
€ 1.00
20
5621112E00
ref: 20
HOLDER,HANDLE UPR
€ 25.50
21-1
0114708358
ref: 21-1
01570-0835A
BOLT
€ 2.00
21-2
0157008357
ref: 21-2
01570-0835A
BOLT
€ 2.00
22
5153012E00
ref: 22
COVER,FORK,R
€ 47.50
23
5154012E00
ref: 23
COVER,FORK,L
€ 47.50
24-1
5155314A20
ref: 24-1
51553-38C00
CUSHION,HEADLAMP BRACKET
€ 8.50
24-2
5155338C00
ref: 24-2
DAMPER,HEADLAMP HSG BRACKET
€ 8.50
25
0932009018
ref: 25
CUSHION
€ 2.00
26
0918006030
ref: 26
09180-06310
SPACER (6.8X10X10)
€ 2.00
