WIRING HARNESS (MODEL N/P)
DR650SE 1994 (R) USA (E03)

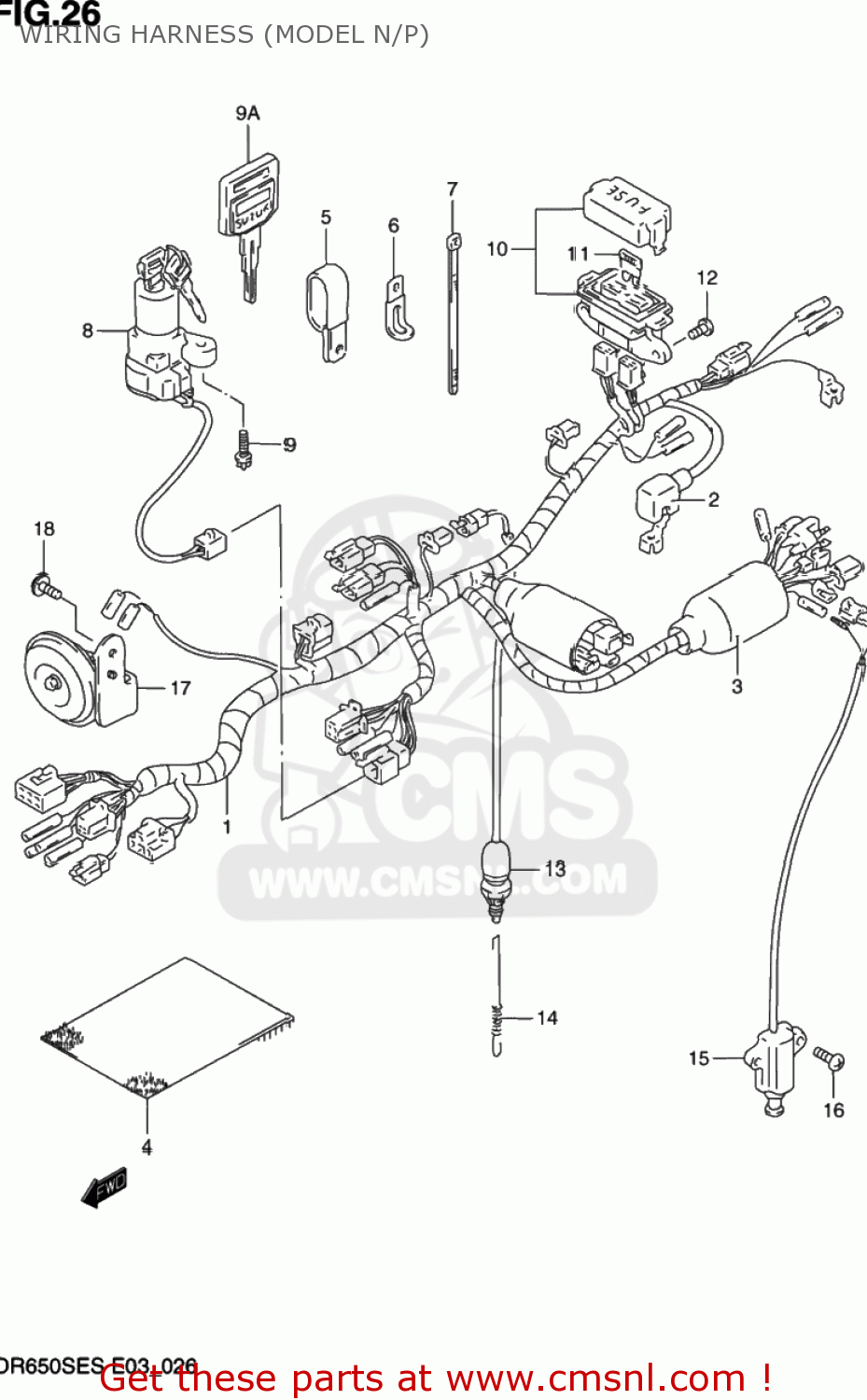

Wiring harness (model n/p) diagram DR650SE 1994 (R) USA (E03)
WIRING HARNESS (MODEL N/P) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661012E00
ref: 1
HARNESS,WIRING
€ 367.00
2
3362444B00
ref: 2
33624-15D00
CAP,BATTERY TERMINAL
€ 6.00
3
3661830000
ref: 3
BOOT,WIRING HARNESS
€ 8.50
4
3661844B01
ref: 4
36618-15D20
BOOT,WIRING HARNESS
€ 12.00
5-1
0940307315
ref: 5-1
CLAMP
€ 3.50
5-2
0940319406
ref: 5-2
CLAMP
€ 3.50
6-1
0940405402
ref: 6-1
09404-06432
CLAMP
€ 2.00
6-2
0940405401
ref: 6-2
09404-06429
CLAMP
€ 2.50
6-3
0940406401
ref: 6-3
09404-06432
CLAMP L:35
€ 2.50
6-4
0940406607
ref: 6-4
CLAMP(L:55)
€ 3.00
6-5
0940408404
ref: 6-5
09404-08420
CLAMP
€ 3.00
6-6
0940408413
ref: 6-6
09404-08420
CLAMP
€ 3.50
7-1
0940710404
ref: 7-1
CLAMP(L:100)
€ 4.00
7-2
0940712402
ref: 7-2
CLAMP(L:120)
€ 3.00
7-3
0940714402
ref: 7-3
09407-14407
CLAMP
€ 4.00
7-4
0940714403
ref: 7-4
CLAMP(L:125)
€ 2.50
7-5
0940718402
ref: 7-5
CLAMP(L:165)
€ 2.50
7-6
0940725401
ref: 7-6
CLAMP(L:235)
€ 4.00
7-7
0940730401
ref: 7-7
CLAMP(L:300)
€ 4.50
8-1
3710012D10
ref: 8-1
37100-12D11
LOCK ASSEMBLY,STEERING
€ 128.00
8-2
3710012E00
ref: 8-2
37100-12D11
LOCK ASSEMBLY,STEERING
€ 128.00
9
0913906026
ref: 9
SCREW(6X18)
€ 2.50
9A
3714626D10
ref: 9A
KEY,BLANK
€ 41.50
10
3674012E00
ref: 10
BOX ASSEMBLY,FUSE
€ 36.50
11-1
0948110101
ref: 11-1
FUSE(10A)
€ 2.50
11-2
0948120101
ref: 11-2
FUSE(20A)
€ 2.00
12
0214206126
ref: 12
02142-0612A
SCREW
€ 2.00
13
3774045D00
ref: 13
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
14
0944306079
ref: 14
SPRING
€ 4.00
15
3784044A11
ref: 15
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
16
0214206205
ref: 16
02142-0620A
SCREW, CENTER
€ 2.00
17
3850014A20
ref: 17
38500-44B00
HORN ASSEMBLY
€ 48.00
18
0113706125
ref: 18
01570-0612A
BOLT, BRACKET (6X12)
€ 1.50
