TRANSMISSION
DR650SE 1994 (R) USA (E03)

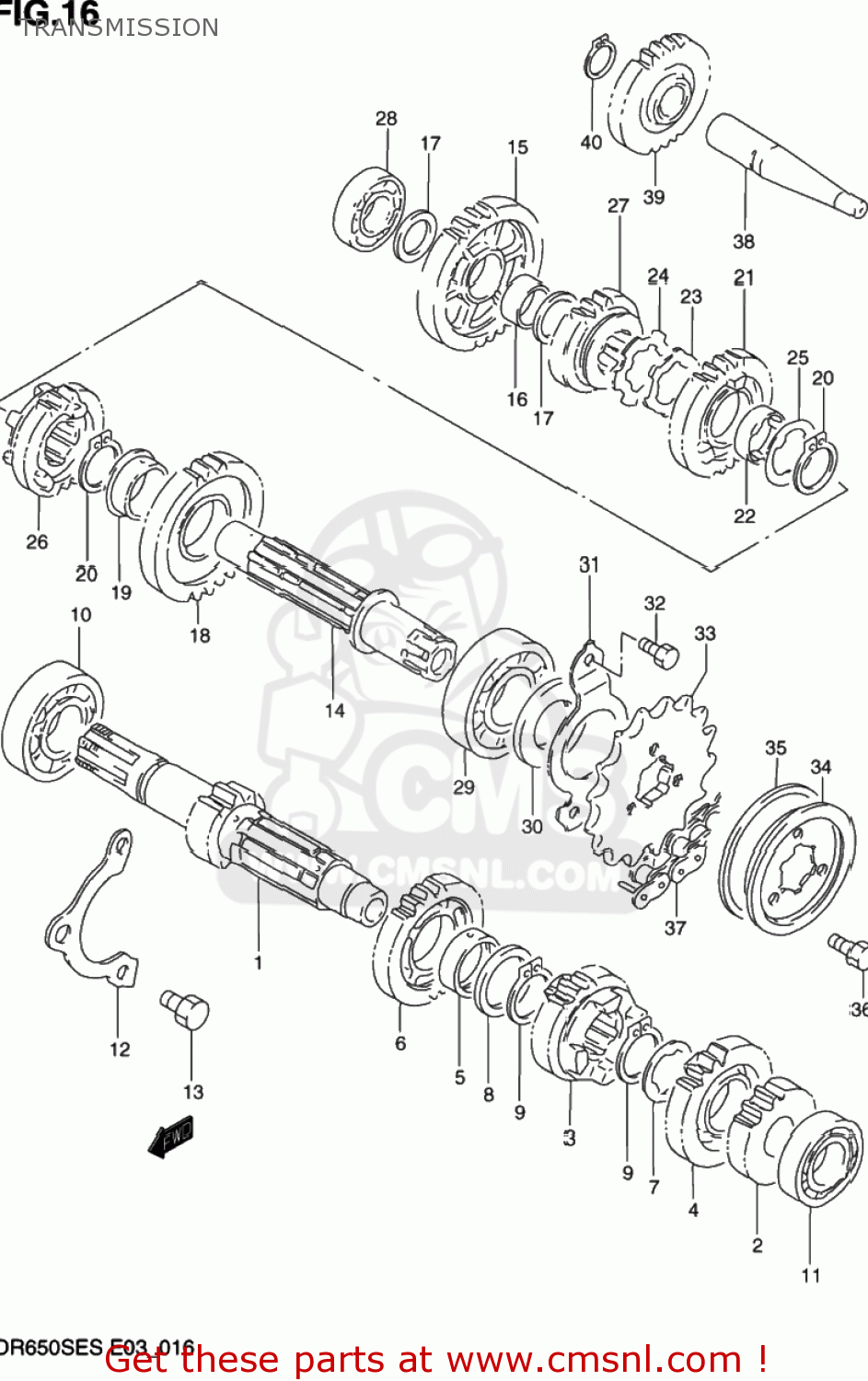

Transmission diagram DR650SE 1994 (R) USA (E03)
TRANSMISSION DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412114A00
ref: 1
SHAFT,COUNTER
€ 185.50
2
2422114A00
ref: 2
24221-14A10
GEAR,SECOND DRIVE
€ 66.50
3
2423112D02
ref: 3
GEAR,3RD DRIVE
€ 146.50
4
2424114A00
ref: 4
24241-14A10
GEAR,FOURTH DRIVE
€ 69.00
5
0930025023
ref: 5
24252-19F00
BUSHING 25X29X10
€ 9.50
6
2425114A00
ref: 6
GEAR,5TH DRIVE
€ 105.00
7
0916725012
ref: 7
WASHER,LOCK
€ 3.50
8
0821125341
ref: 8
09181-25167
WASHER
€ 3.50
9
0938025003
ref: 9
RING,SNAP
€ 3.00
10
0926222014
ref: 10
09262-22028
BEARING
€ 59.50
11-1
0926217018
ref: 11-1
09262-17027
BEARING
€ 25.00
11-2
0926217027
ref: 11-2
BEARING(17X40X12)
€ 25.00
11-3
0926217018
ref: 11-3
09262-17027
BEARING
€ 25.00
12
2474114A00
ref: 12
RETAINER,CNTR SHAFT BEARING
€ 5.00
13-1
0110708166
ref: 13-1
01500-0816B
BOLT, 8X1.25X1
€ 2.00
13-2
0150008163
ref: 13-2
01500-0816B
BOLT
€ 2.00
14
2413114A00
ref: 14
SHAFT,DRIVE
€ 121.00
15
2431114A01
ref: 15
GEAR,1ST DRIVEN
€ 67.50
16
0930020032
ref: 16
BUSH(20X24X13)
€ 10.00
17
0821120301
ref: 17
WASHER
€ 3.00
18
2432114A00
ref: 18
GEAR,2ND DRIVEN
€ 118.00
19
0930125002
ref: 19
BUSH
€ 10.50
20
0938025003
ref: 20
RING,SNAP
€ 3.00
21
2433114A05
ref: 21
GEAR,3RD DRIVEN
€ 329.50
22
2433224500
ref: 22
24332-24510
BUSHING
€ 9.50
23
0916925001
ref: 23
WASHER
€ 2.00
24
0916725013
ref: 24
WASHER,LOCK
€ 2.50
25
0916725016
ref: 25
WASHER,LOCK
€ 3.00
26
2434114A01
ref: 26
24341-14A10
GEAR,FOURTH DRIVEN
€ 67.00
27
2435114A00
ref: 27
24351-14A10
GEAR,FIFTH DRIVEN
€ 68.50
28
0926220059
ref: 28
BEARING(20X42X12)
€ 14.50
29
0926225066
ref: 29
BEARING(25X62X17)
€ 44.50
30
0928325076
ref: 30
SEAL,OIL(25X45X5)
€ 9.00
31
2475114A01
ref: 31
RETAINER,DRIVE SHAFT OIL SEAL
€ 7.50
32-1
0110706126
ref: 32-1
01500-0612A
BOLT
€ 2.00
32-2
0150006123
ref: 32-2
01500-0612A
BOLT
€ 2.00
33
2751114A01
ref: 33
SPROCKET,ENGINE(NT:16)
€ 30.00
34-1
2751212D10
ref: 34-1
27512-14A11
PLATE,ENGINE SPROCKET
€ 9.50
34-2
2751214A11
ref: 34-2
PLATE,ENGINE SPROCKET
€ 9.50
35
2751714A00
ref: 35
DAMPER,ENGIN SPROCKET
€ 14.00
36
0911106039
ref: 36
BOLT(6X13)
€ 6.00
37-1
2760013A60114
ref: 37-1
27600-14A10-114
CHAIN ASSEMBLY,DRIVE
€ 112.00
37-2
2760014A10114
ref: 37-2
CHAIN(DID520V,114L)
€ 112.00
38
2622314A01
ref: 38
SHAFT,KICK STARTER IDLE
€ 16.50
39
2626037400
ref: 39
GEAR,KICK STARTER IDLE
€ 36.00
40
0938017001
ref: 40
CIRCLIP
€ 2.00
