REAR WHEEL
DR650SE 1994 (R) USA (E03)

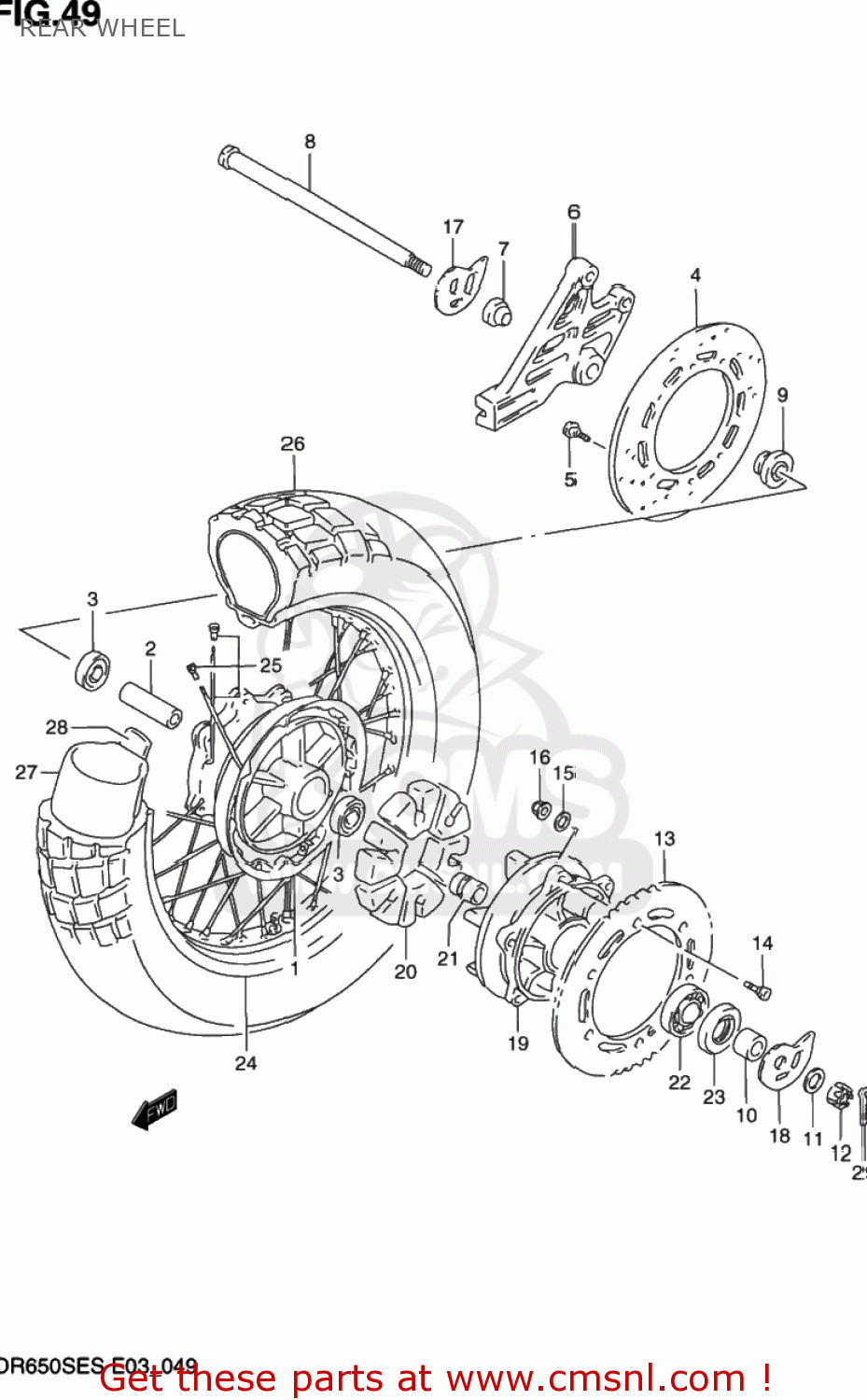

Rear wheel diagram DR650SE 1994 (R) USA (E03)
REAR WHEEL DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411044B20
ref: 1
64111-31D10
HUB COMP,REAR WHEEL
€ 432.50
2
0918017071
ref: 2
SPACER(17.5X25X78)
€ 20.00
3
0812463037
ref: 3
BEARING
€ 18.50
4
6921144B00
ref: 4
DISC,RR BRAKE
€ 370.00
5
5942103A10
ref: 5
09106-08155
BOLT,BRAKE DISC
€ 4.00
6
6972144B00
ref: 6
BRACKET,RR CALIPER
€ 103.00
7
0918017096
ref: 7
SPACER (17X21X10)
€ 14.00
8
6471114A21
ref: 8
AXLE,REAR
€ 32.50
9
6475038211
ref: 9
SPACER,RR AXLE,L
€ 12.00
10
0918017090
ref: 10
SPACER(17X33X22.4)
€ 14.50
11
0916017013
ref: 11
09160-17050
WASHER (17X30X3.2)
€ 2.00
12-1
0831441168
ref: 12-1
08314-4016A
NUT
€ 4.50
12-2
0831440163
ref: 12-2
08314-4016A
NUT
€ 4.50
13
6451114A01
ref: 13
SPROCKET,RR(NT:42)
€ 99.00
14
0912008010
ref: 14
BOLT(8X30.5)
€ 2.50
15-1
0832211088
ref: 15-1
08322-01087
WASHER
€ 2.00
15-2
0832201083
ref: 15-2
08322-0108A
WASHER
€ 1.50
16
0831931087
ref: 16
NUT
€ 2.50
17
6141131D00
ref: 17
ADJUSTER,CHAIN,R
€ 15.00
18
6142131D00
ref: 18
ADJUSTER,CHAIN,L
€ 13.50
19
6461144B10
ref: 19
DRUM,REAR SPROCKET
€ 127.50
20
6465144B01
ref: 20
ABSORBER,RR HUB SHOCK
€ 10.50
21
6473331300
ref: 21
RETAINER,RR SPROCKET DRUM
€ 16.50
22
0926225073
ref: 22
BEARING(25X62X17)
€ 21.50
23
0928533001
ref: 23
SEAL,OIL(33X62X7)
€ 20.00
24
6531144B30
ref: 24
RIM,RR WHEEL(17XMT2.50)
€ 377.50
25
6532044B10
ref: 25
SPOKE SET,RR
€ 79.00
26
6510012E00
ref: 26
TIRE,REAR 120/90-17 64
€ 0.00
26
6510012E00
ref: 26
TIRE,REAR 120/90-17 64
€ 0.00
27
6520049030
ref: 27
TUBE ASSY,WHEEL INNER
€ 43.50
28
6526144B10
ref: 28
PROTECTOR,WHL INR TUBE
€ 4.50
29
0411140308
ref: 29
04111-4030A
PIN,COTTER
€ 1.50
