WIRING HARNESS (MODEL R)
DR650SE 1994 (R) USA (E03)

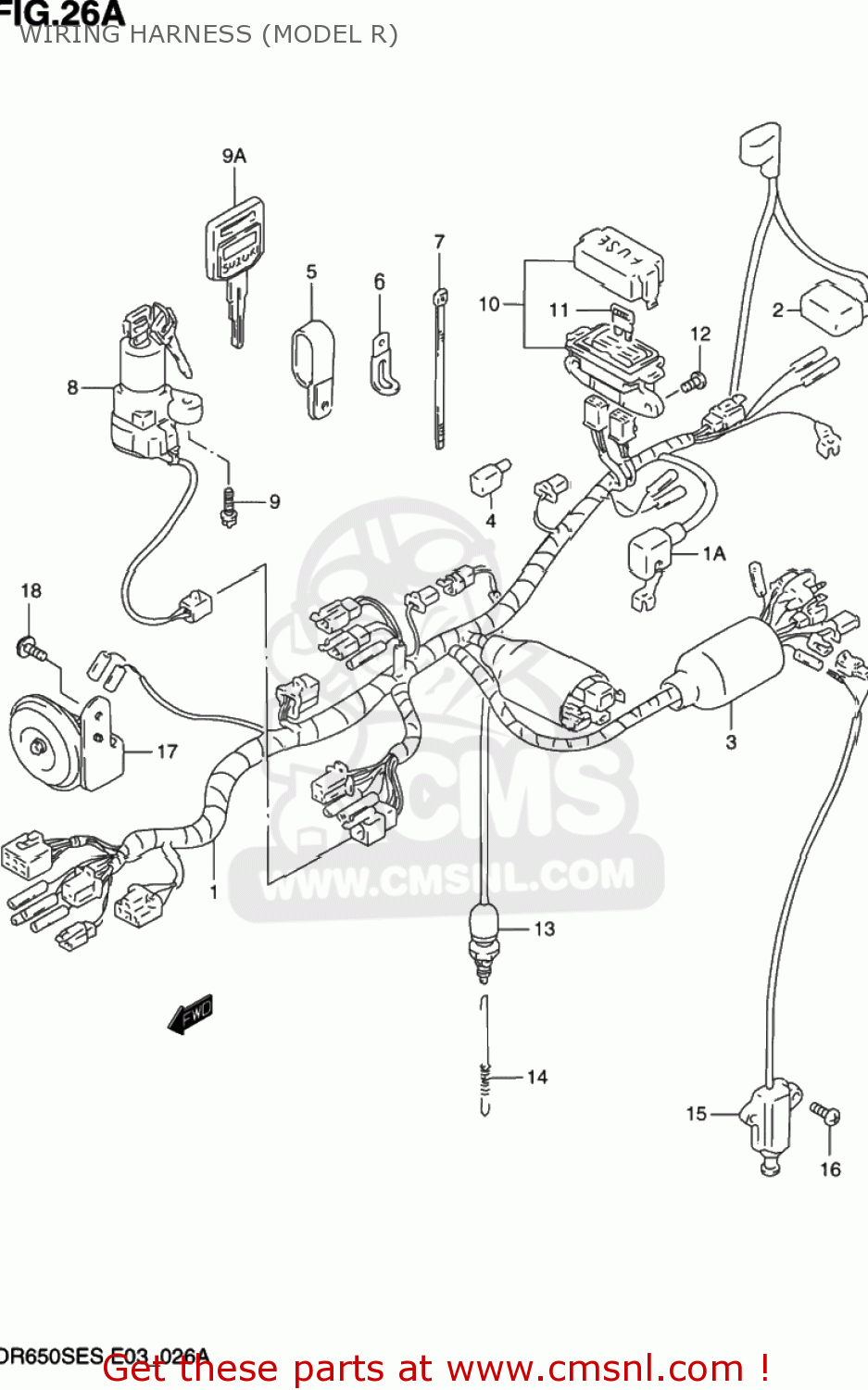

Wiring harness (model r) diagram DR650SE 1994 (R) USA (E03)
WIRING HARNESS (MODEL R) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661012E60
ref: 1
HARNESS,WIRING
€ 0.00
1A-1
3362427A00
ref: 1A-1
33624-43500
CAP,BATTERY PLUS
€ 3.50
1A-2
3362443500
ref: 1A-2
CAP,BATTERY PLUS TERMINAL
€ 3.50
2
3186110D00
ref: 2
CAP,STARTER RELAY
€ 4.00
3
3661830000
ref: 3
BOOT,WIRING HARNESS
€ 8.50
4
3298044B00
ref: 4
COVER,DECOMPRESSION CONTROL UNIT
€ 5.50
5
0940319406
ref: 5
CLAMP
€ 3.50
6-1
0940406402
ref: 6-1
09404-06432
CLAMP
€ 2.50
6-2
0940406607
ref: 6-2
CLAMP(L:55)
€ 3.00
6-3
0940408420
ref: 6-3
CLAMP(L:120 T:1.0)
€ 3.50
7-1
0940712402
ref: 7-1
CLAMP(L:120)
€ 3.00
7-2
0940714403
ref: 7-2
CLAMP(L:125)
€ 2.50
7-3
0940718403
ref: 7-3
09407-18402
CLAMP L:165
€ 2.50
7-4
0940725401
ref: 7-4
CLAMP(L:235)
€ 4.00
8
3710012E10
ref: 8
LOCK ASSY,STEERING
€ 139.50
9
0913906026
ref: 9
SCREW(6X18)
€ 2.50
9A
3714626D10
ref: 9A
KEY,BLANK
€ 41.50
10
3674012E10
ref: 10
BOX ASSEMBLY,FUSE
€ 0.00
11-1
0948110101
ref: 11-1
FUSE(10A)
€ 2.50
11-2
0948120101
ref: 11-2
FUSE(20A)
€ 2.00
12
0214206123
ref: 12
02142-0612A
SCREW 6X12
€ 2.00
13
3774031D00
ref: 13
SWITCH ASSY,STOP LAMP
€ 20.50
14
0944306079
ref: 14
SPRING
€ 4.00
15-1
3784044A20
ref: 15-1
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
15-2
3784044X50
ref: 15-2
SWITCH ASSY,SIDE STAND
€ 75.50
16
0211206203
ref: 16
02112-0620A
SCREW, 6X20
€ 2.00
17
3850044B00
ref: 17
HORN ASSY
€ 48.00
18-1
0157006123
ref: 18-1
01570-0612A
BOLT
€ 1.50
18-2
0155006123
ref: 18-2
01550-0612A
BOLT
€ 2.50
