HEADLAMP
DR650SE 1994 (R) USA (E03)

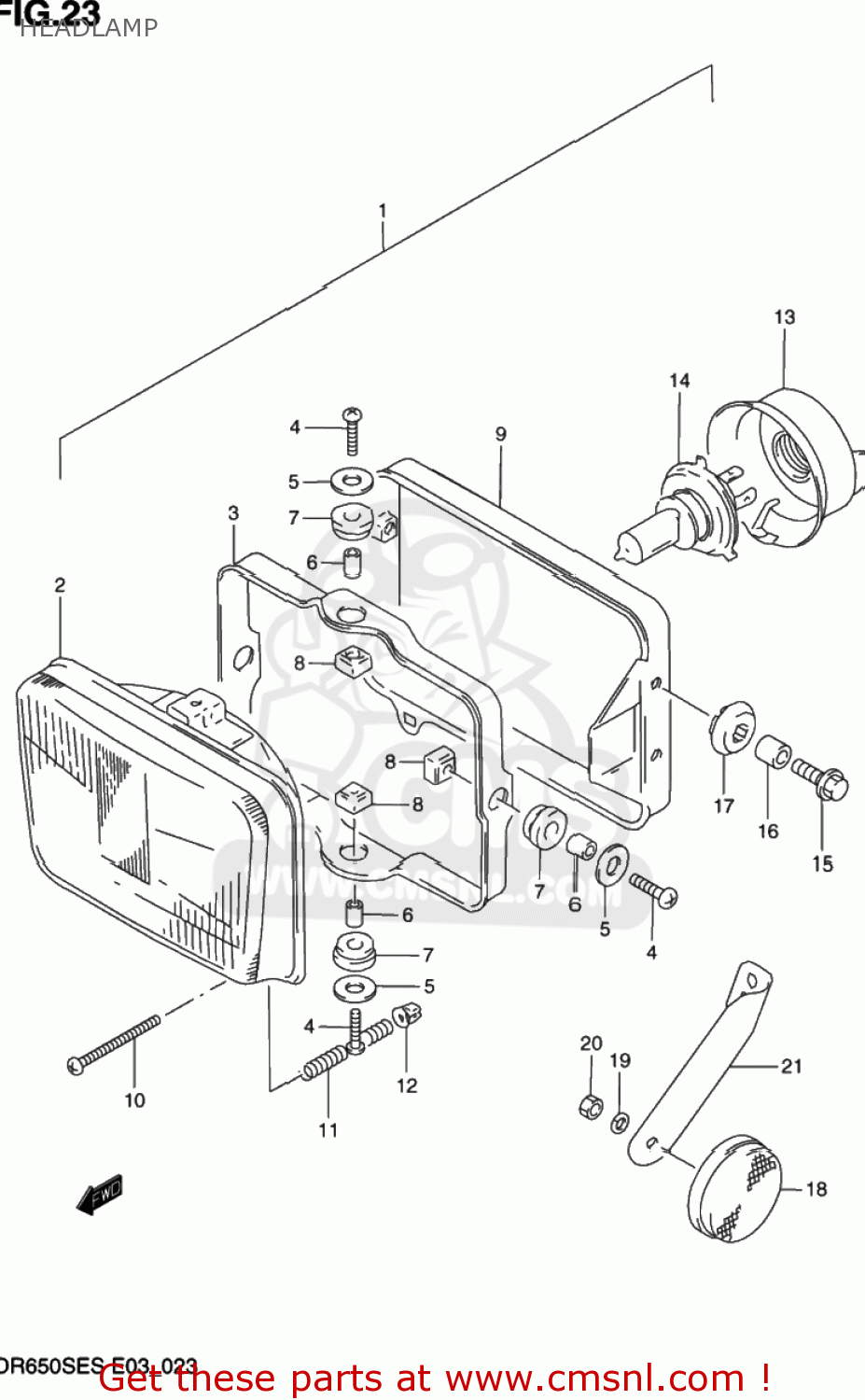

Headlamp diagram DR650SE 1994 (R) USA (E03)
HEADLAMP DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510012E30
ref: 1-1
35100-12E31-999
HEADLAMP ASSEMBLY
€ 0.00
1-2
3510012E30999
ref: 1-2
35100-12E31-999
HEADLAMP ASSEMBLY
€ 0.00
2
3512112E30
ref: 2
UNIT ASSY
€ 145.00
3
3513012E20
ref: 3
RING,MOUNTING
€ 37.50
4
3515131D00
ref: 4
02112-0516A
SCREW,HEADLAMP ADJUST
€ 2.00
5-1
3513845230
ref: 5-1
09160-05045
WASHER
€ 2.00
5-2
0916005003
ref: 5-2
09160-05045
WASHER (5.5X18X1)
€ 2.00
6
3513345230
ref: 6
SPACER
€ 2.00
7
3513945230
ref: 7
CUSHION
€ 1.50
8
3513545900
ref: 8
NUT
€ 2.50
9
3514112E20
ref: 9
HOUSING
€ 71.00
10-1
3515112E20
ref: 10-1
09125-04501
SCREW,HEADLAMP ADJUST
€ 3.00
10-2
0912504501
ref: 10-2
SCREW(4X45)
€ 3.00
11
3515412E20
ref: 11
SPRING,ADJUSTING
€ 2.00
12
3513512E20
ref: 12
NUT,ADJUSTING
€ 2.50
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15-1
0911606011
ref: 15-1
09116-06115
BOLT 6X20
€ 2.00
15-2
0911606167
ref: 15-2
BOLT(6X20)
€ 2.00
16
0918006030
ref: 16
09180-06310
SPACER (6.8X10X10)
€ 2.00
17
0932009018
ref: 17
CUSHION
€ 2.00
18
3595015500
ref: 18
REFLEX REFLECTOR ASSY,FR SIDE
€ 13.50
19-1
0832121057
ref: 19-1
08321-0105A
LOCK WASHER
€ 2.00
19-2
0832101053
ref: 19-2
08321-0105A
LOCK,WASHER
€ 3.00
20-1
0831311055
ref: 20-1
08313-1005B
NUT
€ 2.00
20-2
0831310053
ref: 20-2
08313-1005B
NUT
€ 2.00
21-1
3595644B01
ref: 21-1
BRACKET,FR SIDE REFLECTOR,R
€ 7.50
21-2
3595744B01
ref: 21-2
BRACKET,FR SIDE REFLECTOR,L
€ 7.50
