CRANKCASE COVER (MODEL N/P)
DR650SE 1994 (R) USA (E03)

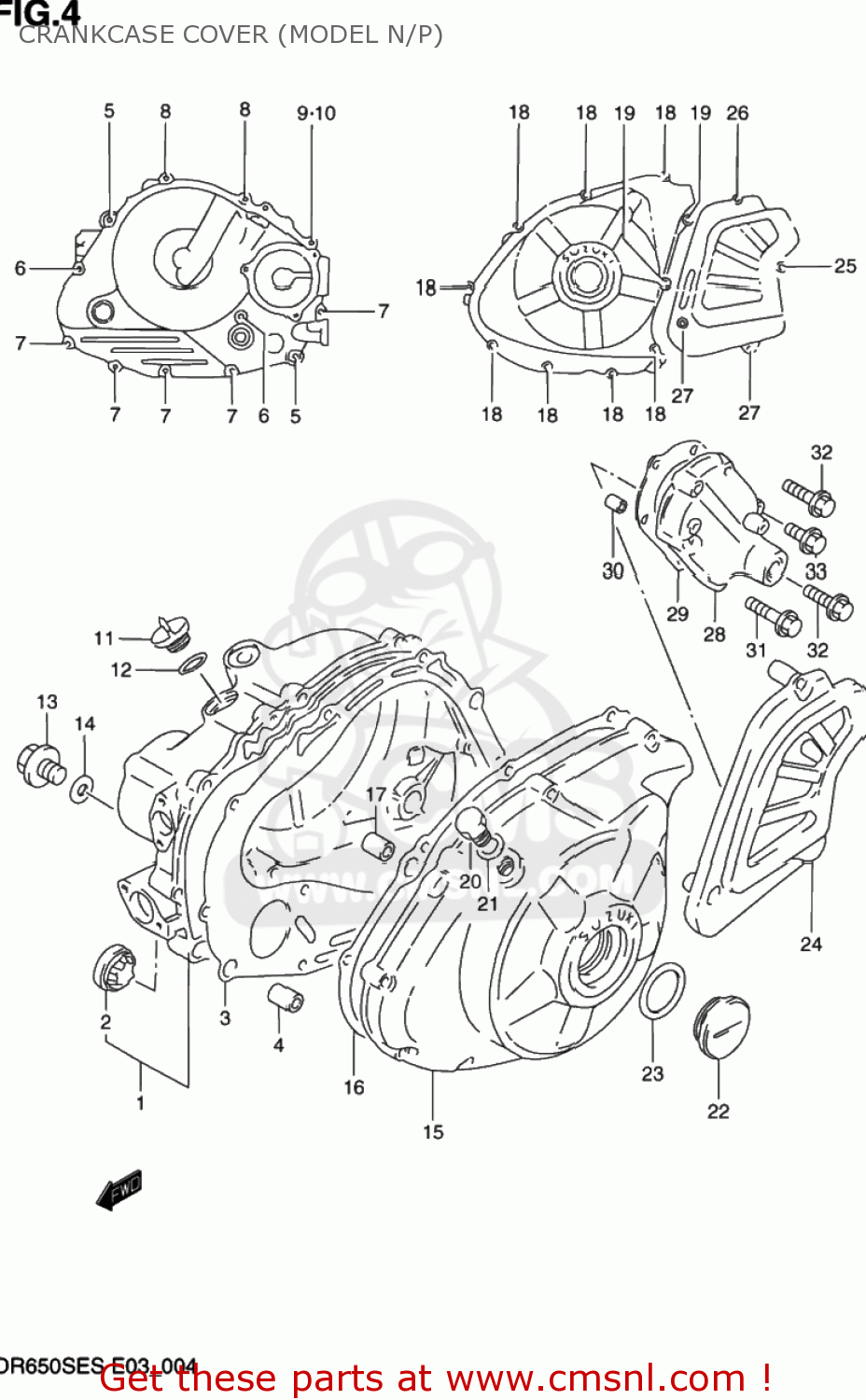

Crankcase cover (model n/p) diagram DR650SE 1994 (R) USA (E03)
CRANKCASE COVER (MODEL N/P) DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134012D30
ref: 1
COVER,CLUTCH
€ 214.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148212D01
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 46.00
4
0920613001
ref: 4
04211-13189
PIN
€ 2.50
5
0154706507
ref: 5
BOLT
€ 2.50
6
0154706407
ref: 6
BOLT
€ 2.50
7
0154706357
ref: 7
BOLT
€ 2.50
8
0154706257
ref: 8
BOLT
€ 2.50
9
0910306161
ref: 9
BOLT 6X25
€ 0.00
10
0832221067
ref: 10
08322-01067
WASHER
€ 2.00
11
0925920019
ref: 11
PLUG
€ 9.50
12
0928017003
ref: 12
O RING(D:3.1,ID:16.8)
€ 2.00
13
0924714026
ref: 13
PLUG(14X12)
€ 3.50
14
0916814004
ref: 14
GASKET(14X19.2X2) (NAS)
€ 2.50
15
1135112D30
ref: 15
COVER,GENERATOR
€ 143.50
16
1148312D10
ref: 16
GASKET,MAGNETO COVER (NAS)
€ 41.00
17
0920613001
ref: 17
04211-13189
PIN
€ 2.50
18
0154706307
ref: 18
BOLT
€ 2.50
19
0154706257
ref: 19
BOLT
€ 2.50
20
0924712104
ref: 20
PLUG,12X9
€ 2.50
21
0916812002
ref: 21
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
22
0925936018
ref: 22
09259-36016-20H
PLUG (36X10)
€ 10.50
23
0928033004
ref: 23
O RING(D:3.1,ID:32.7)
€ 2.50
24
1136112D30
ref: 24
COVER,ENGINE SPROCKET
€ 39.50
25
0154706457
ref: 25
BOLT
€ 2.50
26
0154706357
ref: 26
BOLT
€ 2.50
27
0154706207
ref: 27
BOLT
€ 2.50
28
1137112D30
ref: 28
COVER,GEAR SHIFT
€ 41.50
29
1148512D01
ref: 29
GASKET,GEAR SHIFT COVER (NAS)
€ 4.50
30
0421109129
ref: 30
PIN
€ 2.00
31
0154706357
ref: 31
BOLT
€ 2.50
32
0154706307
ref: 32
BOLT
€ 2.50
33
0154706207
ref: 33
BOLT
€ 2.50
