RIGHT HANDLE SWITCH
DR650SE 1994 (R) USA (E03)

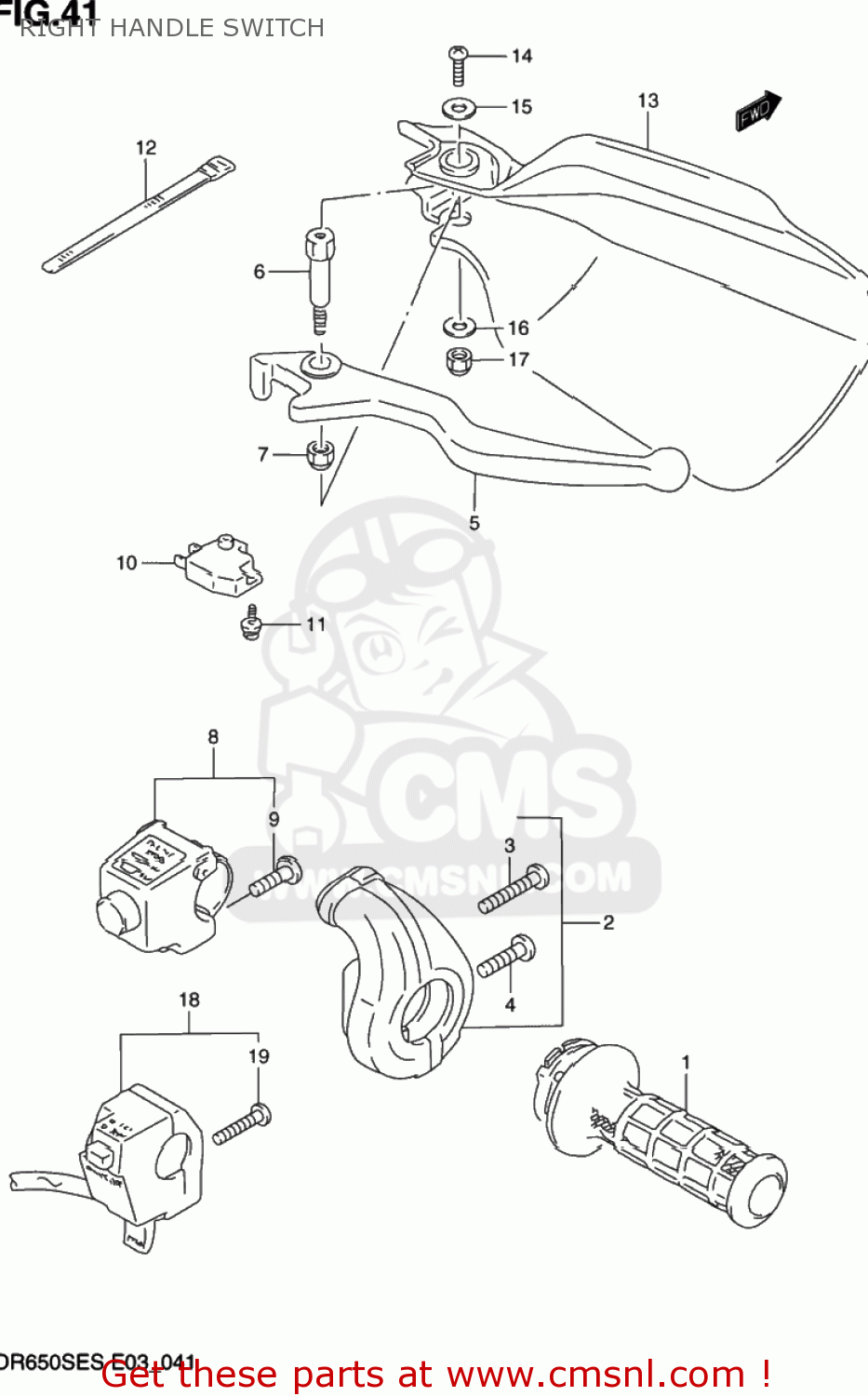

Right handle switch diagram DR650SE 1994 (R) USA (E03)
RIGHT HANDLE SWITCH DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5711012D10
ref: 1-1
57110-12D11
GRIP COMP,THROTTLE
€ 25.50
1-2
5711012D11
ref: 1-2
GRIP,THROTTLE
€ 25.50
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
€ 2.00
4
0211205205
ref: 4
02112-0520B
SCREW 5X20
€ 2.50
5
5742113001
ref: 5
LEVER,BRAKE
€ 18.00
6
5743105D00
ref: 6
BOLT,BRAKE LEVER PIVOT
€ 9.00
7
0831921065
ref: 7
08319-2106B
NUT
€ 2.50
8
3720012E10
ref: 8
SWITCH ASSY, HANDLE RH
€ 0.00
9
0211205166
ref: 9
02112-0516A
SCREW
€ 2.00
10
5746017C00
ref: 10
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
11
5746517C00
ref: 11
SCREW
€ 1.50
12
0940712402
ref: 12
CLAMP(L:120)
€ 3.00
13-1
5734105D0030H
ref: 13-1
COVER,KNUCKLE,RIGHT
€ 18.00
13-2
5734105D000NF
ref: 13-2
COVER,KNUCKLE,R
€ 28.00
14-1
0912505042
ref: 14-1
SCREW(5X10)
€ 2.50
14-2
0214205103
ref: 14-2
02142-0510B
SCREW
€ 2.50
15
0916005017
ref: 15
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
16
0916006042
ref: 16
09160-06130
WASHER (6.5X17X1.6)
€ 2.00
17
0831921068
ref: 17
08319-2106A
NUT 6MM
€ 2.00
18
3720019D30
ref: 18
SWITCH ASSY,HANDLE,R
€ 0.00
19
0211205455
ref: 19
02112-0545B
SCREW, 5X45
€ 4.00
