SEAT
DR650SE 1994 (R) USA (E03)

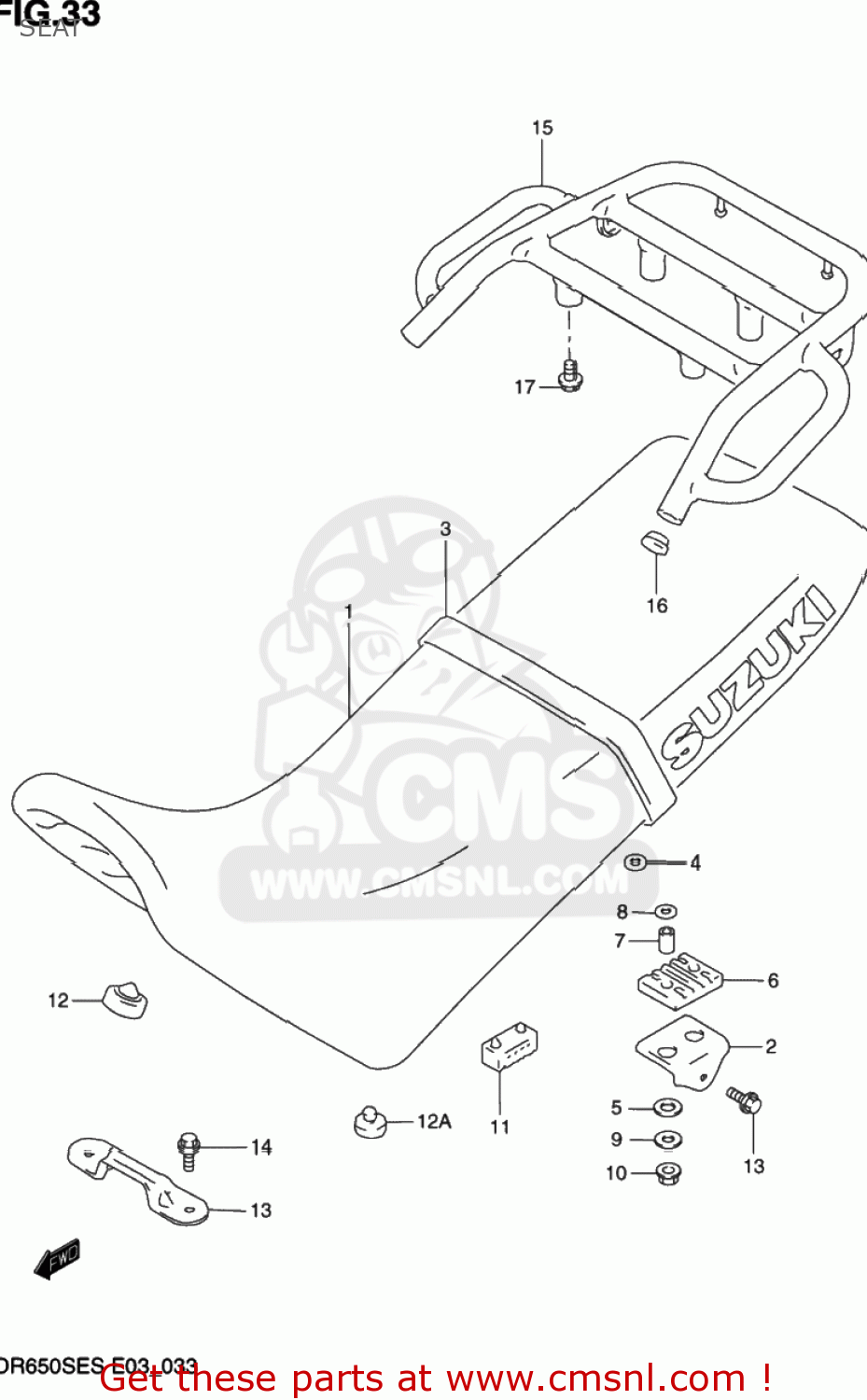

Seat diagram DR650SE 1994 (R) USA (E03)
SEAT DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510012E109DD
ref: 1-1
45100-12E51-9DD
SEAT ASSEMBLY
€ 348.00
1-2
4510012E409DD
ref: 1-2
45100-12E41-9DD
SEAT ASSEMBLY
€ 367.00
2
4521012E00
ref: 2
BRACKET,SEAT
€ 0.00
3
4518012E104UZ
ref: 3
45180-12E50-4UZ
BAND,SEAT
€ 10.50
4-1
0916906034
ref: 4-1
09169-06071
WASHER
€ 2.50
4-2
0832201063
ref: 4-2
08322-0106B
WASHER
€ 2.00
5
4514723450
ref: 5
CUSHION,SEAT FR
€ 1.50
6
4515023450
ref: 6
CUSHION,FR PLATE
€ 3.00
7
4521944B00
ref: 7
SPACER,SEAT BRACKET
€ 0.00
8
0821206201
ref: 8
WASHER
€ 1.50
9
0832221066
ref: 9
08322-0106B
WASHER, LOWER
€ 2.00
10
0831626066
ref: 10
08316-1006B
NUT
€ 2.00
11
4514931300
ref: 11
CUSHION,SEAT(40X20X15)
€ 2.00
12
4514912E00
ref: 12
CUSHION,FRONT
€ 0.00
12A
0932110011
ref: 12A
CUSHION
€ 3.00
13
4511912E00
ref: 13
PLATE,SEAT FR HOOK
€ 8.50
14-1
0110708166
ref: 14-1
01500-0816B
BOLT, 8X1.25X1
€ 2.00
14-2
0155008163
ref: 14-2
01550-0816A
BOLT
€ 3.00
15
4631012E0021R
ref: 15
CARRIER,SPORT
€ 199.00
16
0925016014
ref: 16
CAP(OD:19)
€ 2.50
17-1
0151706168
ref: 17-1
01550-06167
BOLT
€ 1.50
17-2
0155006163
ref: 17-2
01550-0616A
BOLT
€ 2.50
