TURN SIGNAL LAMP

DR650SE 1994 (R) USA (E03)

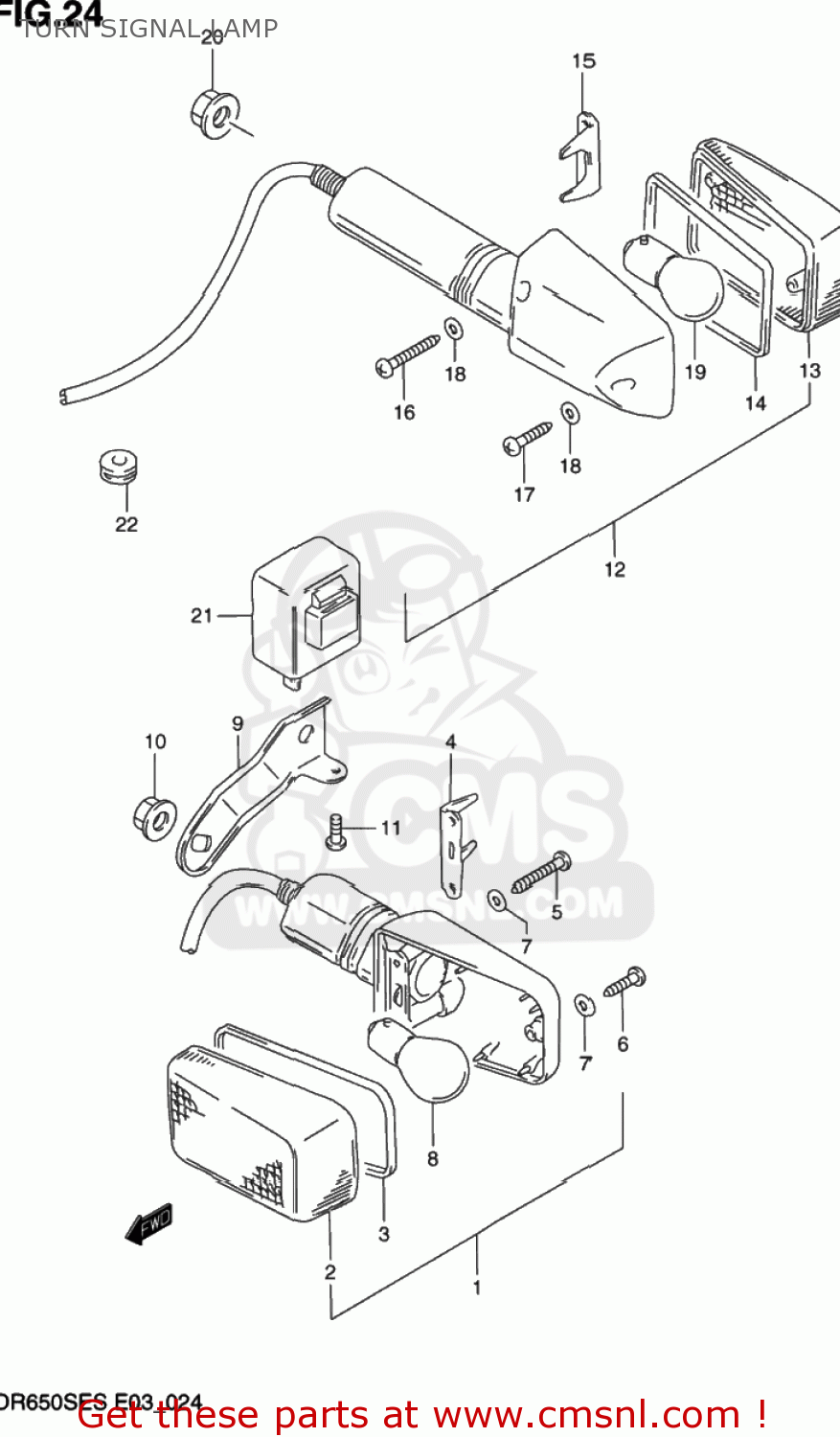

Turn signal lamp diagram DR650SE 1994 (R) USA (E03)

TURN SIGNAL LAMP DR650SE 1994 (R) USA (E03)
TURN SIGNAL LAMP DR650SE 1994 (R) USA (E03)
TURN SIGNAL LAMP DR650SE 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3560101D10
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
3560101D10
€ 70.50
1-2
3560129EC0
ref: 1-2
LAMP ASSY,FR TURN SIGNAL
3560129EC0
€ 78.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3561627A00
ref: 4
PLATE,TURN SIGNAL
€ 0.00
5
3562327A00
ref: 5
SCREW(3X30)
3562327A00
€ 1.50
6
3572540511
ref: 6
SCREW
3572540511
€ 1.50
7
3562727A02
ref: 7
GASKET (NAS)
3562727A02
€ 1.50
8
0947112045
ref: 8
BULB(12V21W)
0947112045
€ 5.00
9-1
3567112E00
ref: 9-1
BRACKET,FRONT TURN SIGNAL
€ 12.50
9-2
3568112E00
ref: 9-2
BRACKET,FRONT TURN SIGNAL
3568112E00
€ 14.50
10-1
0831616105
ref: 10-1
08316-1010B
NUT
€ 2.00
10-2
0831610103
ref: 10-2
08316-1010B
NUT
0831610103
€ 2.00
11-1
0214205084
ref: 11-1
02142-0508A
SCREW
€ 2.00
11-2
0214205083
ref: 11-2
02142-0508A
SCREW
0214205083
€ 2.00
12-1
3560312E10
ref: 12-1
35603-14D10
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 88.00
12-2
3560312E00
ref: 12-2
35603-14D20
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 74.00
12-3
3560329E60
ref: 12-3
35603-29E90
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 62.00
13
3565217C20
ref: 13
LENS
3565217C20
€ 6.50
14
3561327A00
ref: 14
GASKET (NAS)
3561327A00
€ 3.00
15
3561627A00
ref: 15
PLATE,TURN SIGNAL
€ 0.00
16
3562327A00
ref: 16
SCREW(3X30)
3562327A00
€ 1.50
17
3572540511
ref: 17
SCREW
3572540511
€ 1.50
18
3562727A02
ref: 18
GASKET (NAS)
3562727A02
€ 1.50
19
0947112045
ref: 19
BULB(12V21W)
0947112045
€ 5.00
20-1
0831616105
ref: 20-1
08316-1010B
NUT
€ 2.00
20-2
0831610103
ref: 20-2
08316-1010B
NUT
0831610103
€ 2.00
21-1
3861045D00
ref: 21-1
38610-45D01
RELAY,TURN SIGNAL
€ 68.50
21-2
3861045D01
ref: 21-2
RELAY ASSY,TURNSIGNAL LAMP
3861045D01
€ 68.50
22
0930805015
ref: 22
GROMMET
0930805015
€ 4.50
