DR650SE 1994 (R) USA (E03)

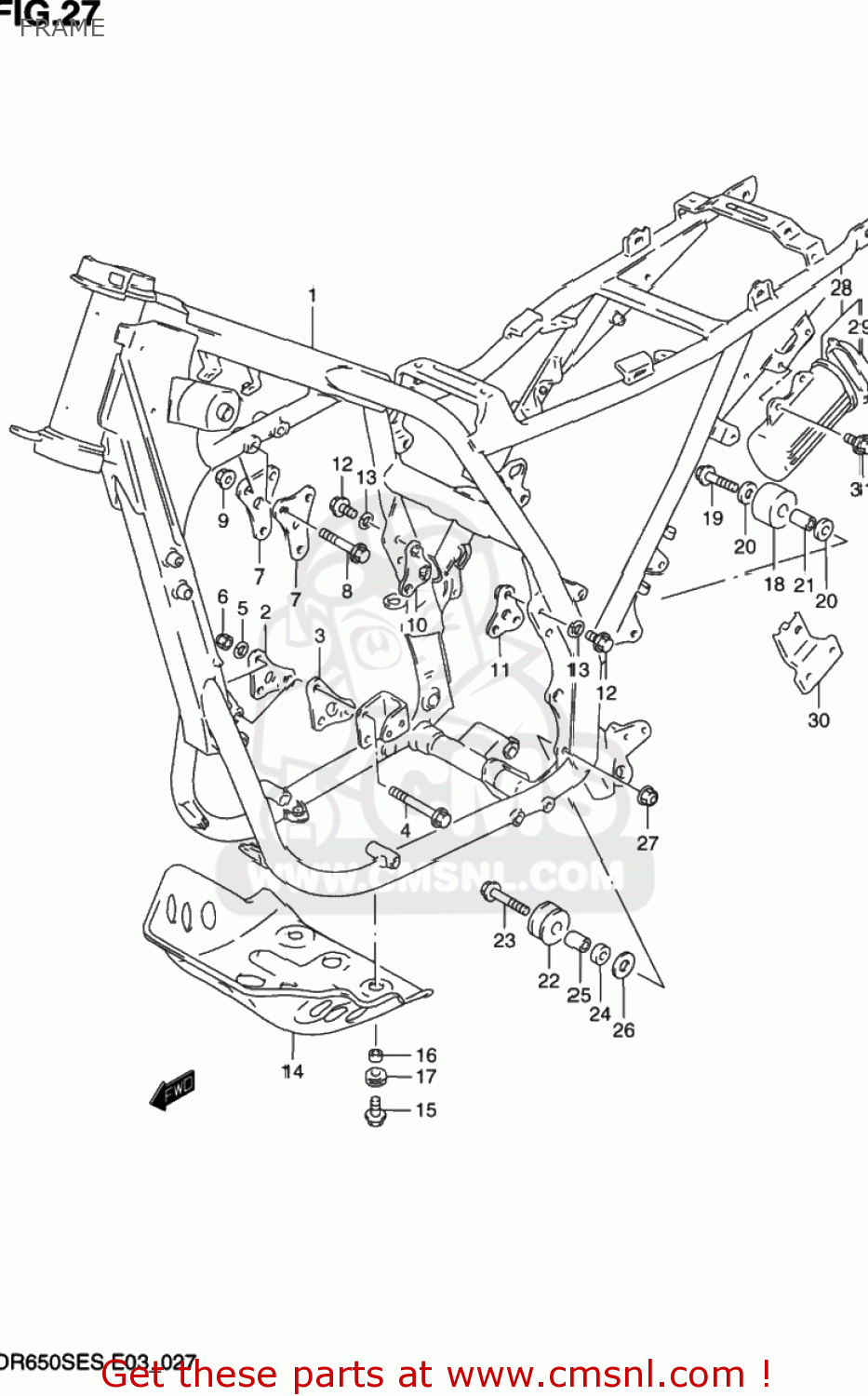

Frame diagram DR650SE 1994 (R) USA (E03)
FRAME DR650SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110012E000NF
ref: 1-1
41100-12E01-0NF
FRAME
€ 1,476.50
1-2
4110012E200NF
ref: 1-2
FRAME COMP
€ 0.00
2
4191112D00019
ref: 2
PLATE,ENG MTG FR,R
€ 9.50
3
4192112D00019
ref: 3
PLATE,ENG MTG FR,L
€ 9.00
4
0910308279
ref: 4
BOLT(8X72)
€ 4.50
5-1
0832131084
ref: 5-1
08321-0108A
LOCK WASHER
€ 2.50
5-2
0832101083
ref: 5-2
08321-0108A
LOCK WASHER
€ 2.50
6
0831921085
ref: 6
08319-2108A
NUT
€ 1.50
7-1
4199112D00019
ref: 7-1
41991-12D10
PLATE,ENGINE MOUNTING
€ 15.50
7-2
4199112D10
ref: 7-2
PLATE,ENGINE MOUNTING,UPPER
€ 15.50
8
0910308289
ref: 8
BOLT(8X50)
€ 5.00
9
0831931085
ref: 9
08319-3108A
NUT
€ 2.50
10
4194012D00019
ref: 10
PLATE,ENG MTG RR,R
€ 12.00
11-1
4195012D01019
ref: 11-1
PLATE,ENG MTG RR,L
€ 10.50
11-2
4195014A10019
ref: 11-2
PLATE COMP,ENGINE MOUNTING,REAR
€ 14.50
12-1
0910308266
ref: 12-1
BOLT(8X20)
€ 2.50
12-2
0910308288
ref: 12-2
BOLT(8X25)
€ 2.50
13-1
0832131084
ref: 13-1
08321-0108A
LOCK WASHER
€ 2.50
13-2
0832101083
ref: 13-2
08321-0108A
LOCK WASHER
€ 2.50
14-1
4251114A01
ref: 14-1
42511-12D10
PROTECTOR,ENGINE
€ 279.00
14-2
4251112D10
ref: 14-2
PROTECTOR,ENGINE
€ 279.00
15
0911806087
ref: 15
09118-06087-XC0
BOLT 6X20
€ 3.00
16
0918007005
ref: 16
09180-06259
SPACER (7X9X7)
€ 2.50
17
0932008021
ref: 17
CUSHION
€ 4.00
18
4391101B10
ref: 18
ROLLER,CHAIN CONTROL
€ 14.50
19
0910308083
ref: 19
BOLT(8X41)
€ 3.50
20
0916008021
ref: 20
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
21
0918008136
ref: 21
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
22
4391135B00
ref: 22
ROLLER,CHAIN CONTROL
€ 14.50
23
0910308082
ref: 23
09103-08395
BOLT 8X50
€ 7.00
24-1
4391412D00
ref: 24-1
09180-08141
SPACER,LOWER
€ 3.50
24-2
0918008141
ref: 24-2
SPACER(8.5X15X8.5)
€ 3.50
25
0918008119
ref: 25
09180-08156
SPACER(8.6X12X25.5)
€ 6.50
26
0821108201
ref: 26
WASHER
€ 2.00
27
0831931085
ref: 27
08319-3108A
NUT
€ 2.50
28
4155037210
ref: 28
HOLDER,TOOL
€ 20.50
29
4155237210
ref: 29
CAP,HOLDER
€ 5.00
30
4744012E00
ref: 30
BRACKET,TOOL HOLDER
€ 8.50
31
0911606006
ref: 31
BOLT(6X16)
€ 2.00
