CYLINDER

DR650SE 1994 (R) USA (E03)

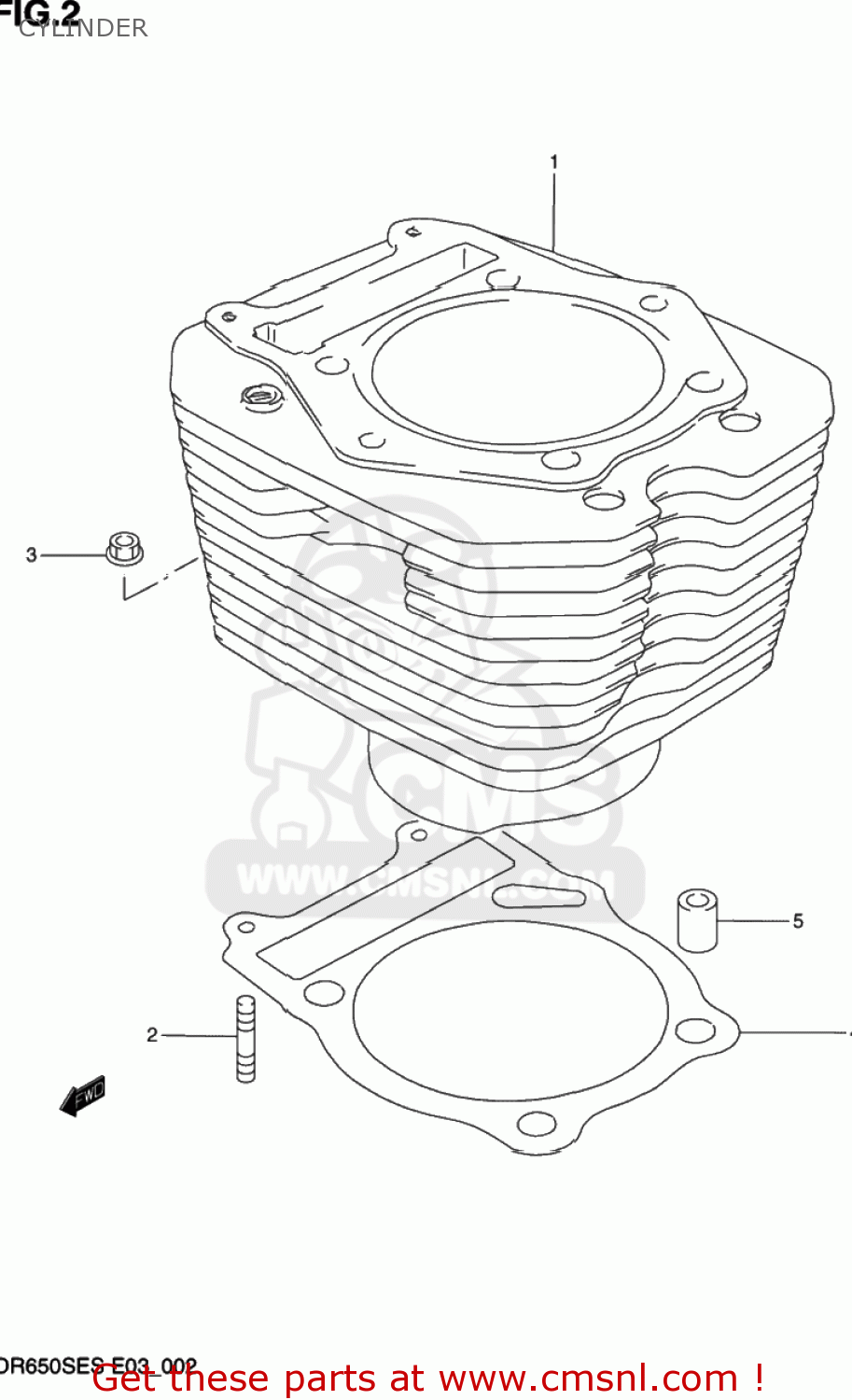

Cylinder diagram DR650SE 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121012D200E0
ref: 1-1
11210-12D23-0F0

CYLINDER

€ 697.00

1-2

1121012D230F0
ref: 1-2

CYLINDER

€ 697.00

0142106208
ref: 2
01421-0620A

STUD 6X20

€ 2.50

3-1

0915906017
ref: 3-1
08319-31067

NUT

€ 2.50

3-2

0831610067
ref: 3-2

NUT

€ 2.00

4-1

1124114A02H17
ref: 4-1
11241-14A03-H17

GASKET,CYLINDER (NAS)

€ 27.00

4-2

1124114A03H17
ref: 4-2

GASKET,CYLINDER (NAS)

€ 27.00

0421113189
ref: 5

PIN

€ 2.50
