CARRIER

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

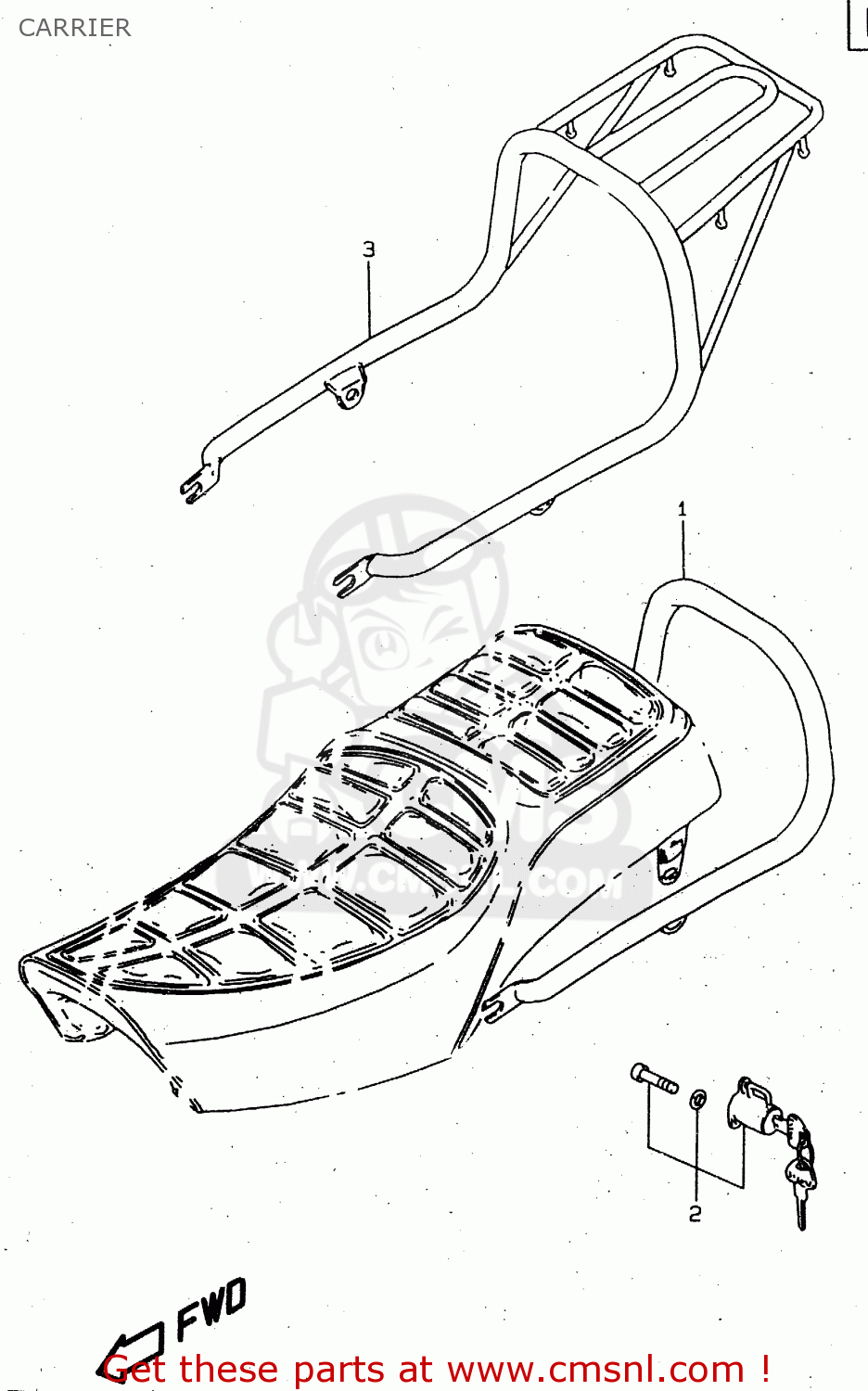

Carrier diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

CARRIER GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

CARRIER GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

4621038301
ref: 1

HANDLE,PILLION RIDER

€ 87.50

2

9570038840
ref: 2

LOCK SET,HELMET

€ 44.50

3

4631038301
ref: 3
OPT

CARRIER,SPORT

€ 112.00
