REAR COMBINATION LAMP (E22)

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

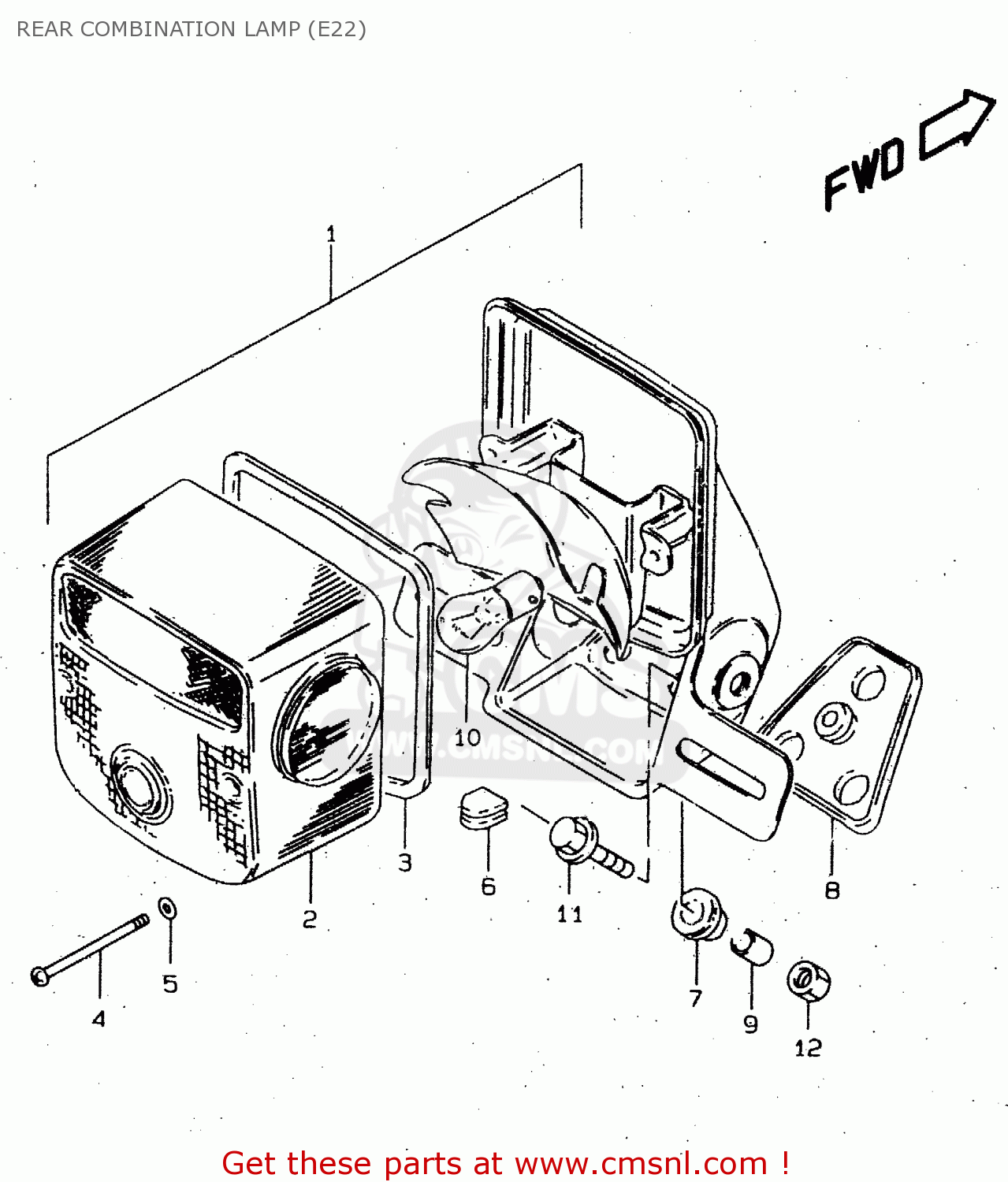

Rear combination lamp (e22) diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

REAR COMBINATION LAMP (E22) GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

REAR COMBINATION LAMP (E22) GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3571038300
ref: 1

LAMP ASSY,RR COMBINATION

€ 149.00

2

3571238350
ref: 2

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0912504002
ref: 4

SCREW (4X55)

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

7

3576426470
ref: 7

CUSHION

€ 2.50

8

3576526470
ref: 8

CUSHION

€ 10.00

9

3576626470
ref: 9

SPACER

€ 2.00

10

0947112083
ref: 10

BULB(12V21/5W)

€ 6.00

11

0911606167
ref: 11

BOLT(6X20)

€ 2.00

12

0831000063
ref: 12

NUT 6MM

€ 2.00
