HANDLE SWITCH

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

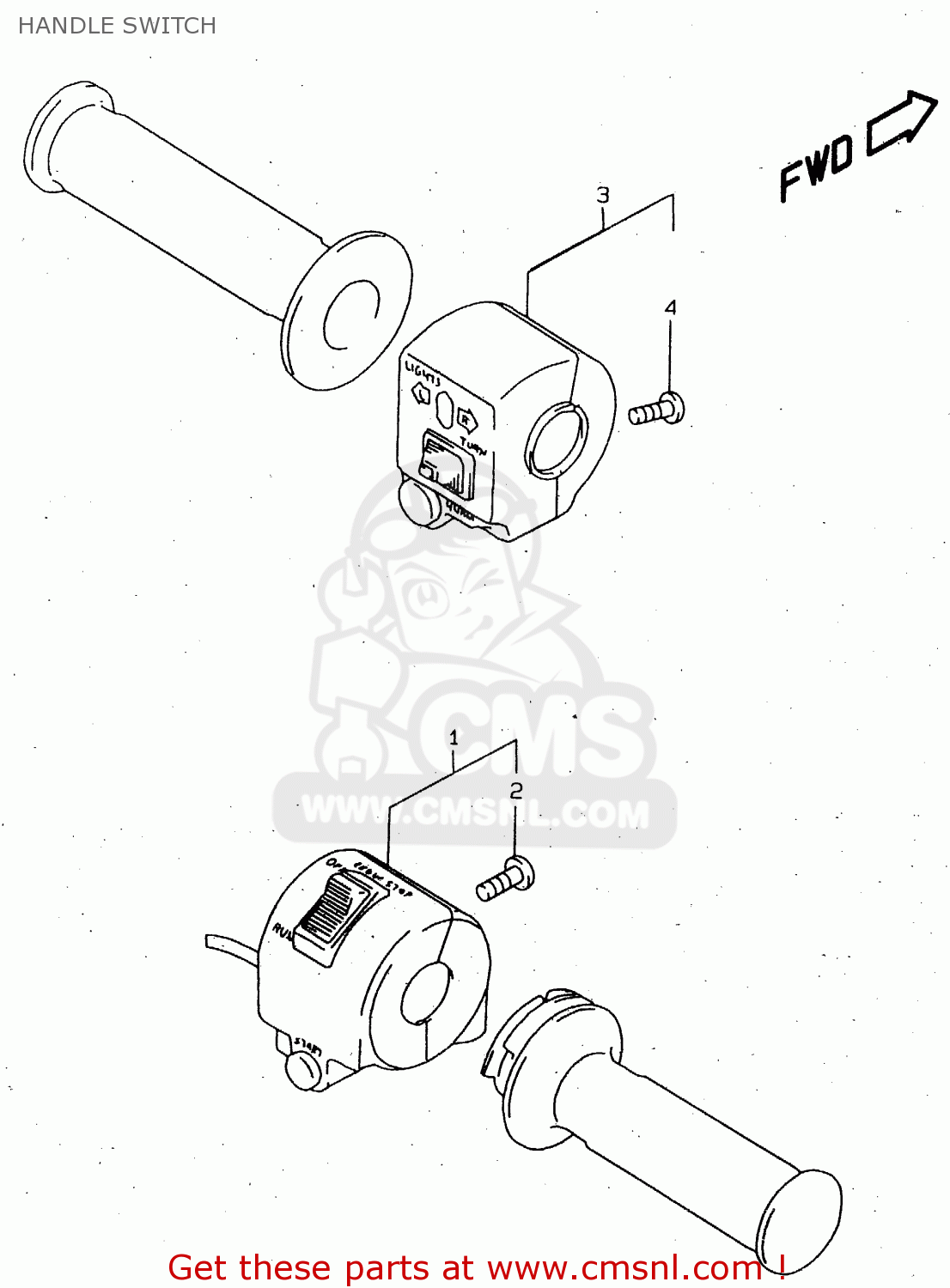

Handle switch diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

HANDLE SWITCH GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

HANDLE SWITCH GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

3720049461
ref: 1
E2,E4,E22,E25,E34,E3

SWITCH ASSY,HANDLE,R

€ 124.00

1

3720049451
ref: 1
E1,P37

SWITCH ASSY,HANDLE,R

€ 107.00

1

3720049471
ref: 1
E24

SWITCH ASSY,HANDLE,R

€ 105.00

2

0912505102
ref: 2

SCREW(5X14)

€ 2.50

3

3740049113
ref: 3

SWITCH ASSY,HANDLE,L

€ 149.00

4

0211205167
ref: 4

SCREW

€ 2.50
