MUFFLER

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

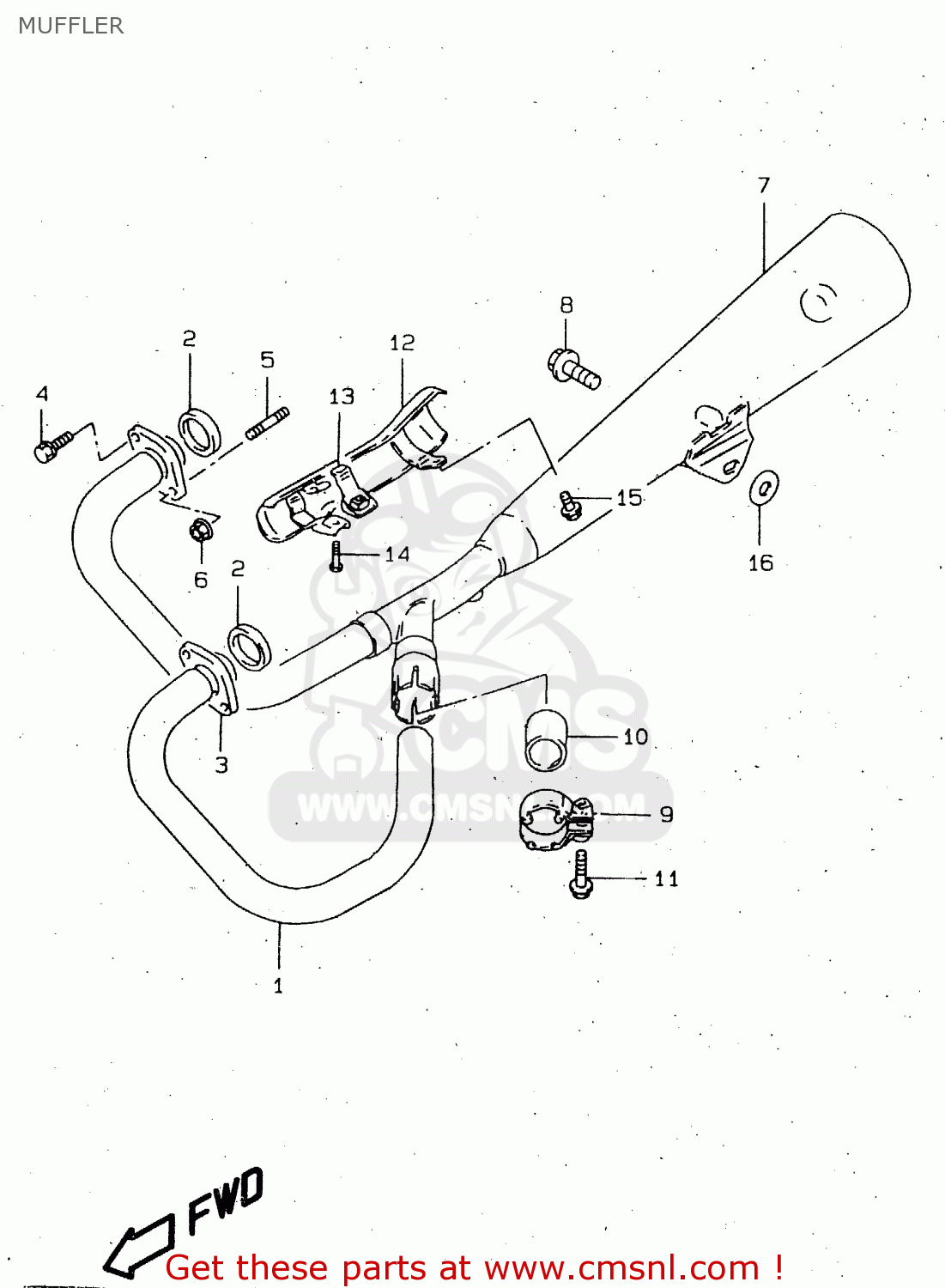

Muffler diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1416038300
ref: 1

PIPE,EXHAUST,L

€ 95.00

1418137D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 7.00

1418238300
ref: 3

CLAMP

€ 21.50

0157006257
ref: 4

BOLT

€ 2.50

0142106208
ref: 5
MODEL T

STUD 6X20

€ 2.50

0910806002
ref: 5
MODEL W/X

BOLT,STUD

€ 2.50

0836135068
ref: 6

NUT

€ 2.00

1430538360
ref: 7

MUFFLER COMP

€ 289.50

1430538304H01
ref: 7
E1,P37

BODY,MUFFLER

€ 239.50

1430538342
ref: 7
E24,E39

MUFFLER ASSY

€ 264.00

0158010303
ref: 8

BOLT

€ 3.00

1445938300
ref: 9

CLAMP

€ 16.50

1477138301
ref: 10

CONNECTOR,MUFFLER

€ 19.50

0150008303
ref: 11

BOLT

€ 2.50

1478038303
ref: 12

COVER,MUFFLER

€ 46.00

1478538301
ref: 13

CLAMP,MUFFLER COVER

€ 5.00

0211205163
ref: 14

SCREW

€ 2.00

0211276103
ref: 15

SCREW

€ 2.00

0832201103
ref: 16

WASHER

€ 2.50

MUFFLER

all assemblies
