SEAT

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

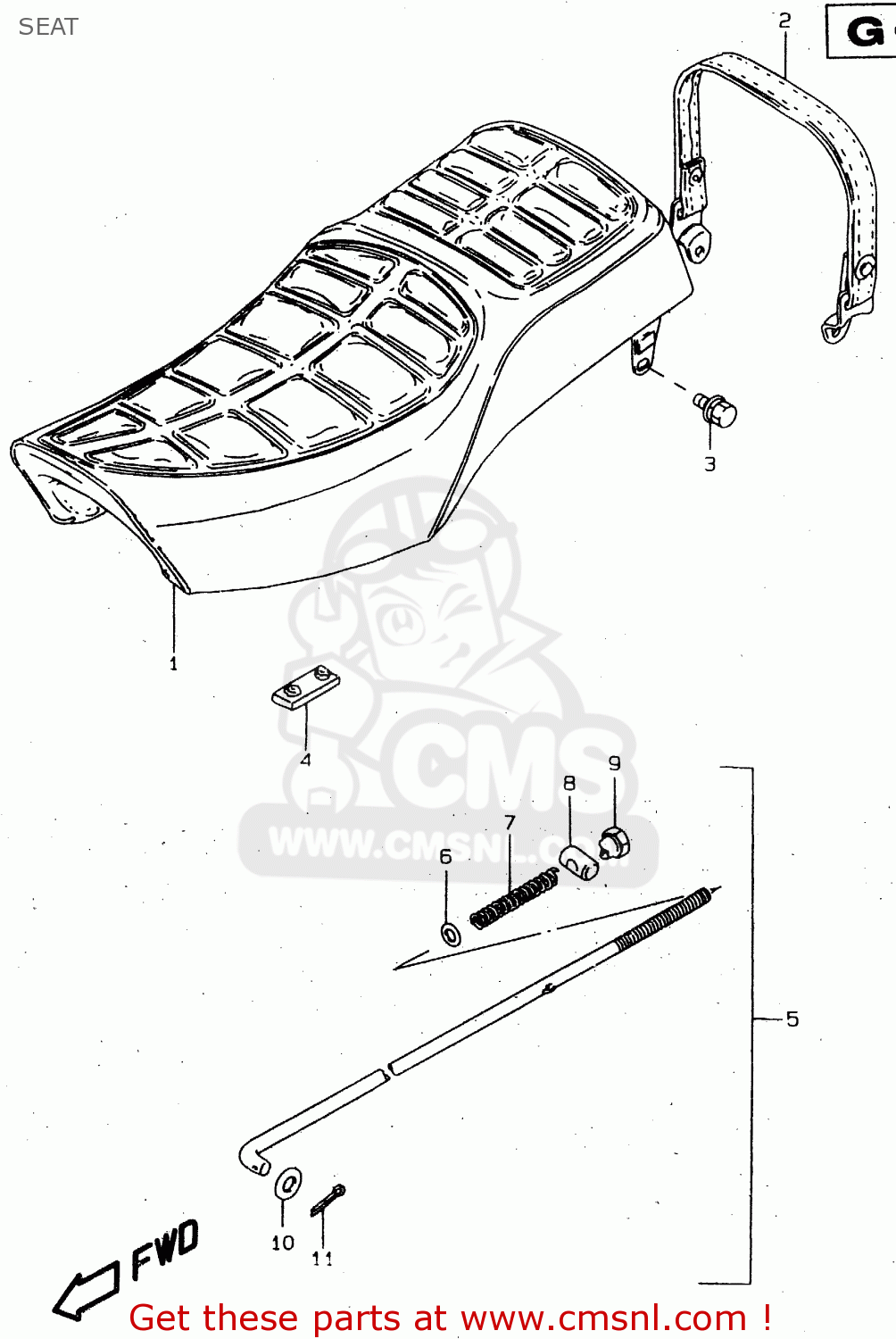

Seat diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

451003831248H
ref: 1

SEAT ASSY

€ 288.50

451803831048H
ref: 2
E1,E2,E4,E24,E25,E34

BAND,SEAT GRIP

€ 27.50

0126408207
ref: 3

BOLT

€ 3.00

0932108009
ref: 4

CUSHION

€ 4.00

4330038300
ref: 5

ROD ASSY,RR BRAKE

€ 21.00

0832201063
ref: 6

WASHER

€ 2.00

0944009004
ref: 7

SPRING

€ 2.00

0920913018
ref: 8

PIN(13X18)

€ 3.50

0915006014
ref: 9

NUT

€ 3.50

0832201053
ref: 10

WASHER

€ 2.50

0411120208
ref: 11

PIN 20X20

€ 1.50
