REAR BRAKE

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

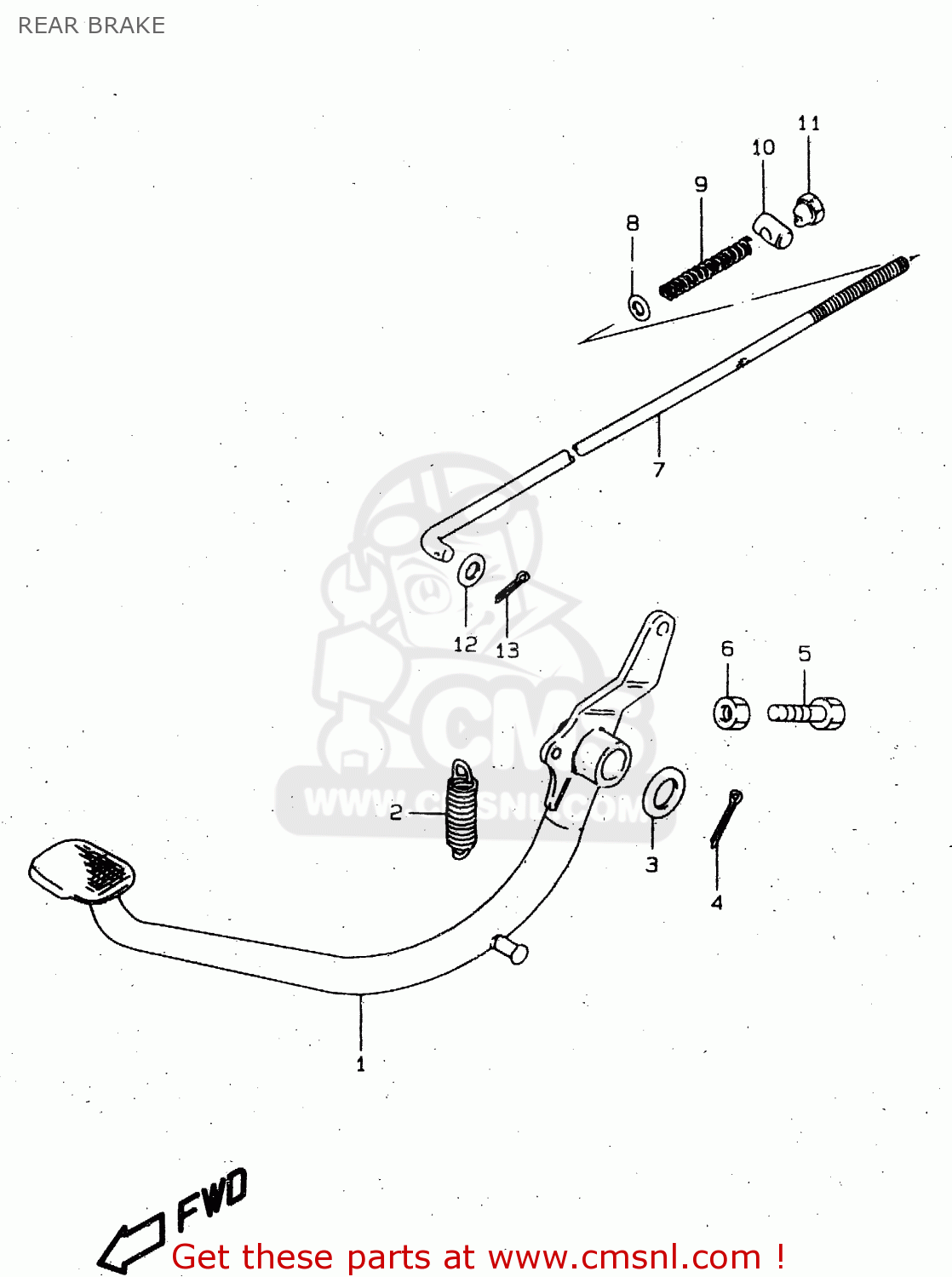

Rear brake diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

REAR BRAKE GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

REAR BRAKE GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1

4311038301
ref: 1

PEDAL,BRAKE

€ 104.00

2

0944314013
ref: 2

SPRING

€ 21.50

3

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

4

0411130308
ref: 4

COTTER PIN

€ 1.50

5

0910006009
ref: 5

BOLT(6X23)

€ 1.50

6

0831000063
ref: 6

NUT 6MM

€ 2.00

7

4330038300
ref: 7

ROD ASSY,RR BRAKE

€ 21.00

8

0832201063
ref: 8

WASHER

€ 2.00

9

0944009004
ref: 9

SPRING

€ 2.00

10

0920913018
ref: 10

PIN(13X18)

€ 3.50

11

0915006014
ref: 11

NUT

€ 3.50

12

0832201053
ref: 12

WASHER

€ 2.50

13

0411120208
ref: 13

PIN 20X20

€ 1.50
