FRONT FENDER - HOUSING

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

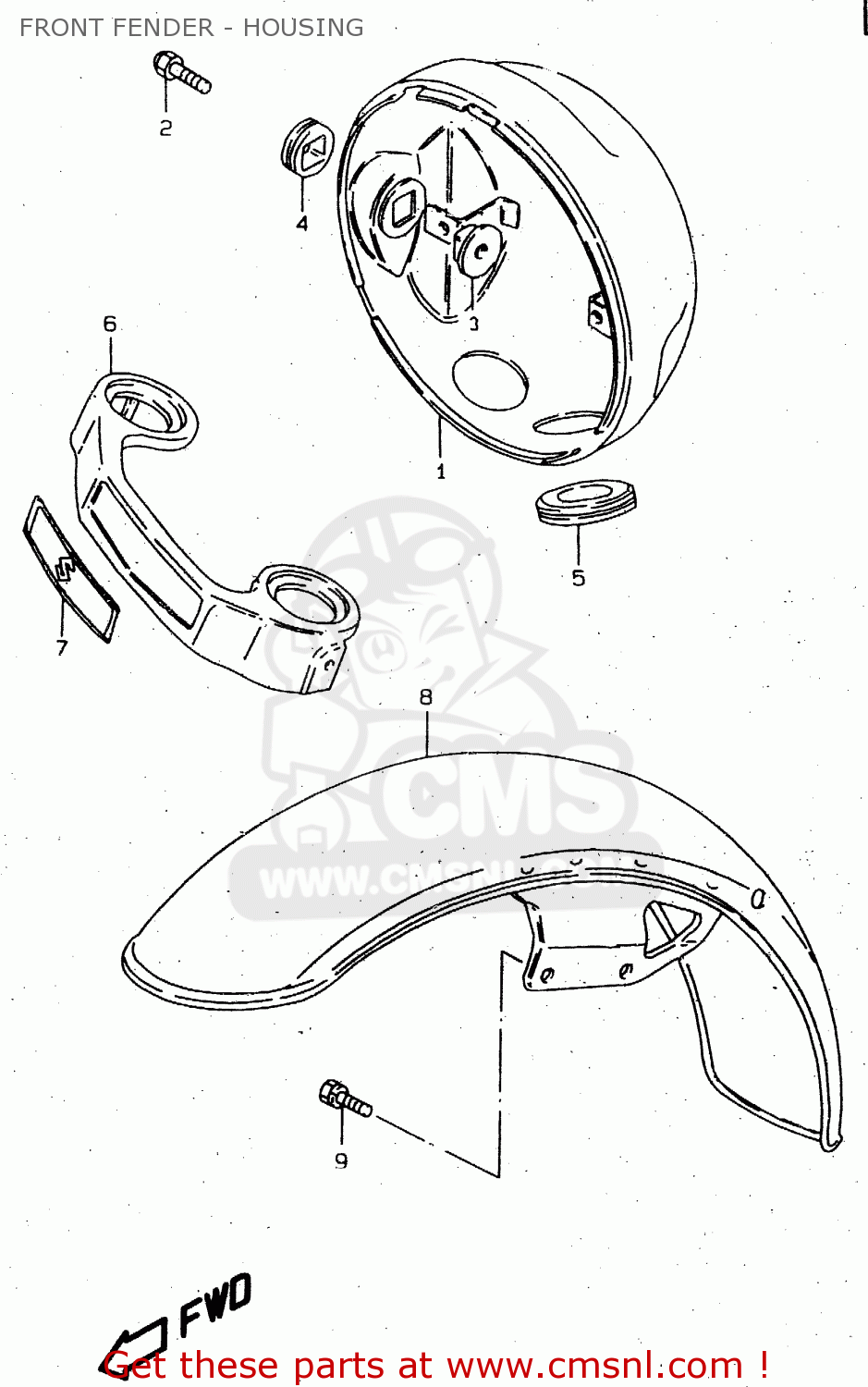

Front fender - housing diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

5181045300
ref: 1

HOUSING,HEADLAMP

€ 46.50

0126408207
ref: 2

BOLT

€ 3.00

5182136200
ref: 3

SPACER,HEADLAMP HOUSING

€ 7.50

5182727302
ref: 4

CUSHION,HEADLAMP HOUSING

€ 3.00

5184531031
ref: 5

GROMMET,HEADLAMP HOUSING

€ 4.00

5187138301
ref: 6

COVER,FR FORK

€ 35.00

6821138300
ref: 7

EMBLEM,FR FORK COVER

€ 13.50

5311038311
ref: 8

FENDER,FR

€ 295.50

0157008163
ref: 9

BOLT, UPPER

€ 2.00
