CRANKCASE

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

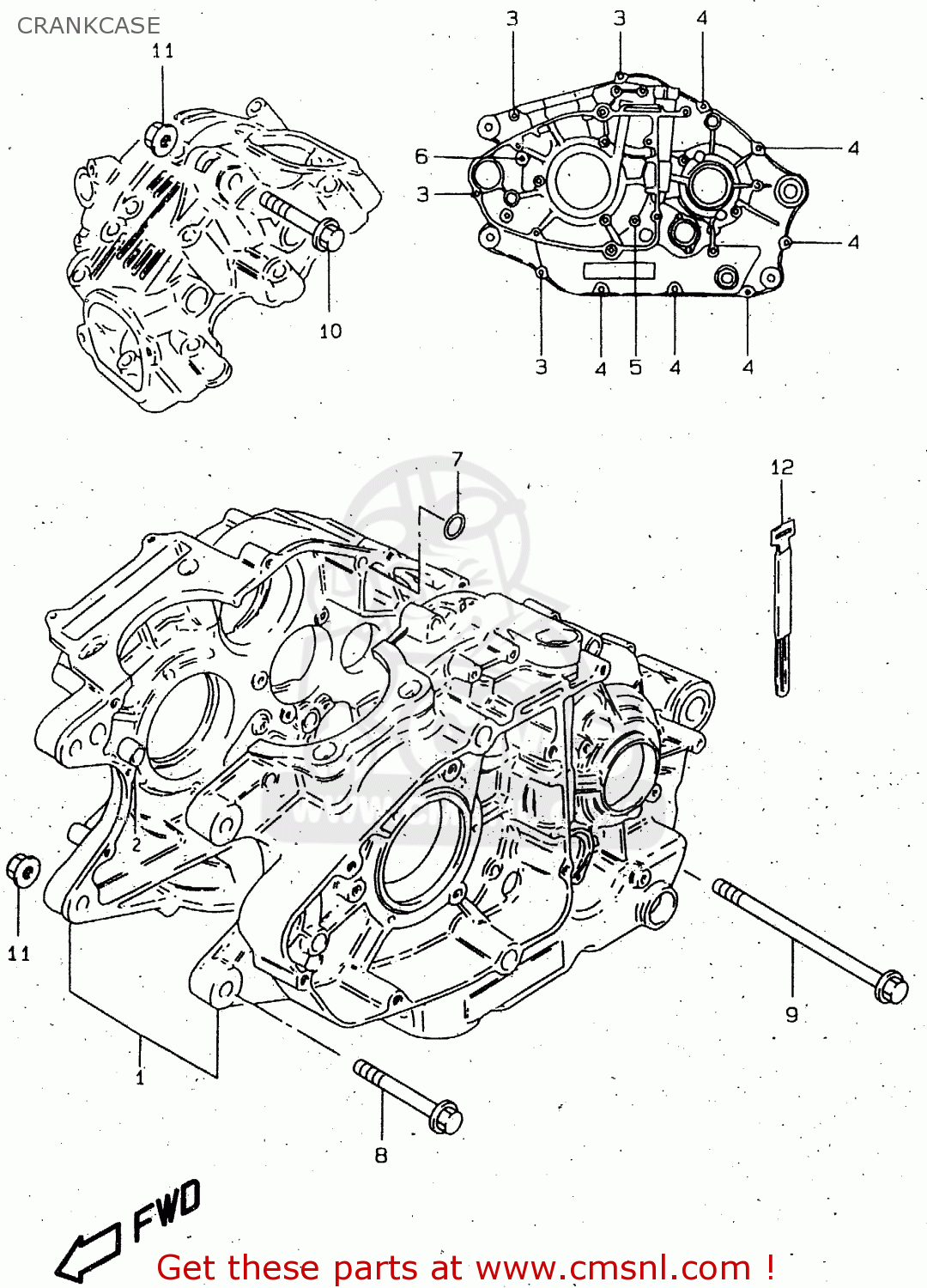

Crankcase diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

1130038862
ref: 1
~F.NO.NJ41A-133491,

CRANKCASE SET

€ 622.50

1130038863
ref: 1
F.NO.NJ41A-133492~,

CRANKCASE SET

€ 622.50

0421113189
ref: 2

PIN

€ 2.50

0154706357
ref: 3

BOLT

€ 2.50

0154706457
ref: 4

BOLT

€ 2.50

0154706553
ref: 5

BOLT

€ 3.00

0154706603
ref: 6

BOLT

€ 3.50

0928009005
ref: 7
~F.NO.NJ41A-133491,

O RING(D:1.9,ID:8.6)

€ 4.00

0928010016
ref: 7
F.NO.NJ41A-133492~,

O RING(D:1.9,ID:9.8)

€ 3.50

0910308037
ref: 8

BOLT(8X67)

€ 6.50

0910308070
ref: 9

BOLT(8X100)

€ 5.00

0910308081
ref: 10

BOLT(8X50)

€ 3.50

0831931087
ref: 11

NUT

€ 2.50

1382738300
ref: 12

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50
