HANDLE LEVER

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

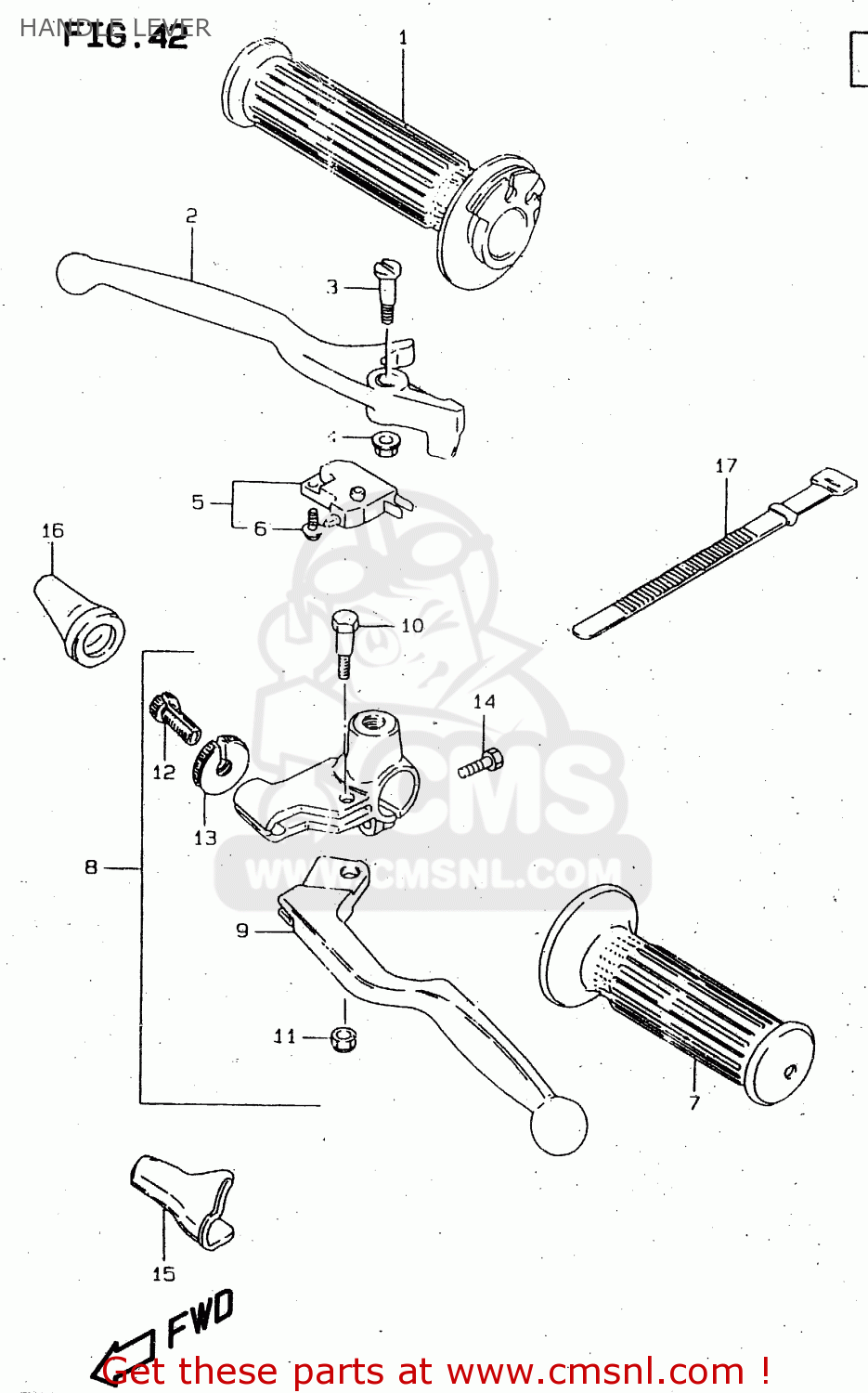

Handle lever diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

5711045000
ref: 1

GRIP,THROTTLE

€ 25.50

5742001D00
ref: 2

LEVER,BRAKE

€ 25.00

5743117C00
ref: 3

BOLT,LEVER PIVOT

€ 8.00

0831610063
ref: 4

NUT

€ 2.50

5746017C00
ref: 5

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 6

SCREW

€ 1.50

5721145020
ref: 7

GRIP,L

€ 9.00

5750037200
ref: 8

LEVER ASSY,CLUTCH

€ 49.50

5762049101
ref: 9

LEVER,CLUTCH

€ 28.50

5743149110
ref: 10

BOLT,LEVER PIVOT

€ 5.00

0831921068
ref: 11

NUT 6MM

€ 2.00

5744111010
ref: 12

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 13

NUT,CABLE ADJUSTER

€ 4.00

5745149100
ref: 14

BOLT,CLUTCH LEVER HOLDER

€ 3.00

5766131000
ref: 15

COVER,CLUTCH LEVER

€ 5.50

5827331000
ref: 16

BOOT,CLUTCH CABLE

€ 2.50

0940712402
ref: 17

CLAMP(L:120)

€ 3.00

HANDLE LEVER

all assemblies
