TURN SIGNAL LAMP (E25,E39)

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

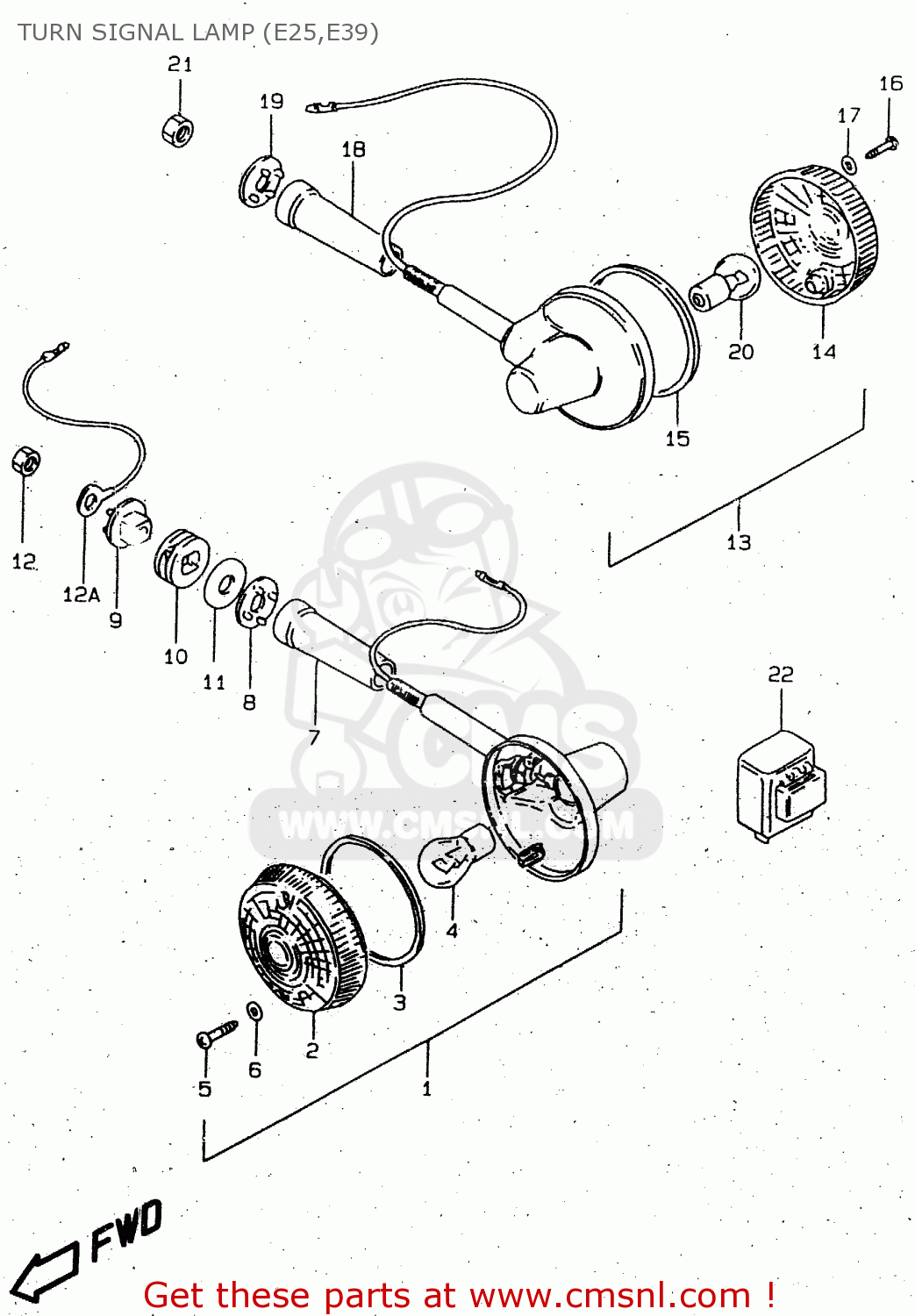

Turn signal lamp (e25,e39) diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

TURN SIGNAL LAMP (E25,E39) GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
TURN SIGNAL LAMP (E25,E39) GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
TURN SIGNAL LAMP (E25,E39) GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37
prices are in EUR
ref
part #
description
quantity
1
3560347261
ref: 1
LAMP ASSY,TURNSIGNAL
3560347261
€ 65.50
2
3565239280
ref: 2
LENS
3565239280
€ 9.00
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0947112045
ref: 4
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
3561747230
ref: 7
COVER,STAY
3561747230
€ 10.00
8
3566847290
ref: 8
CUSHION
3566847290
€ 3.00
9
3569532401
ref: 9
SPACER
3569532401
€ 4.50
10
3569032200
ref: 10
CUSHION
3569032200
€ 38.50
11
0916010006
ref: 11
MODEL T
WASHER (10.5X30X2.3)
0916010006
€ 2.50
11
0916010501
ref: 11
MODEL W/X
WASHER(10.5X30X2.3)
0916010501
€ 2.50
12
0831000107
ref: 12
NUT
0831000107
€ 2.50
12A
3666033000
ref: 12A
LEAD WIRE,EARTH
3666033000
€ 5.00
13
3560347281999
ref: 13
LAMP ASSY,RR TURNSIGNAL
3560347281999
€ 60.00
14
3565239280
ref: 14
LENS
3565239280
€ 9.00
15
3561328620
ref: 15
GASKET (NAS)
3561328620
€ 7.00
16
0321104208
ref: 16
SCREW
0321104208
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
3561747230
ref: 18
COVER,STAY
3561747230
€ 10.00
19
3566847290
ref: 19
CUSHION
3566847290
€ 3.00
20
0947112045
ref: 20
BULB(12V21W)
0947112045
€ 5.00
21
0831000107
ref: 21
NUT
0831000107
€ 2.50
22
3861031X50
ref: 22
RELAY ASSY,TURNSIGNAL
3861031X50
€ 54.50
