REAR COMBINATION LAMP (E25,E39)

GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

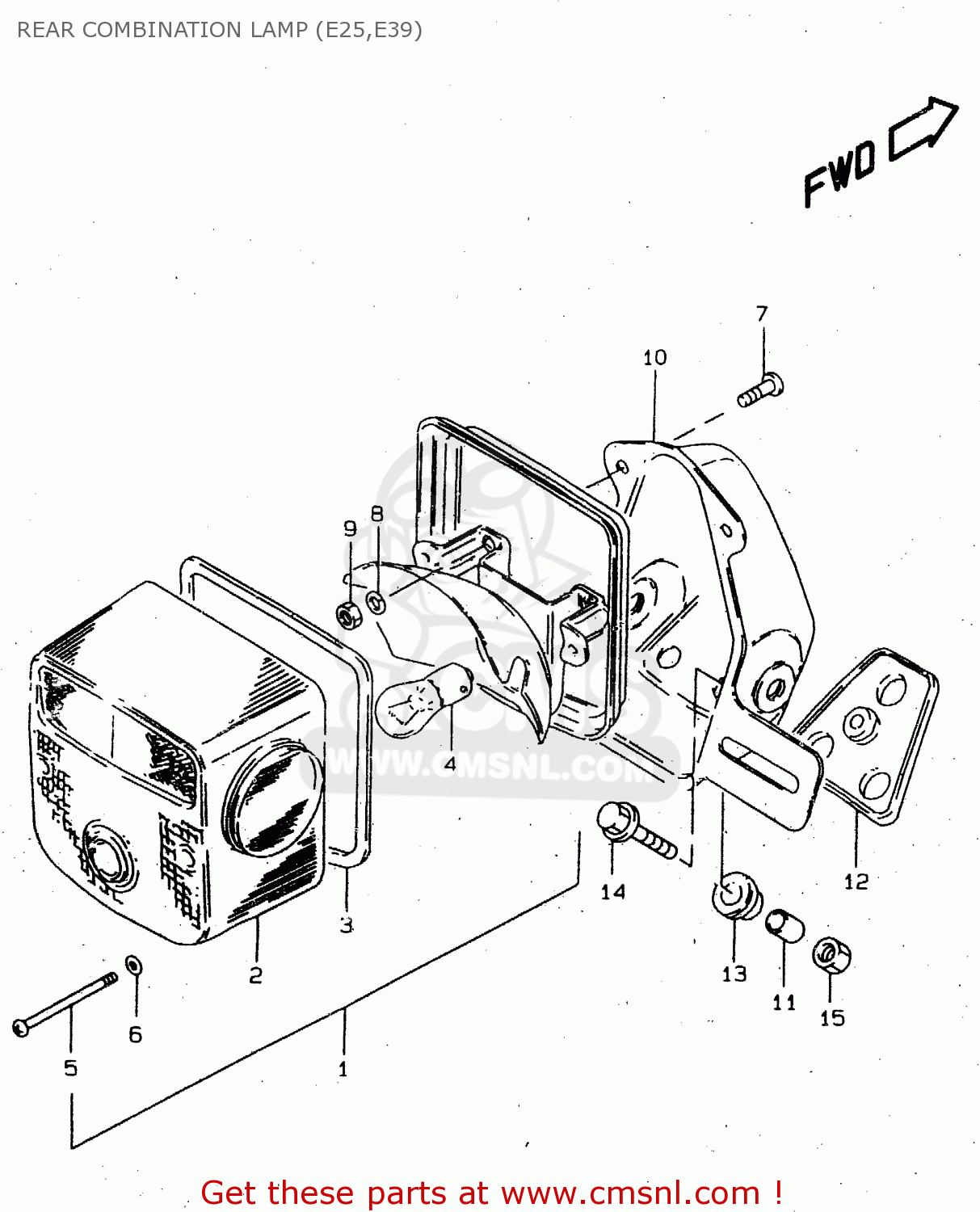

Rear combination lamp (e25,e39) diagram GN250 1996 (T) (E02 E04 E22 E24 E25 E34 E39) / P37

prices are in EUR

ref

part #

description

quantity

3572038361
ref: 1

LAMP UNIT,RR COMBNATION

€ 136.00

3571238361
ref: 2

LENS

€ 51.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211206167
ref: 7

SCREW

€ 2.50

0832101067
ref: 8

WASHER,LOCK

€ 2.50

0831000067
ref: 9

NUT

€ 2.50

3573038380
ref: 10

BRACKET UNIT,TAIL LAMP

€ 51.00

3576626470
ref: 11

SPACER

€ 2.00

3576526470
ref: 12

CUSHION

€ 10.00

3576426470
ref: 13

CUSHION

€ 2.50

0911606167
ref: 14

BOLT(6X20)

€ 2.00

0831000063
ref: 15

NUT 6MM

€ 2.00
